EHB2100L - 100Amp Circuit Breaker

EHB2100L - 100Amp Circuit Breaker

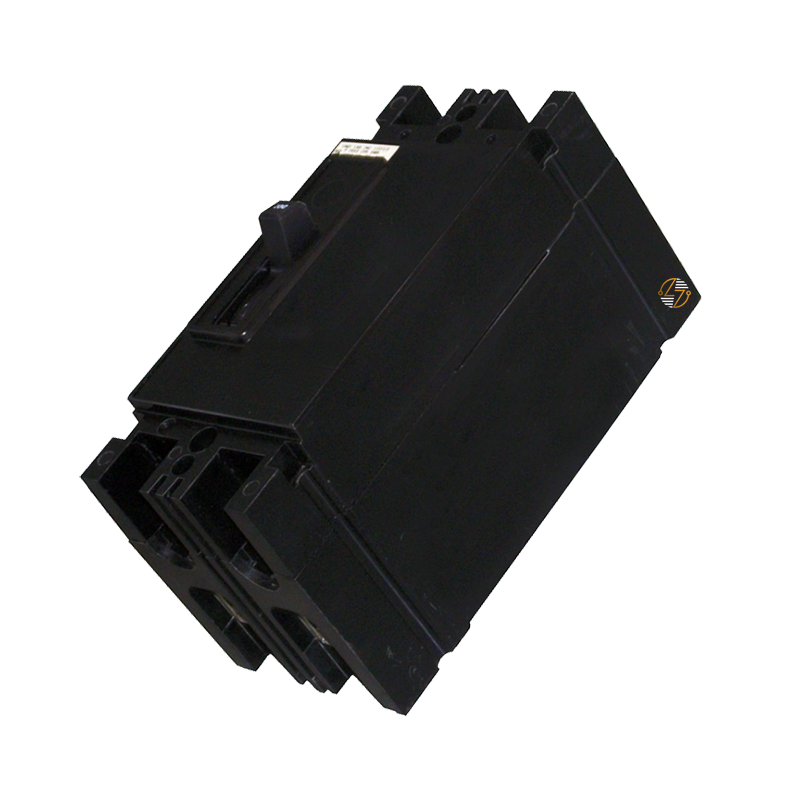

Finding the right replacement circuit breaker for an existing electrical system is about more than matching the amperage. The EHB2100L is a 2-pole, 100 Amp Type EHB thermal-magnetic circuit breaker designed to provide the proper form, fit, and function as a replacement for compatible Type EHB panelboards manufactured before 1989. If you're maintaining or repairing an existing electrical distribution system, using the correct breaker helps preserve the original panel configuration while delivering the circuit protection the equipment was designed to provide.

This breaker features a thermal-magnetic trip mechanism, combining thermal protection for overload conditions with magnetic protection that reacts quickly to short circuits. Whether you're replacing a failed breaker during routine maintenance or servicing an older facility, this breaker offers the compatibility and ratings needed for the job.

Key Features and Benefits

• 100 Amp, 2-pole Type EHB thermal-magnetic circuit breaker
• Designed as a form, fit, and functional replacement for compatible applications
• Compatible with Type EHB panelboards manufactured before 1989
• Thermal-magnetic protection helps guard against overloads and short circuits
• Non-interchangeable trip unit maintains original factory trip characteristics
• Rated for operation in 40°C (104°F) ambient environments
• Includes both line and load terminals
• Built to last for continued service in compatible legacy electrical systems


Technical Specifications

• Part Number: EHB2100L

• Type: EHB

• Product Type: Thermal-Magnetic Circuit Breaker

• Poles: 2

• Amperage: 100 Amps

• Interrupting Rating: 14kA @ 480VAC

• Trip Unit: Non-Interchangeable

• Temperature Rating: 40°C (104°F)

• Included Terminals: Line and Load

• Compatible Panels: Type EHB panelboards manufactured before 1989

• Dimensions:
  • Width: 2.75 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

• Thermal-magnetic molded case circuit breaker
• 14kA interrupting rating at 480VAC
• Rated for operation in 40°C (104°F) ambient conditions
• Includes factory-configured, non-interchangeable trip unit
• Supplied with line and load terminals
• Designed for use in compatible Type EHB electrical systems
• Form, fit, and functional replacement for compatible installations
• Always verify panel compatibility, amperage, voltage, interrupting rating, and pole configuration before installation
• Installation should be completed in accordance with applicable electrical codes and manufacturer recommendations


Where It Works Best

The EHB2100L is an excellent choice for maintaining existing commercial, industrial, and institutional electrical systems that utilize compatible Type EHB panelboards manufactured before 1989. It's commonly used during routine maintenance, equipment repairs, and replacement projects where preserving the original panel design is essential. By matching the original specifications, this breaker helps keep legacy electrical systems operating safely and efficiently without requiring modifications to the existing equipment.
