EHB2090L - 90Amp Circuit Breaker

EHB2090L - 90Amp Circuit Breaker

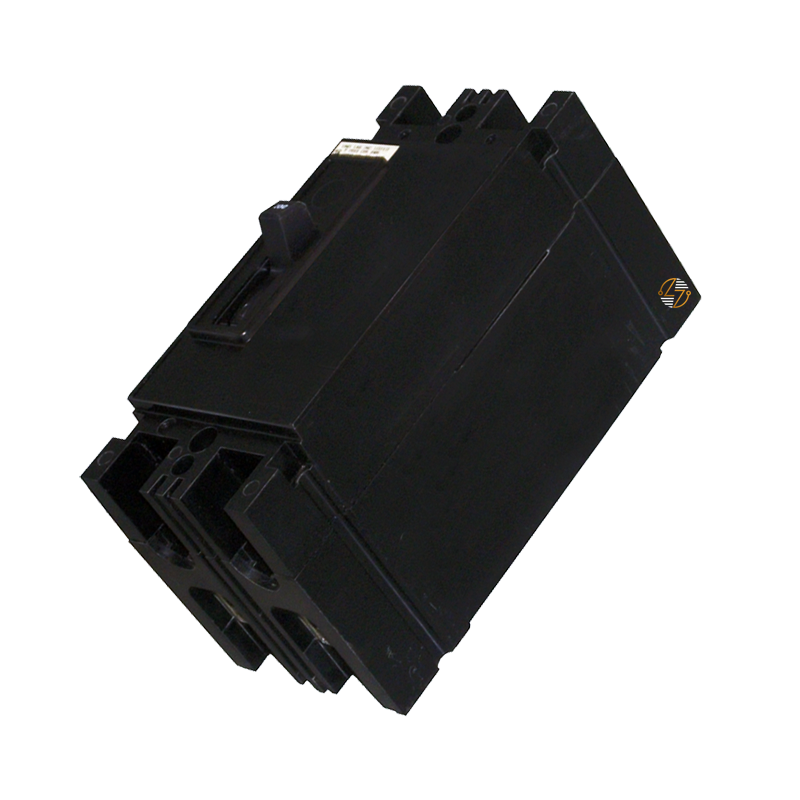

Finding the right replacement circuit breaker is about more than matching the amperage. It also means choosing a breaker that fits your existing equipment and maintains your system's original electrical design. The EHB2090L is a 2-pole, 90 Amp Type EHB thermal-magnetic circuit breaker designed specifically as a form, fit, and functional replacement for compatible Type EHB panelboards manufactured before 1989. Its thermal-magnetic trip mechanism helps protect electrical systems by responding to both sustained overloads and short-circuit conditions, making it a dependable choice for maintaining existing commercial and industrial installations.

Built to last and engineered for legacy electrical systems, the EHB2090L helps keep existing panels operating as originally designed. Before installation, always verify the breaker type, amperage, voltage, interrupting rating, and panel compatibility to ensure it matches your specific application.

Key Features and Benefits

• 90 Amp, 2-pole Type EHB thermal-magnetic circuit breaker
• Designed as a form, fit, and functional replacement for compatible legacy electrical systems
• Compatible with Type EHB panelboards manufactured before 1989
• Thermal-magnetic trip mechanism provides overload and short-circuit protection
• Non-interchangeable trip unit maintains the original factory trip characteristics
• Rated for operation in 40°C (104°F) ambient environments
• Includes both line and load terminals
• Built to last for continued service in compatible electrical installations


Technical Specifications

• Part Number: EHB2090L

• Type: EHB

• Product Type: Thermal-Magnetic Circuit Breaker

• Poles: 2

• Amperage: 90 Amps

• Interrupting Rating: 14kA @ 480VAC

• Trip Unit: Non-Interchangeable

• Temperature Rating: 40°C (104°F)

• Line Terminals: Included

• Load Terminals: Included

• Compatible Panelboards: Type EHB panels manufactured before 1989

• Dimensions:
  • Width: 2.75 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

• Thermal-magnetic molded case circuit breaker
• Rated 14kA at 480VAC
• Designed for operation in 40°C (104°F) ambient conditions
• Includes both line and load terminals
• Intended for use in compatible Type EHB electrical equipment
• Designed for Type EHB panelboards manufactured before 1989
• Form, fit, and functional replacement for compatible installations
• Verify breaker type, amperage, voltage, interrupting rating, pole configuration, and panel compatibility before installation
• Install in accordance with applicable electrical codes and manufacturer recommendations


Where It Works Best

The EHB2090L is well suited for maintaining commercial, industrial, and institutional electrical systems that continue to use compatible Type EHB panelboards manufactured before 1989. It's commonly selected for routine maintenance, equipment repairs, and panel restoration projects where keeping the original equipment configuration is important. Because it's designed as a form-, fit-, and function-replacement, the EHB2090L fits seamlessly into compatible legacy systems without requiring changes to the existing panel.
