EHB2090 - 90Amp Circuit Breaker

EHB2090 - 90Amp Circuit Breaker

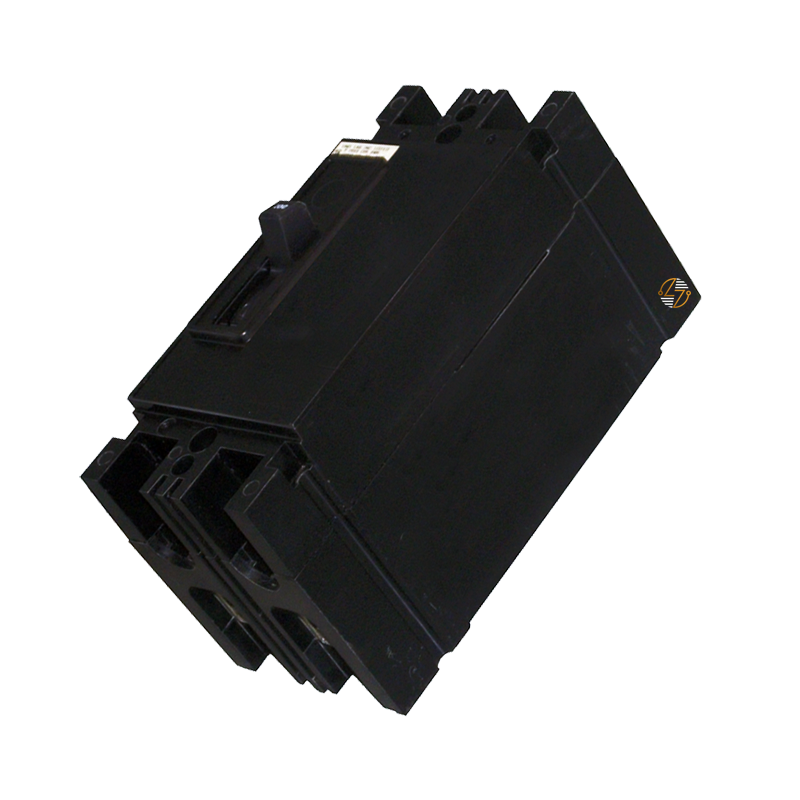

If you're maintaining a legacy electrical system, finding a breaker that matches the original equipment can save time and help keep your project moving. The EHB2090 is a 2-pole, 90 Amp Type EHB thermal-magnetic circuit breaker made for use in compatible Type EHB panelboards manufactured before 1989. Rather than changing your existing setup, this breaker is intended as a form, fit, and functional replacement, allowing you to maintain the original panel configuration.

Key Features and Benefits

• 90 Amp, 2-pole Type EHB thermal-magnetic circuit breaker
• Designed as a form, fit, and functional replacement for compatible equipment
• Compatible with Type EHB panelboards manufactured before 1989
• Thermal-magnetic trip mechanism provides overload and short-circuit protection
• Non-interchangeable trip unit maintains original factory trip characteristics
• Rated for operation in 40°C (104°F) ambient environments
• Includes load terminals
• Built to last for continued use in compatible legacy electrical systems


Technical Specifications

• Part Number: EHB2090

• Type: EHB

• Product Type: Thermal-Magnetic Circuit Breaker

• Poles: 2

• Amperage: 90 Amps

• Interrupting Rating: 14kA @ 480VAC

• Trip Unit: Non-Interchangeable

• Temperature Rating: 40°C (104°F)

• Load Terminals: Included

• Compatible Panels: Manufactured before 1989

• Dimensions:
  • Width: 2.75 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

• Thermal-magnetic molded case circuit breaker
• Rated 14kA at 480VAC
• Designed for operation in 40°C (104°F) ambient conditions
• Includes load terminals
• Intended for use in compatible Type EHB electrical equipment
• Designed for Type EHB panelboards manufactured before 1989
• Verify breaker type, amperage, voltage, interrupting rating, pole configuration, and panel compatibility before installation
• Install in accordance with applicable electrical codes and manufacturer recommendations


Where It Works Best

The EHB2090 is commonly used in commercial, industrial, and institutional facilities where compatible Type EHB panelboards manufactured before 1989 are still in service. It's a solid choice for routine maintenance, repairs, or replacing a worn breaker while preserving the original equipment configuration. Because it's designed as a form, fit, and function replacement, it allows existing electrical systems to continue operating with the ratings and physical characteristics they were originally designed for.
