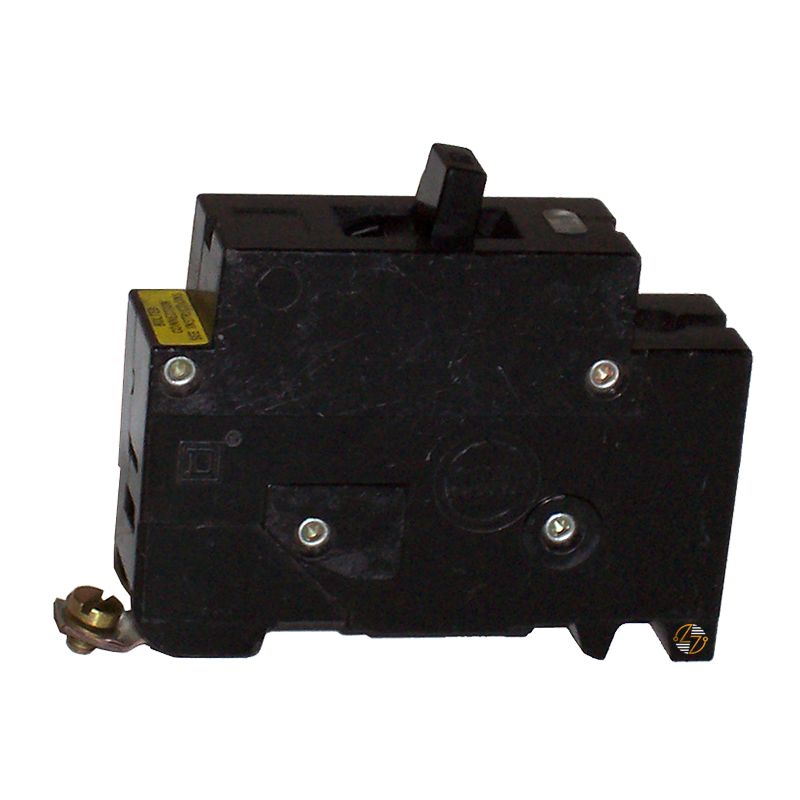

EHB14030 - 30Amp Circuit Breaker

EHB14030 - 30Amp Circuit Breaker

When you need a compatible replacement circuit breaker for an existing electrical distribution system, the EHB14030 provides the form, fit, and function required for Type EHB-4 applications. This 1-pole, 30 Amp bolt-on circuit breaker is designed for use in compatible panelboards and switchboards, helping protect branch circuits against overloads and short circuits while maintaining the original equipment configuration.

Its bolt-on mounting design ensures a secure connection to compatible electrical equipment, making it a practical choice for maintenance, repair, and replacement projects in commercial, industrial, and institutional facilities.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Type EHB-4 applications
• 30 Amp rating for dependable branch circuit protection
• Single-pole molded case circuit breaker
• Bolt-on mounting provides a secure installation in compatible equipment
• Rated 14kA at 277VAC and 65kA at 120VAC
• Compact design fits the original equipment layout
• Built to last for continued use in compatible legacy electrical systems
• Well-suited for maintenance, repair, and replacement applications


Technical Specifications

• Part Number: EHB14030

• Type: EHB-4

• Product Type: Bolt-On Circuit Breaker

• Poles: 1

• Amperage: 30 Amps

• A.I.C. Rating: 14kA @ 277VAC; 65kA @ 120VAC

• Mounting Style: Bolt-On

• Dimensions:
  • Width: 1.00 inches
  • Height: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 1.75 lbs.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Bolt-on mounting for compatible electrical distribution equipment
• Rated for 14kA at 277VAC and 65kA at 120VAC
• Designed for compatible Type EHB-4 electrical systems
• Install in accordance with applicable electrical codes and the original equipment manufacturer's requirements
• Always verify part number, electrical ratings, mounting style, and equipment compatibility before installation


Where It Works Best

The EHB14030 is commonly used in commercial, industrial, and institutional electrical systems where a compatible Type EHB-4 bolt-on circuit breaker is required. It is intended for compatible panelboards, switchboards, and branch distribution equipment that require a 1-pole, 30 Amp breaker with the specified interrupting ratings.
