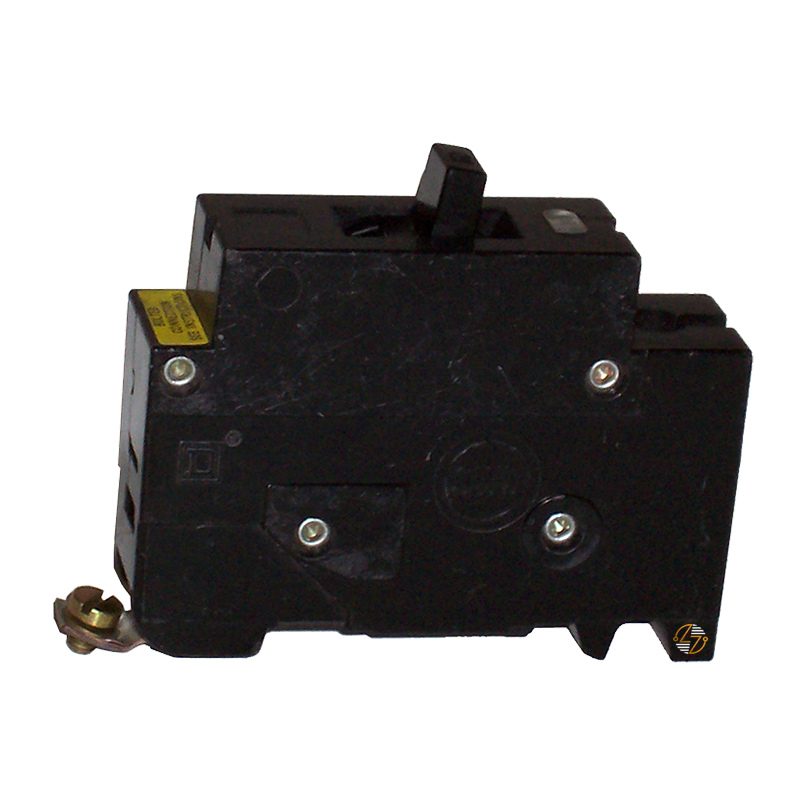

EHB14015 - 15 Amp Circuit Breaker

EHB14015 - 15 Amp Circuit Breaker

When you need a compatible replacement for an existing Type EHB-4 circuit breaker, the EHB14015 offers the form, fit, and function required to keep your electrical distribution system configured as originally designed. This 1-pole, 15 Amp bolt-on circuit breaker is intended for use in compatible panelboards and switchboards, helping protect branch circuits from overloads and short circuits while matching the mounting style and electrical ratings of the original device.

Whether you're replacing a breaker during routine maintenance, restoring equipment after a fault, or servicing an existing commercial or industrial electrical system, this breaker is built to last and helps you maintain the original design of your electrical distribution equipment without unnecessary modifications.

Key Features and Benefits

• Designed as a form, fit, and functional replacement for compatible Type EHB-4 electrical equipment
• 15 Amp current rating for branch circuit protection
• Single-pole molded case circuit breaker
• Bolt-on mounting provides a secure connection in compatible panelboards and switchboards
• Interrupting capacity: 14kA at 277VAC and 65kA at 120VAC
• Compact footprint helps maintain the original equipment layout
• Built to last for continued service in compatible legacy electrical systems


Technical Specifications

• Part Number: EHB14015

• Type: EHB-4

• Product Type: Bolt-On Circuit Breaker

• Poles: 1

• Current Rating: 15 Amps

• A.I.C. Rating: 14kA @ 277VAC; 65kA @ 120VAC

• Mounting Style: Bolt-On

• Dimensions:
  • Width: 1.00 inches
  • Height: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 1.75 lbs.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Bolt-on design for installation in compatible electrical distribution equipment
• Rated for 14kA at 277VAC and 65kA at 120VAC
• Intended as a replacement for compatible Type EHB-4 applications
• Installation should be completed in accordance with applicable electrical codes and the original equipment manufacturer's requirements
• Always verify part number, electrical ratings, and equipment compatibility before installation


Where It Works Best

The EHB14015 is a practical choice for maintaining commercial, industrial, and institutional electrical systems that use Type EHB-4 bolt-on circuit breakers. It's commonly installed in compatible panelboards, switchboards, and branch distribution equipment where a 1-pole, 15 Amp breaker with the specified interrupting ratings is required.
