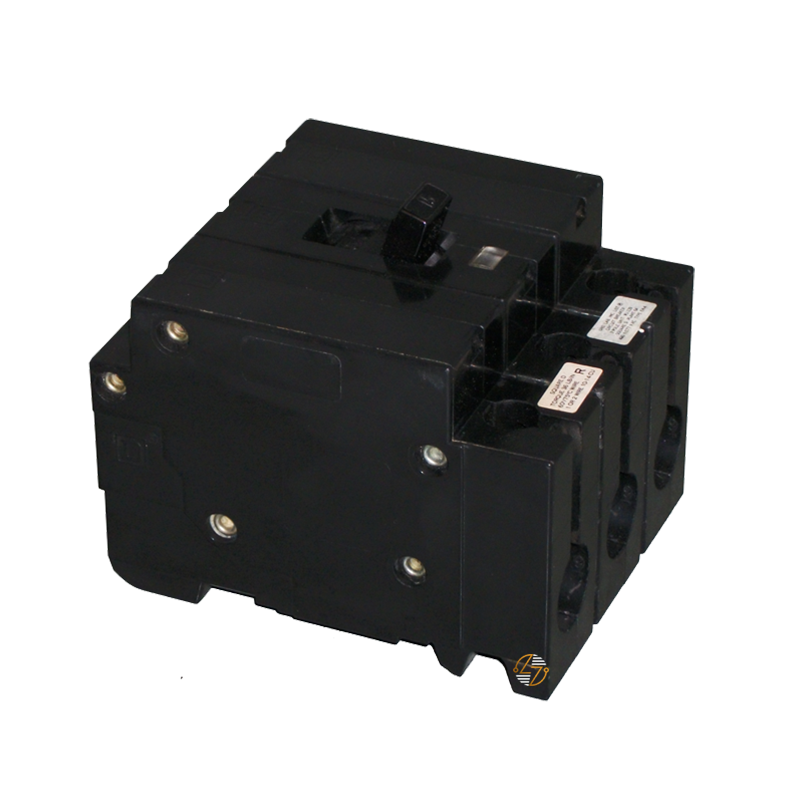

EH34030 - 30 Amp Circuit Breaker

EH34030 - 30 Amp Circuit Breaker

Selecting the correct replacement circuit breaker means more than matching the amperage—it also requires compatibility with your existing electrical equipment. The EH34030 is a 3-pole, 30 Amp plug-on thermal-magnetic circuit breaker designed for use in compatible Type EH-4 electrical distribution systems. Whether you're replacing an existing breaker during scheduled maintenance or restoring service after an electrical fault, the EH34030 provides the form, fit, and function required for compatible legacy installations without altering the equipment's original design.

Its thermal-magnetic trip mechanism responds to both sustained overload conditions and instantaneous short circuits, helping protect branch circuits and connected equipment from electrical damage.

Key Features and Benefits

• Part Number: EH34030
• 3-pole thermal-magnetic circuit breaker
• 30 Amp current rating
• Type EH-4 configuration
• Plug-on mounting design for compatible panelboards
• Thermal-magnetic trip mechanism helps provide protection against overloads and short circuits
• Designed as a form, fit, and functional replacement for compatible legacy electrical systems
• Helps maintain the original electrical design of existing equipment
• Built to last for dependable operation in properly maintained electrical systems


Technical Specifications

• Part Number: EH34030

• Type: EH-4

• Additional Notes: Plug-On Thermal-Magnetic Circuit Breaker

• Poles: 3

• Amperage: 30 Amps

• Interrupting Capacity (A.I.C.):
  • 14kA @ 480VAC
  • 65kA @ 240VAC
• Dimensions:
  • Width: 3.00 in.
  • Height: 3.50 in.
  • Depth: 2.63 in.
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• The EH34030 is a molded case thermal-magnetic circuit breaker intended for installation in compatible electrical distribution equipment. Installation should be performed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's recommendations.
• Before replacing an existing breaker, verify the part number, breaker type, mounting method, amperage, voltage rating, interrupting capacity, pole configuration, and physical dimensions to help ensure compatibility with the existing electrical system.


Where It Works Best

The EH34030 is commonly used in commercial, industrial, and institutional facilities where compatible Type EH-4 plug-on circuit breakers are installed. It is well suited for maintaining existing panelboards and electrical distribution systems that require a 3-pole, 30 Amp breaker with the specified interrupting ratings.

This breaker is an appropriate choice for routine maintenance, replacement of an existing breaker, or restoring equipment after an electrical fault in compatible systems.
