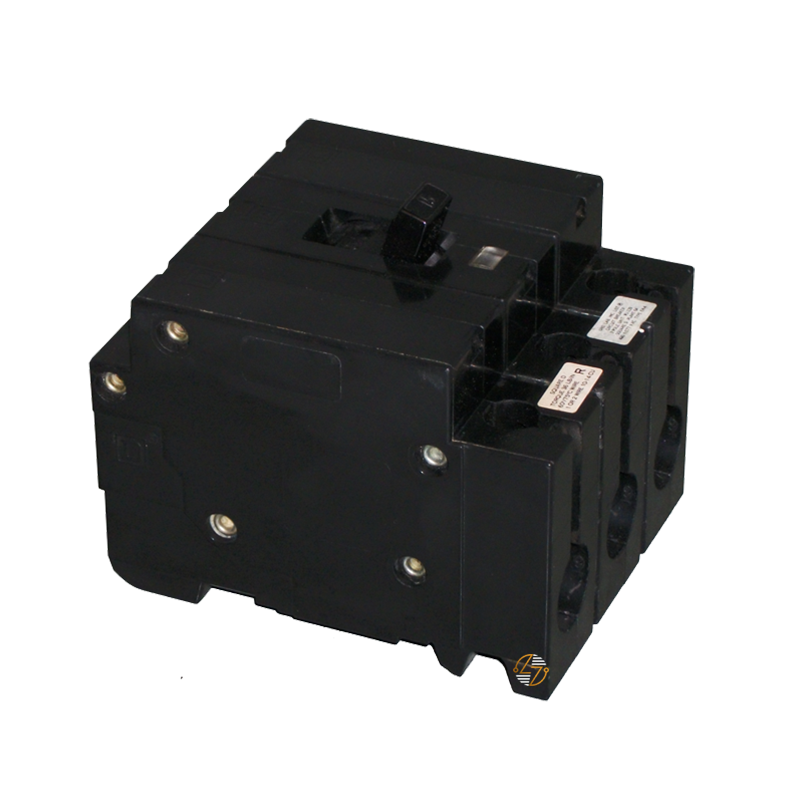

EH34025 - 25 Amp Circuit Breaker

EH34025 - 25 Amp Circuit Breaker

The EH34025 25 Amp Circuit Breaker is designed to keep electrical systems protected and running the way they should. It’s a 3-pole breaker on the EH-4 frame with a plug-on thermal magnetic trip system that reacts fast if there’s an overload or short circuit. Easy to install, dependable once in place, and strong enough to handle demanding setups, it’s a go-to choice for many commercial and industrial jobs.

Key Features and Benefits

• Handles heavy fault currents: Rated 14 kAIC at 480 VAC and 65 kAIC at 240 VAC, so it can safely interrupt large surges.
• Fast trip response: Thermal magnetic action cuts power right away when there’s trouble, helping prevent damage and downtime.
• Made for durability: Built on the EH-4 frame, this breaker holds up well in high-use or high-demand environments.
• Simple installation: Plug-on style design means it fits easily into Series 3 and Series E1 panelboards.


Technical Specifications

• Poles: 3

• Amperage: 25 A

• Interrupting Ratings:
  • 14 kAIC at 480 VAC
  • 65 kAIC at 240 VAC
• Frame Type: EH-4

• Trip Mechanism: Plug-On Thermal Magnetic

• Dimensions:
  • Width: 3.00 inches
  • Length: 3.50 inches
  • Depth: 2.63 inches

Material Compliance and Certifications

• UL Listed: Approved for use with high-intensity discharge lighting systems. Each breaker is tested against strict industry standards, so you know it’s safe and ready to perform.


Suitability

• This model works well in industrial facilities, commercial buildings, and critical infrastructure projects where uptime and safety matter most. It’s designed for NEHB panelboards and is just as useful for replacing an old breaker as it is for going into a brand-new setup.
