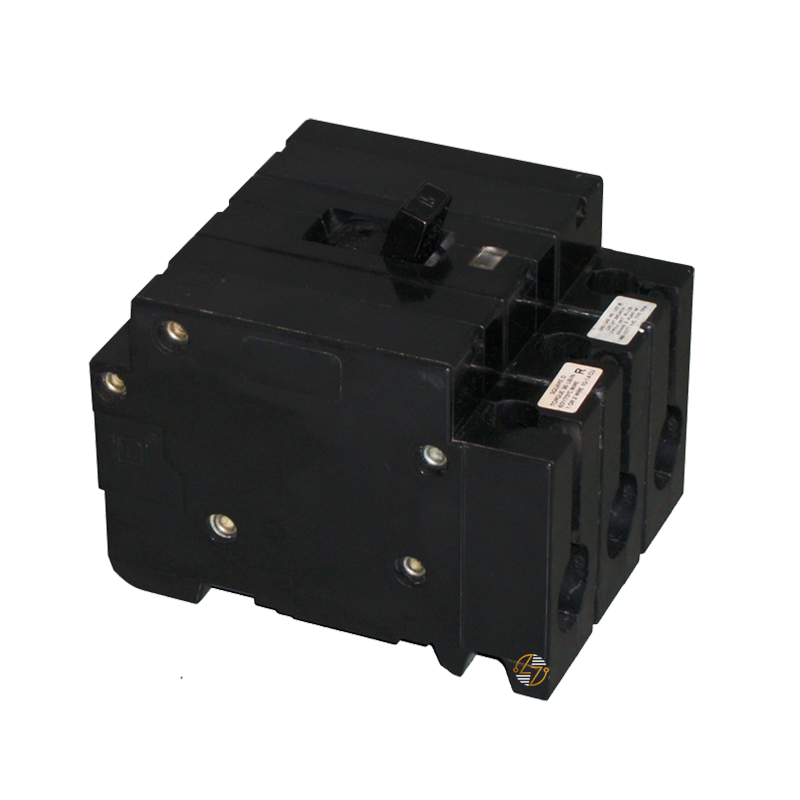

EH34020 - 20 Amp Circuit Breaker

EH34020 - 20 Amp Circuit Breaker

When it's time to replace a circuit breaker in an existing electrical system, getting the correct fit matters just as much as matching the electrical ratings. The EH34020 is a 3-pole, 20 Amp plug-on thermal-magnetic circuit breaker designed for use in compatible Type EH-4 panelboards and electrical distribution equipment. Whether you're maintaining a commercial facility, industrial operation, or institutional building, this breaker provides the form, fit, and function needed to help keep your existing system operating as intended.

Its thermal-magnetic trip design responds to both prolonged overloads and sudden short circuits, helping protect branch circuits and connected equipment from electrical faults.

Key Features and Benefits

• Part Number: EH34020
• 3-pole thermal-magnetic circuit breaker
• 20 Amp current rating
• Type EH-4 configuration
• Plug-on mounting design for compatible panelboards
• Thermal-magnetic trip mechanism helps protect against overloads and short circuits
• Designed as a form, fit, and functional replacement for compatible legacy electrical systems
• Helps maintain the original electrical design of existing equipment
• Built to last for dependable operation in properly maintained electrical systems


Technical Specifications

• Part Number: EH34020

• Type: EH-4

• Breaker Style: Plug-On Thermal-Magnetic Circuit Breaker

• Poles: 3

• Amperage: 20 Amps

• Interrupting Capacity (A.I.C.):
  • 14kA @ 480VAC
  • 65kA @ 240VAC
• Mounting Style: Plug-On

• Dimensions:
  • Width: 3.00 in.
  • Height: 3.50 in.
  • Depth: 2.63 in.
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• The EH34020 is a molded case thermal-magnetic circuit breaker intended for installation in compatible electrical distribution equipment. Installation should be performed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's recommendations.
• Always confirm the part number, breaker type, mounting method, amperage, voltage rating, interrupting capacity, pole configuration, and physical dimensions before replacing an existing breaker to ensure proper compatibility.


Where It Works Best

The EH34020 is commonly used in commercial, industrial, and institutional facilities where compatible Type EH-4 plug-on circuit breakers are installed. It works well in existing panelboards and electrical distribution systems that require a 3-pole, 20 Amp breaker with the specified interrupting ratings.
