EH24015 - 15 Amp Circuit Breaker

EH24015 - 15 Amp Circuit Breaker

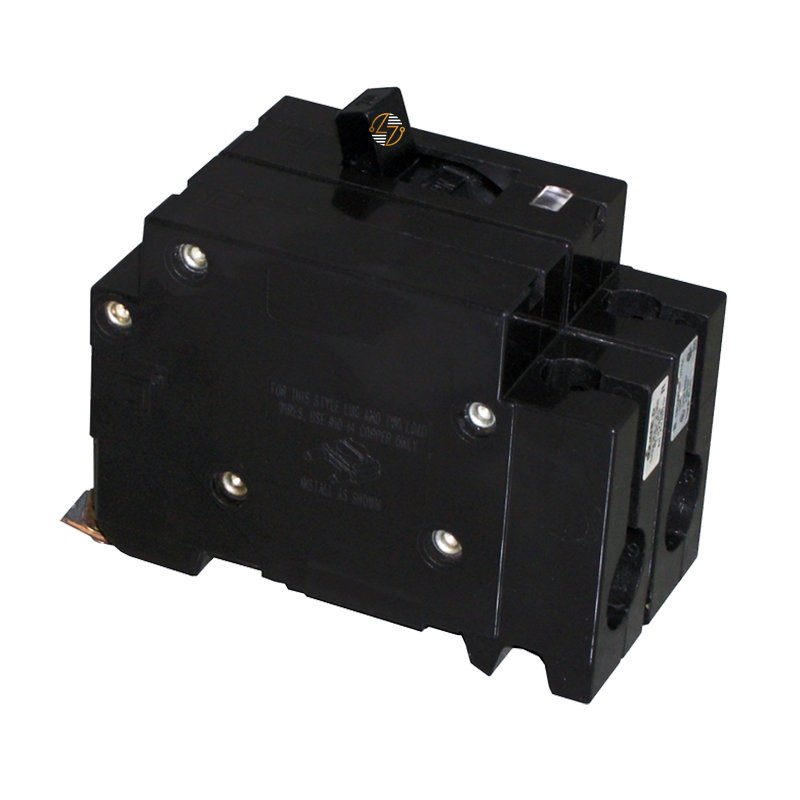

When maintaining an existing electrical system, selecting the right replacement breaker helps keep your equipment operating as originally designed. The EH24015 is a 2-pole, 15-amp plug-on thermal-magnetic circuit breaker designed as a form, fit, and function replacement for compatible Type EH-4 applications. It provides branch-circuit protection by responding to both prolonged overloads and instantaneous short-circuit conditions, making it an important component in preserving the safety and operation of compatible electrical distribution systems.

Whether you're replacing an existing breaker during routine service or restoring a panel after a fault, matching the correct breaker type, pole configuration, and electrical ratings is essential for proper compatibility.

Key Features and Benefits

• 15-amp current rating for compatible branch circuit protection
• Two-pole design for protecting 480VAC circuits
• Plug-on mounting allows for straightforward installation in compatible panelboards
• Thermal magnetic trip mechanism responds to both overload and short-circuit conditions
• 14kA interrupting capacity at 480VAC
• Designed as a form, fit, and functional replacement for compatible Type EH-4 installations
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Part Number: EH24015

• Type: EH-4

• Breaker Style: Plug-On Thermal Magnetic Circuit Breaker

• Poles: 2

• Amperes: 15A

• Voltage Rating: 480VAC

• Interrupting Capacity (A.I.C.): 14kA @ 480VAC

• Dimensions:
  • Width: 2.00 in.
  • Height: 3.50 in.
  • Depth: 2.63 in.
• Approximate Shipping Weight: 2.50 lbs.


Material Compliance and Certifications

• Manufactured for use in compatible electrical distribution equipment.
• Designed to meet applicable industry standards for its intended application.
• Installation should be performed in accordance with the National Electrical Code (NEC), local electrical codes, and the original equipment manufacturer's recommendations.
• Always verify breaker type, pole configuration, amperage, voltage rating, interrupting capacity, and panel compatibility before installation.


Where It Works Best

The EH24015 is well-suited for maintaining compatible commercial, industrial, and institutional electrical systems that require a 2-pole, 15-amp Type EH-4 plug-on thermal-magnetic circuit breaker. It is commonly used to protect 480VAC branch circuits serving equipment such as lighting systems, motor loads, control panels, and other electrical devices operating within its rated capacity. Before installation, confirm that the breaker's pole configuration, amperage, voltage rating, interrupting capacity, mounting style, and Type EH-4 designation match your existing equipment to ensure proper compatibility and a correct form, fit, and function as a replacement.
