EH14030 - 30 Amp Circuit Breaker

EH14030 - 30 Amp Circuit Breaker

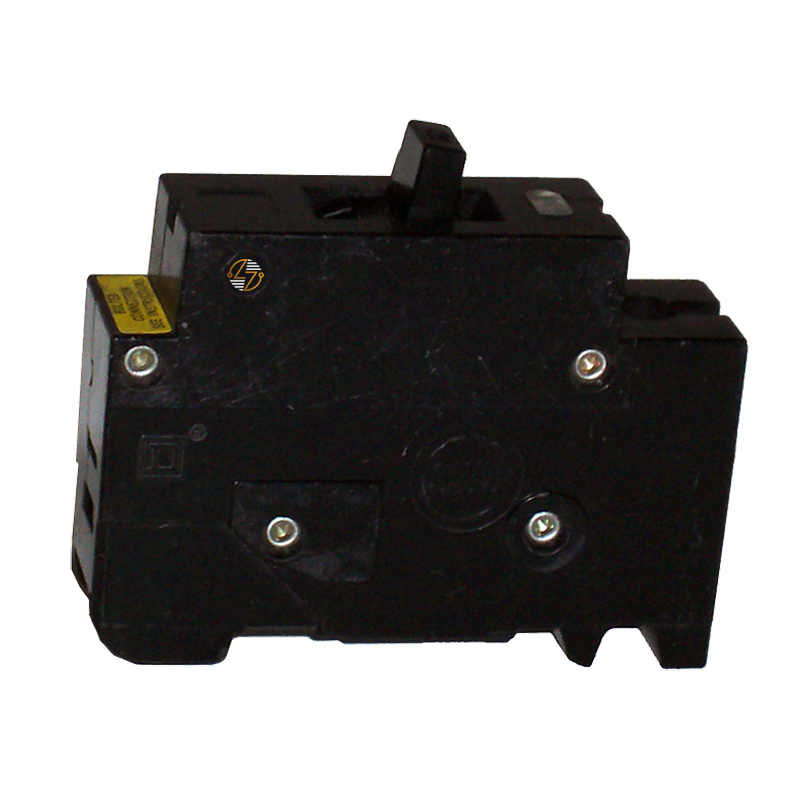

Finding the right replacement circuit breaker is about more than matching the amperage—it’s about maintaining compatibility with your existing electrical system. The EH14030 is a 1-pole, 30-amp plug-on thermal-magnetic circuit breaker designed as a form, fit, and function replacement for compatible Type EH-4 panelboards. It helps protect branch circuits by responding to both prolonged overloads and sudden short-circuit conditions, providing the protection your electrical system was originally designed to provide.

With a 14 kA interrupting capacity at 277 VAC, the EH14030 is intended for use in compatible commercial, industrial, and institutional electrical systems where these ratings are required. Its plug-on design makes installation straightforward in compatible equipment, helping simplify routine maintenance and repairs. Whether you're replacing an existing breaker during scheduled service or restoring a system to proper working order, choosing the correct breaker type and electrical ratings helps ensure the best fit for your application.

Key Features and Benefits

• 30-amp current rating for compatible branch circuit protection
• Single-pole design for single-phase electrical applications
• Plug-on mounting allows for straightforward installation in compatible panelboards
• Thermal magnetic trip mechanism responds to both overload and short-circuit conditions
• 14kA interrupting capacity at 277VAC
• Designed as a form, fit, and functional replacement for compatible Type EH-4 installations
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Part Number: EH14030

• Type: EH-4

• Breaker Style: Plug-On Thermal Magnetic Circuit Breaker

• Poles: 1

• Amperes: 30A

• Voltage Rating: 277VAC

• Interrupting Capacity (A.I.C.): 14kA @ 277VAC

• Dimensions:
  • Width: 1.00 in.
  • Height: 3.50 in.
  • Depth: 2.63 in.
• Approximate Shipping Weight: 1.75 lbs.


Material Compliance and Certifications

• Manufactured for use in compatible electrical distribution equipment.
• Designed to meet applicable industry standards for its intended application.
• Installation should be performed in accordance with the National Electrical Code (NEC), local electrical codes, and the original equipment manufacturer's recommendations.
• Always verify breaker type, amperage, voltage rating, interrupting capacity, and panel compatibility before installation.


Where It Works Best

• The EH14030 is a dependable choice for maintaining compatible commercial, industrial, and institutional electrical systems that require a 1-pole, 30-amp Type EH-4 plug-on thermal magnetic circuit breaker. It's commonly used to protect branch circuits serving lighting, HVAC equipment, control panels, machinery, and other electrical loads operating within its rated capacity. Before installation, confirm that the amperage, voltage rating, interrupting capacity, mounting style, and Type EH-4 configuration match your existing equipment to ensure proper compatibility and a correct form, fit, and functional replacement.
