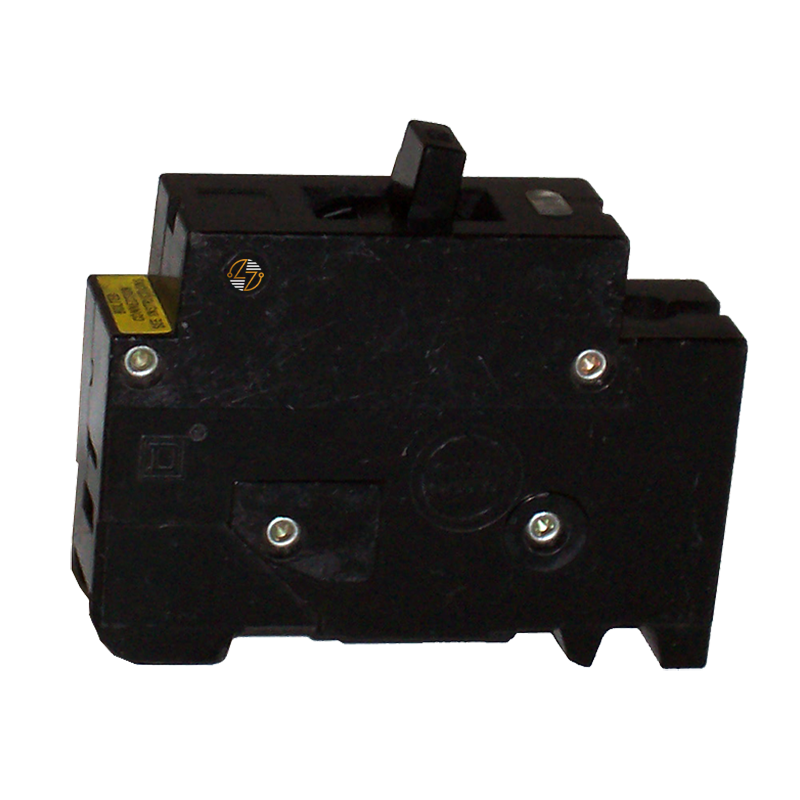

EH14015 - 15 Amp Circuit Breaker

EH14015 - 15 Amp Circuit Breaker

When you need a compatible replacement for an existing Type EH-4 circuit breaker, the EH14015 delivers the form, fit, and function your electrical system was designed to use. This 1-pole, 15-amp plug-on thermal magnetic circuit breaker helps protect branch circuits by responding to both prolonged overloads and sudden short circuits, making it an essential component for keeping compatible electrical distribution systems operating safely.

Designed for applications requiring a 14 kA interrupting capacity at 277 VAC, the EH14015 installs with a convenient plug-on connection in compatible panelboards. Whether you're maintaining commercial, industrial, or institutional electrical equipment, selecting the correct breaker helps preserve the system's original design while providing reliable circuit protection.

Key Features and Benefits

• 15-amp current rating for compatible branch circuit protection
• Single-pole design for single-phase electrical applications
• Plug-on mounting allows for straightforward installation in compatible panels
• Thermal magnetic trip mechanism responds to both overload and short-circuit conditions
• 14kA interrupting capacity at 277VAC
• Designed as a form, fit, and functional replacement for compatible Type EH-4 installations
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Part Number: EH14015

• Type: EH-4

• Breaker Style: Plug-On Thermal Magnetic Circuit Breaker

• Poles: 1

• Amperes: 15A

• Voltage Rating: 277VAC

• Interrupting Capacity (A.I.C.): 14kA @ 277VAC

• Dimensions:
  • Width: 1.00 in.
  • Height: 3.50 in.
  • Depth: 2.63 in.
• Approximate Shipping Weight: 1.75 lbs.


Material Compliance and Certifications

• Manufactured for use in compatible electrical distribution equipment.
• Designed to meet applicable industry standards for its intended application.
• Installation should be performed in accordance with the National Electrical Code (NEC), local electrical codes, and the original equipment manufacturer's recommendations.
• Always verify breaker type, electrical ratings, and panel compatibility before installation.


Where It Works Best

The EH14015 is ideal for maintaining compatible commercial, industrial, and institutional electrical systems that require a 1-pole, 15-amp Type EH-4 plug-on circuit breaker. It is commonly used to protect branch circuits serving lighting, control equipment, and other electrical loads operating within their rated capacity. If you're replacing an existing EH-4 breaker, matching the correct amperage, voltage rating, interrupting capacity, and mounting style helps ensure proper compatibility with your existing equipment.
