EGS3070FFB 70Amp Circuit Breaker

EGS3070FFB 70Amp Circuit Breaker

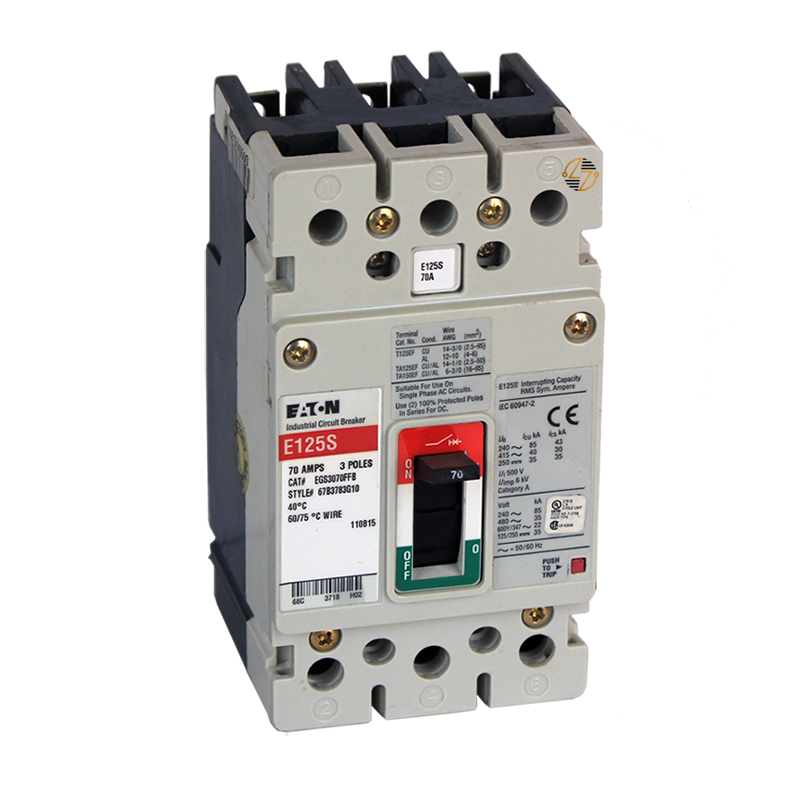

Introducing the Eaton EGS3070FFB Circuit Breaker, a premier choice in Eaton's Series G molded case circuit breakers. Designed to deliver exceptional performance and reliability, this EG-frame circuit breaker features fixed thermal and magnetic trip settings, ensuring consistent and dependable protection for your electrical systems. Rated at 70A, it operates efficiently at 600Y/347 Vac with substantial interrupting capacities of 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 22 kAIC at 600Y/347 Vac. The three-pole configuration and bolt-on design make it easy to install and integrate into various commercial and industrial applications.

Key Features and Benefits:

• Dependable Protection: Features fixed thermal and magnetic trip settings for reliable and consistent circuit protection.
• High Interrupting Capacity: Supports up to 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 22 kAIC at 600Y/347 Vac, ensuring robust safety in high-energy environments.
• Compact and Lightweight: Easy to install with minimal space requirements, making it suitable for a variety of setups.
• Durability and Reliability: Part of Eaton’s Series G, known for its long-lasting reliability and robust construction.

Technical Specifications:

• Frame Type: EG
• Amperage Rating: 70A
• Voltage Rating: 600Y/347 Vac
• Interrupt Rating: 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 22 kAIC at 600Y/347 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Three-pole
• Terminals: Bolt-on
• Frequency: 50/60 Hz
• Dimensions: 2.99 in length, 5.5 in height, 3 in width
• Weight: 2.9 lb

Material Compliance and Certifications:

• Certifications: CE Marked, CSA Certified, IEC Rated, UL Listed

Suitability:

• The Eaton EGS3070FFB Circuit Breaker is ideal for commercial and industrial applications requiring high-capacity and reliable circuit protection. Its robust design and compliance with multiple international standards make it suitable for both new installations and system upgrades. Whether protecting critical electrical infrastructure or enhancing system reliability, the EGS3070FFB delivers superior performance and peace of mind.
