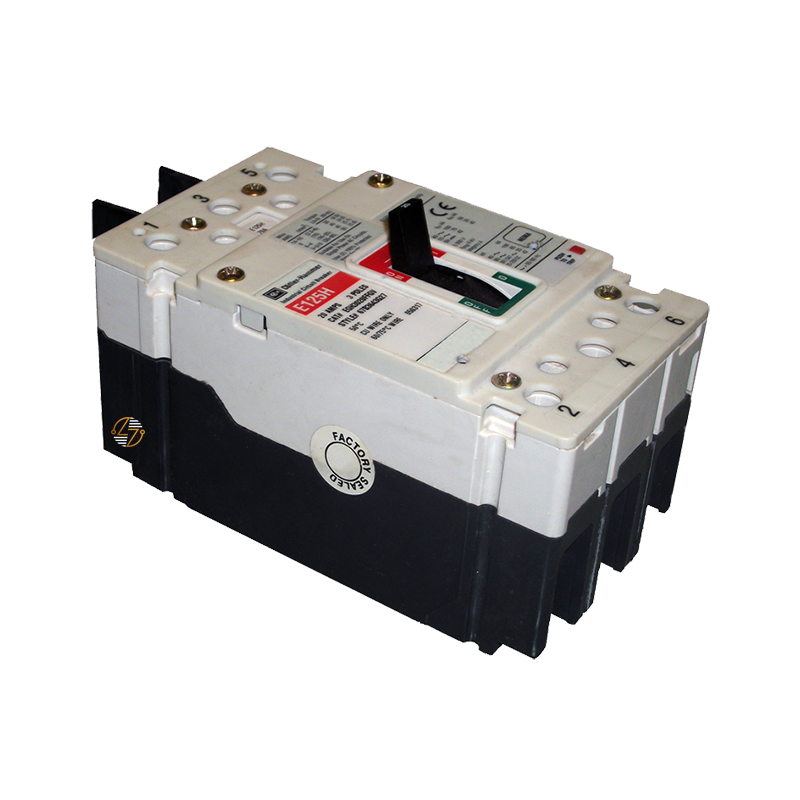

EGH3125FFGV - 125Amp Circuit Breaker

EGH3125FFGV 125Amp Circuit Breaker

The Eaton EGH3125FFGV is a 125 Amp, three-pole molded case circuit breaker designed for use in compatible Eaton Series G EG frame electrical distribution systems. Whether you're performing routine maintenance, replacing a failed breaker, or restoring an existing electrical system to its original specifications, this complete breaker delivers the correct form, fit, and function for compatible installations. Featuring line and load terminals and a T186 thermal-magnetic trip unit calibrated to 50°C, it automatically responds to overloads and short circuits, helping protect electrical equipment and connected circuits. Built to last, the EGH3125FFGV offers a dependable replacement solution for electricians, facility managers, and maintenance professionals who want to maintain the integrity of their existing Eaton Series G electrical systems without unnecessary modifications.

Key Features and Benefits

• 125 Amp continuous current rating
• Three-pole molded case circuit breaker
• Designed for compatible Eaton Series G EG frame equipment
• Complete breaker assembly for form, fit, and functional replacement
• Line and load terminal configuration
• T186 thermal-magnetic trip unit calibrated to 50°C
• Helps protect electrical systems from overloads and short circuits
• Metric mounting hardware
• Suitable for 50/60 Hz electrical distribution systems
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3125FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 125 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency Rating: 50/60 Hz

• Trip Type: T186 Thermal-Magnetic

• Calibration: 50°C

• Terminal Type: Line and Load

• Mounting Hardware: Metric

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3.0 lbs.


Material Compliance and Certifications

The EGH3125FFGV is manufactured to meet recognized electrical safety and compliance standards.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing facilities
• Industrial plants
• Healthcare facilities
• Educational campuses
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems designed for compatible Eaton Series G EG frame breakers
