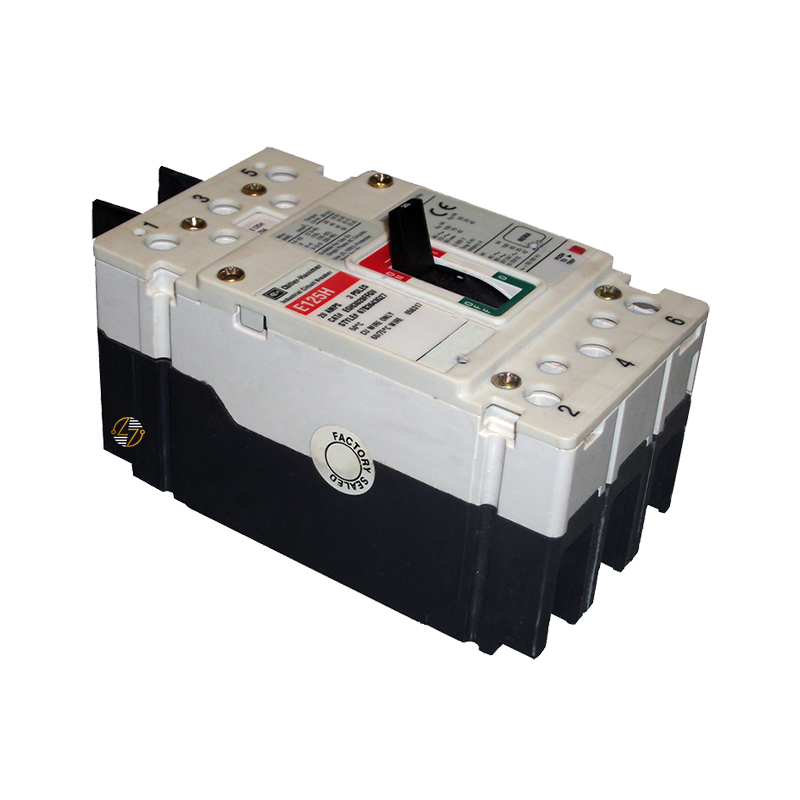

EGH3100FFGV 100Amp Circuit Breaker

EGH3100FFGV 100Amp Circuit Breaker

The Eaton EGH3100FFGV is a 100 Amp, three-pole molded case circuit breaker designed for use in compatible Eaton Series G EG frame electrical distribution systems. If you're replacing an existing breaker to keep your equipment operating as originally designed, this complete breaker provides the correct form, fit, and function for compatible installations. Featuring line and load terminals and a T186 thermal-magnetic trip unit calibrated to 50°C, it automatically responds to overloads and short circuits, helping protect electrical equipment and connected circuits. Built to last, the EGH3100FFGV is a dependable solution for electricians, maintenance teams, and facility managers who need a reliable replacement that maintains compatibility with existing Eaton Series G equipment without requiring system modifications.

Key Features and Benefits

• 100 Amp continuous current rating
• Three-pole molded case circuit breaker
• Designed for compatible Eaton Series G EG frame equipment
• Complete breaker assembly for form, fit, and functional replacement
• Line and load terminal configuration
• T186 thermal-magnetic trip unit calibrated to 50°C
• Helps protect electrical systems from overloads and short circuits
• Suitable for 50/60 Hz electrical distribution systems
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3100FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 100 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency Rating: 50/60 Hz

• Trip Type: T186 Thermal-Magnetic

• Calibration: 50°C

• Terminal Type: Line and Load

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3.0 lbs.


Material Compliance and Certifications

The EGH3100FFGV is manufactured to meet recognized electrical safety and compliance standards.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing facilities
• Industrial plants
• Healthcare facilities
• Educational campuses
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems designed for compatible Eaton Series G EG frame breakers
