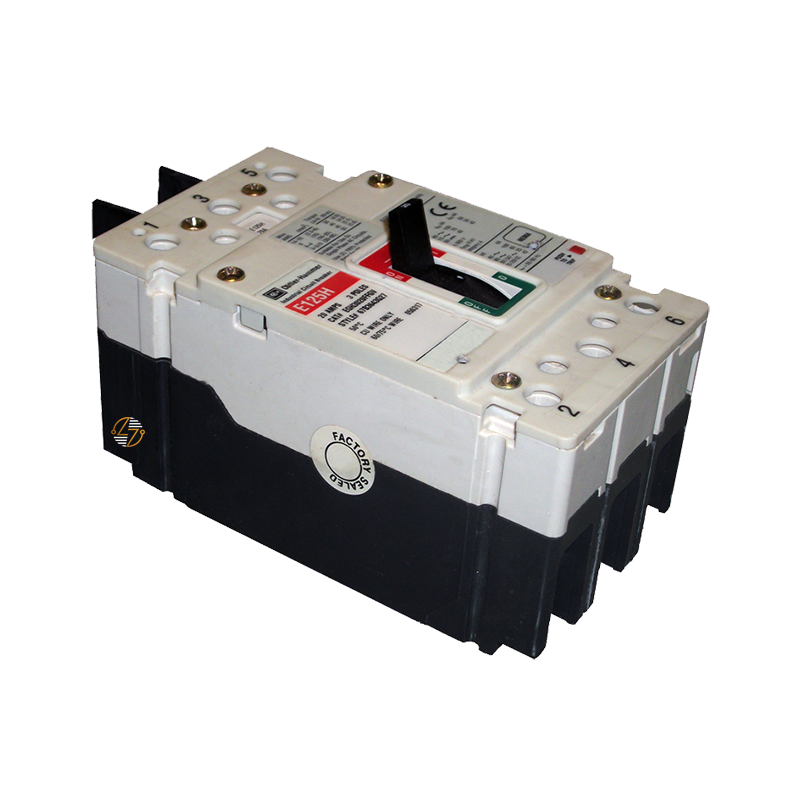

EGH3090FFGV 90Amp Circuit Breaker

EGH3090FFGV 90Amp Circuit Breaker

The Eaton EGH3090FFGV is a 90 Amp, three-pole molded case circuit breaker designed for use in compatible Eaton Series G EG frame electrical distribution systems. Whether you're replacing an existing breaker as part of routine maintenance or restoring equipment to its original operating condition, this complete breaker is built to provide the correct form, fit, and function for compatible installations. Featuring line and load terminals and a T186 thermal-magnetic trip unit calibrated to 50°C, it helps protect electrical systems by automatically responding to overloads and short circuits before they can affect connected equipment. Built to last, the EGH3090FFGV offers a dependable solution for electricians, facility managers, and maintenance professionals who need to keep commercial and industrial electrical systems operating safely and efficiently.

Key Features and Benefits

• 90 Amp continuous current rating
• Three-pole molded case circuit breaker
• Designed for compatible Eaton Series G EG frame equipment
• Complete breaker assembly for form, fit, and functional replacement
• Line and load terminal configuration
• T186 thermal-magnetic trip unit calibrated to 50°C
• Helps protect electrical systems from overloads and short circuits
• Suitable for 50/60 Hz electrical distribution systems
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3090FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 90 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency Rating: 50/60 Hz

• Trip Type: T186 Thermal-Magnetic

• Calibration: 50°C

• Terminal Type: Line and Load

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3.0 lbs.


Material Compliance and Certifications

The EGH3090FFGV is manufactured to meet recognized electrical safety and compliance standards.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing facilities
• Industrial plants
• Healthcare facilities
• Educational campuses
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems designed for compatible Eaton Series G EG frame breakers
