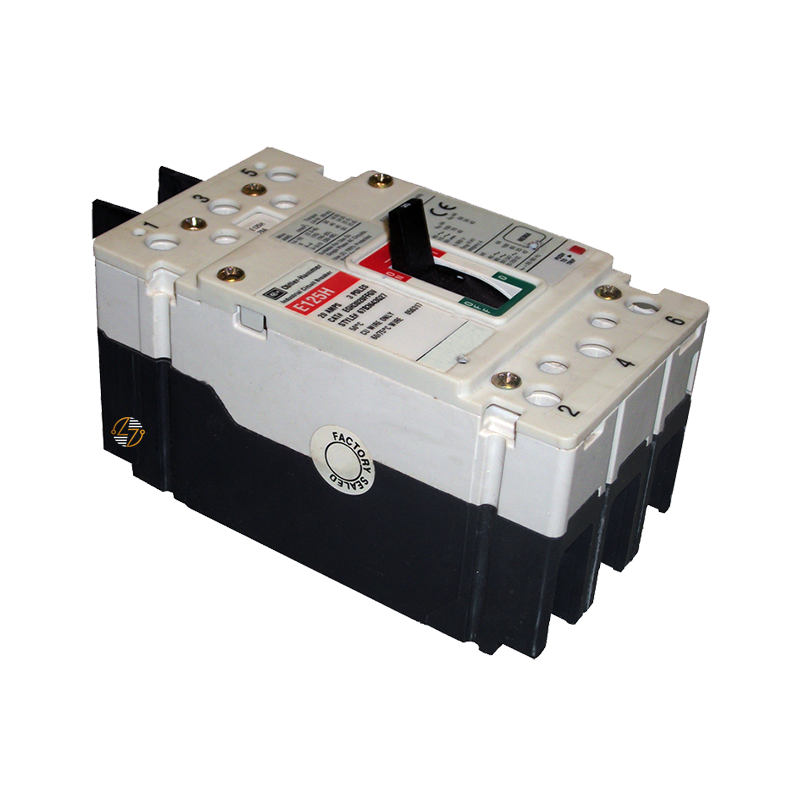

EGH3060FFGV 60Amp Circuit Breaker

EGH3060FFGV 60Amp Circuit Breaker

The Eaton EGH3060FFGV is a 60 Amp, three-pole molded case circuit breaker designed for use in compatible Series G EG frame electrical distribution systems. Whether you're replacing an existing breaker as part of scheduled maintenance or restoring a system to proper working order, this complete breaker is built to provide the correct form, fit, and function for compatible equipment.

The breaker is also UL Listed, CSA Certified, IEC Rated, and CE Marked, demonstrating compliance with widely recognized industry standards. If you're looking for a dependable replacement breaker that matches the original specifications of your compatible system, the EGH3060FFGV is a practical solution designed to keep your electrical distribution equipment operating as intended.

Key Features and Benefits

• 60 Amp continuous current rating
• Three-pole molded case circuit breaker
• Designed for compatible Eaton Series G EG frame equipment
• Complete breaker assembly for form, fit, and functional replacement
• Line and load terminal configuration for installation flexibility
• T186 thermal-magnetic trip unit helps protect against overloads and short circuits
• Calibrated for operation at 50°C
• Suitable for 50/60 Hz electrical systems
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3060FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 60 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency Rating: 50/60 Hz

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Line and Load

• Calibration: 50°C

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3 lbs.


Material Compliance and Certifications

The EGH3060FFGV is manufactured to meet recognized electrical safety and compliance standards.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing facilities
• Industrial plants
• Healthcare facilities
• Educational campuses
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems designed for compatible Eaton Series G EG frame breakers
