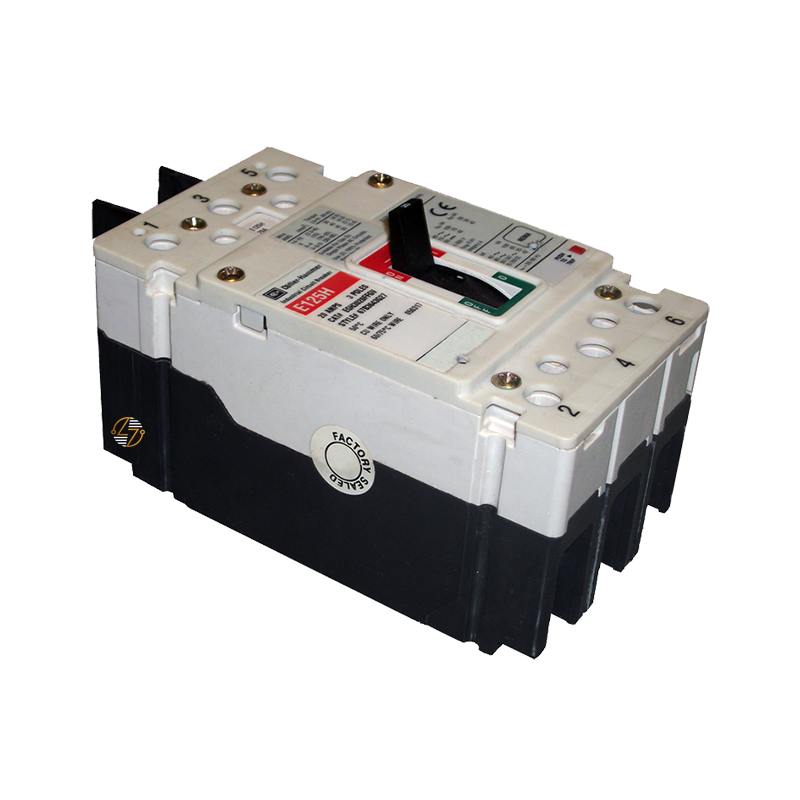

EGH3050FFGV - 50Amp Circuit Breaker

EGH3050FFGV - 50Amp Circuit Breaker

When you need a dependable replacement breaker that matches the original specifications of your electrical system, the Eaton EGH3050FFGV is designed to deliver the proper form, fit, and function. This 50 Amp, three-pole molded case circuit breaker is part of the trusted Series G EG frame family and is intended for use in compatible commercial and industrial electrical distribution equipment. Featuring line and load terminals, a T186 thermal-magnetic trip unit, and a 50°C calibration, this complete breaker helps protect connected equipment against overloads and short circuits while maintaining compatibility with existing installations. Built to last, the EGH3050FFGV offers a practical solution for maintaining legacy electrical systems without altering the original equipment design.

Key Features and Benefits

• 50 Amp continuous current rating
• Three-pole molded case circuit breaker
• Designed for compatible Eaton Series G EG frame equipment
• Complete breaker assembly for form, fit, and functional replacement
• Line and load terminal configuration
• T186 thermal-magnetic trip unit helps protect against overloads and short circuits
• Calibrated for operation at 50°C
• Operates on 50/60 Hz electrical systems
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3050FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 50 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency: 50/60 Hz

• Trip Type: T186 Thermal-Magnetic

• Calibration: 50°C

• Terminal Type: Line and Load

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3 lbs.


Material Compliance and Certifications

The EGH3050FFGV is manufactured to meet widely recognized electrical safety and compliance standards.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing facilities
• Industrial plants
• Educational institutions
• Healthcare facilities
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems designed for compatible Eaton Series G EG frame breakers
