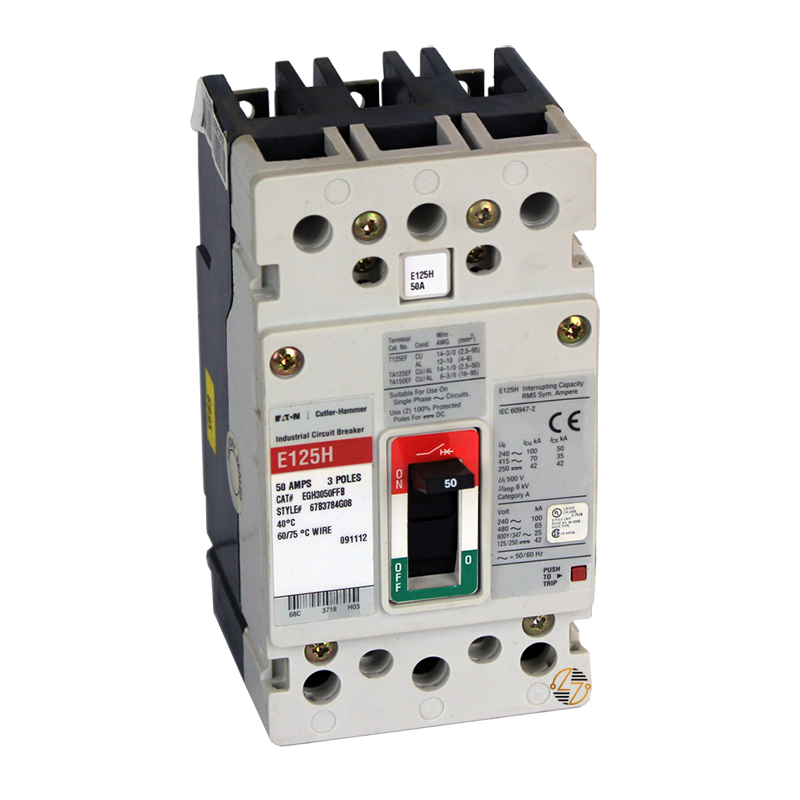

EGH3050FFB - 50Amp Circuit Breaker

EGH3050FFB - 50Amp Circuit Breaker

Whether you're replacing a worn breaker during scheduled maintenance or restoring power after an unexpected failure, the Eaton EGH3050FFB is designed to provide the proper form, fit, and function for compatible electrical systems. This 50-amp, three-pole molded-case circuit breaker is part of the trusted Series G EG frame family and is engineered to provide dependable overload and short-circuit protection in commercial and industrial applications. Featuring a bolt-on terminal design, it installs into compatible equipment as intended, helping maintain the original configuration of your electrical distribution system. Built to last, the EGH3050FFB is a practical choice for keeping existing systems operating safely and reliably without unnecessary modifications.

Key Features and Benefits

• 50 Amp continuous current rating
• Three-pole molded case circuit breaker
• Complete breaker designed for compatible Eaton Series G EG frame equipment
• Bolt-on terminals for secure installation
• Thermal-magnetic T186 trip unit provides overload and short-circuit protection
• Operates on 50/60 Hz electrical systems
• Compact EG frame design for installations where compatible dimensions are required
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3050FFB

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 50 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency: 50/60 Hz

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Bolt-on

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 2.9 lbs.


Material Compliance and Certifications

The EGH3050FFB is manufactured to meet widely recognized electrical safety and compliance standards.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing facilities
• Industrial plants
• Educational campuses
• Healthcare facilities
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems designed for compatible Eaton Series G EG frame breakers
