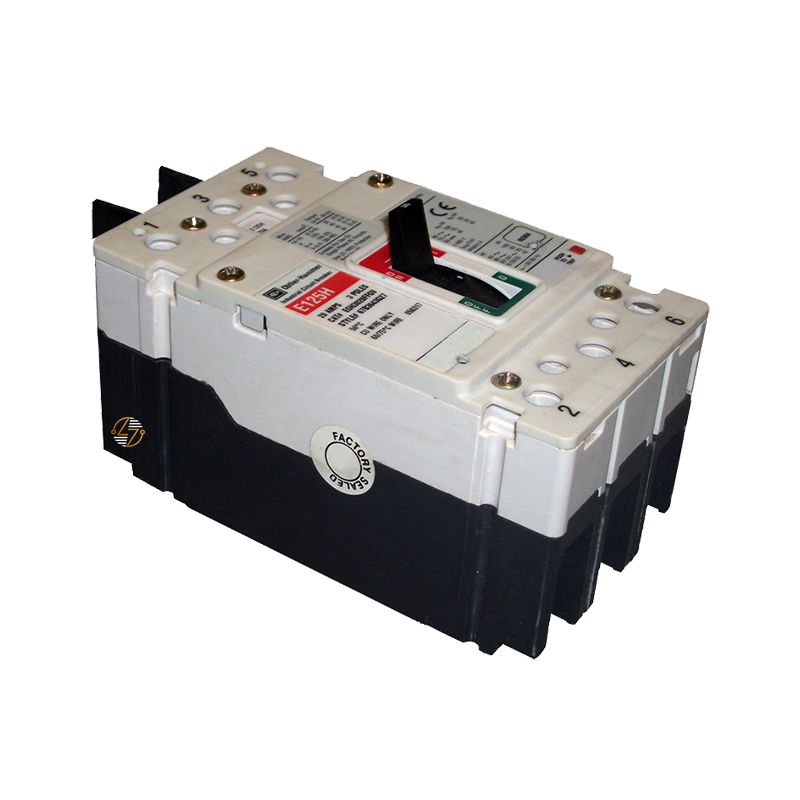

EGH3035FFGV - 35Amp Circuit Breaker

EGH3035FFGV - 35Amp Circuit Breaker

When you're maintaining an existing electrical system, choosing a replacement breaker that matches the original specifications is essential. The EGH3035FFGV is a 35-amp, three-pole molded-case circuit breaker from Eaton's Series G EG frame lineup, designed to provide dependable overload and short-circuit protection in compatible commercial and industrial electrical systems. Built as a complete breaker with line and load terminals, it delivers the proper form, fit, and function for existing installations, helping preserve the original design of your electrical equipment. Whether you're replacing a breaker during preventive maintenance or returning a system to service after a fault, the EGH3035FFGV offers the compatibility professionals look for. Built to last, it's a dependable choice for maintaining existing power distribution systems.

Key Features and Benefits

• 35 Amp continuous current rating
• Three-pole molded case circuit breaker
• Complete breaker designed for compatible Eaton Series G EG frame equipment
• Line and load terminals for installation in compatible electrical systems
• Thermal-magnetic T186 trip unit provides overload and short-circuit protection
• Operates at 50/60 Hz
• Calibrated for 50°C operation
• Compact EG frame design for compatible installations
• Built to last for long-term service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3035FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 35 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency: 50/60 Hz

• Calibration: 50°C

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Line and Load

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3 lbs.


Material Compliance and Certifications

The EGH3035FFGV is manufactured to meet established industry standards for safety, quality, and compatibility.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing and industrial facilities
• Healthcare facilities
• Educational campuses
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems using compatible Eaton Series G EG frame breakers
