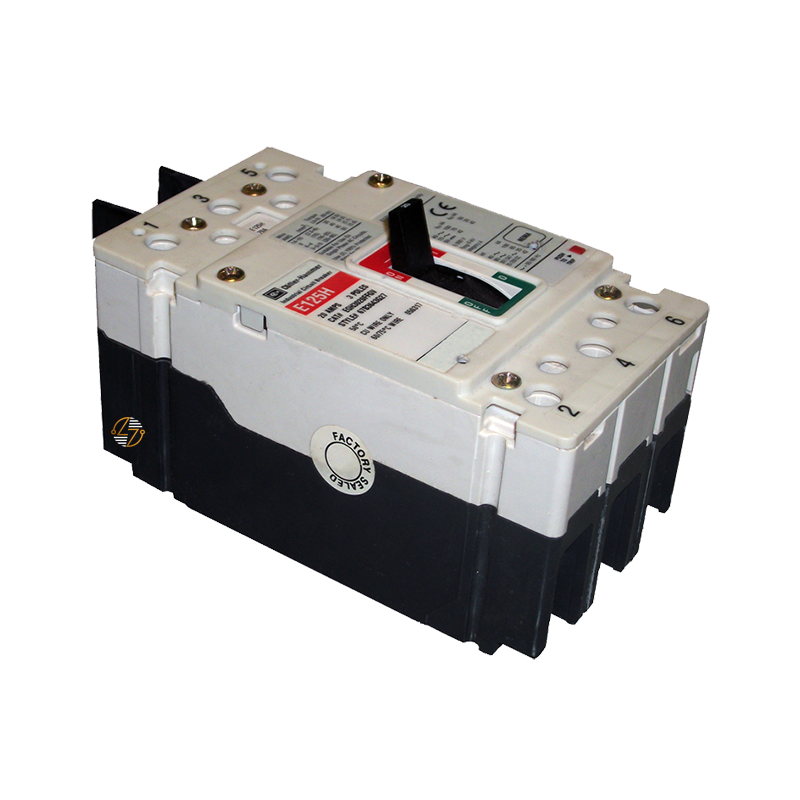

EGH3030FFGV - 30Amp Circuit Breaker

EGH3030FFGV - 30Amp Circuit Breaker

When you're maintaining an existing electrical system, choosing the right replacement breaker helps keep your equipment operating the way it was originally designed. The EGH3030FFGV is a 30 Amp, three-pole molded case circuit breaker from Eaton's Series G EG frame family, engineered to provide dependable overload and short-circuit protection in compatible commercial and industrial electrical systems. Built as a complete breaker with line and load terminals, it offers the proper form, fit, and function for existing installations without requiring changes to your equipment. Whether you're performing preventive maintenance, replacing a damaged breaker, or restoring service after a fault, the EGH3030FFGV is built to last and provides a practical solution for maintaining compatible power distribution systems.

Key Features and Benefits

• 30 Amp continuous current rating
• Three-pole molded case circuit breaker
• Complete breaker designed for compatible Eaton Series G EG frame equipment
• Line and load terminals for flexible installation in compatible systems
• Thermal-magnetic T186 trip unit provides overload and short-circuit protection
• Operates at 50/60 Hz
• Calibrated for 50°C environments
• Compact EG frame design for compatible electrical equipment
• Built to last for long-term service in properly maintained electrical systems


Technical Specifications

• Catalog Number: EGH3030FFGV

• Manufacturer: Eaton

• Series: Series G

• Product Type: Molded Case Circuit Breaker

• Frame: EG

• Frame Type: Complete Breaker

• Amperage Rating: 30 Amps

• Number of Poles: 3

• Voltage Rating: 600Y/347 VAC

• Frequency: 50/60 Hz

• Calibration: 50°C

• Trip Type: T186 Thermal-Magnetic

• Terminal Type: Line and Load

• Interrupting Ratings:
  • 100 kAIC @ 240 VAC
  • 65 kAIC @ 480 VAC
  • 35 kAIC @ 600Y/347 VAC
• Dimensions:
  • Height: 5.5 in.
  • Width: 3.0 in.
  • Depth: 2.99 in.
• Weight: Approximately 3 lbs.


Material Compliance and Certifications

The EGH3030FFGV is manufactured to meet established industry standards for safety, quality, and compatibility.

• UL Listed
• CSA Certified
• IEC Rated
• CE Marked


Where It Works Best

• Commercial office buildings
• Manufacturing and industrial facilities
• Healthcare facilities
• Educational institutions
• Warehouses and distribution centers
• Electrical distribution panels
• Branch circuit protection applications
• Existing power distribution systems using compatible Eaton Series G EG frame breakers
