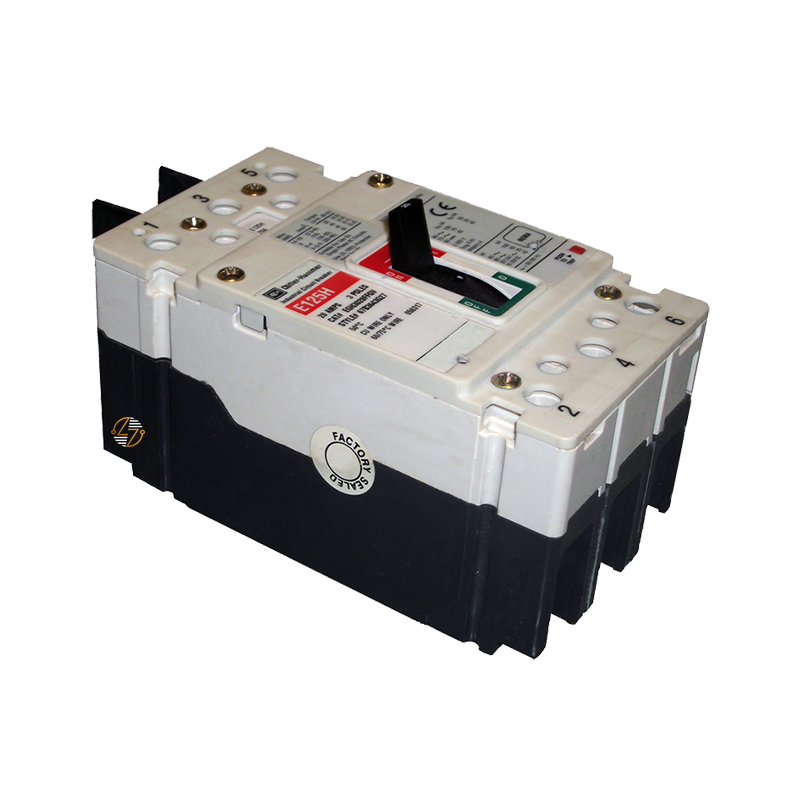

EGH3025FFGV - 25Amp Circuit Breaker

EGH3025FFGV - 25Amp Circuit Breaker

Introducing the Eaton EGH3025FFGV Series G Molded Case Circuit Breaker, a top-tier solution for robust electrical protection. Engineered with precision, this circuit breaker offers unparalleled reliability and performance, making it an essential component for both commercial and industrial applications. The EGH3025FFGV is a three-pole, 25A circuit breaker, designed to operate at a voltage of 600Y/347 Vac with an impressive interrupting capacity of 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600Y/347 Vac. Its fixed thermal and fixed magnetic trip settings ensure consistent and reliable protection, preventing damage from overloads and short circuits. Ideal for use in harsh environments, this circuit breaker is rated for a frequency of 50/60 Hz and can withstand temperatures up to 50°C.

Key Features and Benefits:

• High Interrupting Capacity: Provides 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600Y/347 Vac, ensuring robust protection against short circuits.
• Fixed Thermal and Magnetic Trip: Delivers reliable and consistent tripping performance to safeguard electrical systems from overloads and faults.
• Wide Operating Temperature Range: Can operate efficiently in temperatures up to 50°C, making it suitable for use in demanding environments.

Technical Specifications:

• Amperage Rating: 25A
• Voltage Rating: 600Y/347 Vac
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600Y/347 Vac
• Trip Type: Fixed Thermal, Fixed Magnetic
• Frequency Rating: 50/60 Hz
• Temperature Rating: Up to 50°C
• Dimensions: 2.99" (L) x 5.5" (H) x 3" (W)
• Weight: 3 lbs

Material Compliance and Certifications:

• Compliance: The Eaton EGH3025FFGV circuit breaker is manufactured with high-quality materials to ensure durability and reliability. It complies with international standards for safety and environmental protection, including CE Marking, UL Listing, and CSA Certification. These certifications guarantee that the product meets rigorous safety and performance criteria, providing peace of mind for users.

Suitability:

• The EGH3025FFGV circuit breaker is ideal for a wide range of applications, including commercial buildings, industrial facilities, and other high-demand environments. Its robust design and high interrupting capacity make it suitable for protecting electrical systems from severe fault conditions. Whether used in control panels, motor protection circuits, or other critical installations, this circuit breaker delivers superior performance and reliability.

The Eaton EGH3025FFGV Circuit Breaker is the perfect solution for ensuring the safety and reliability of your electrical systems, providing comprehensive protection and adhering to global standards. Learn more about how this essential component can enhance your electrical infrastructure today.
