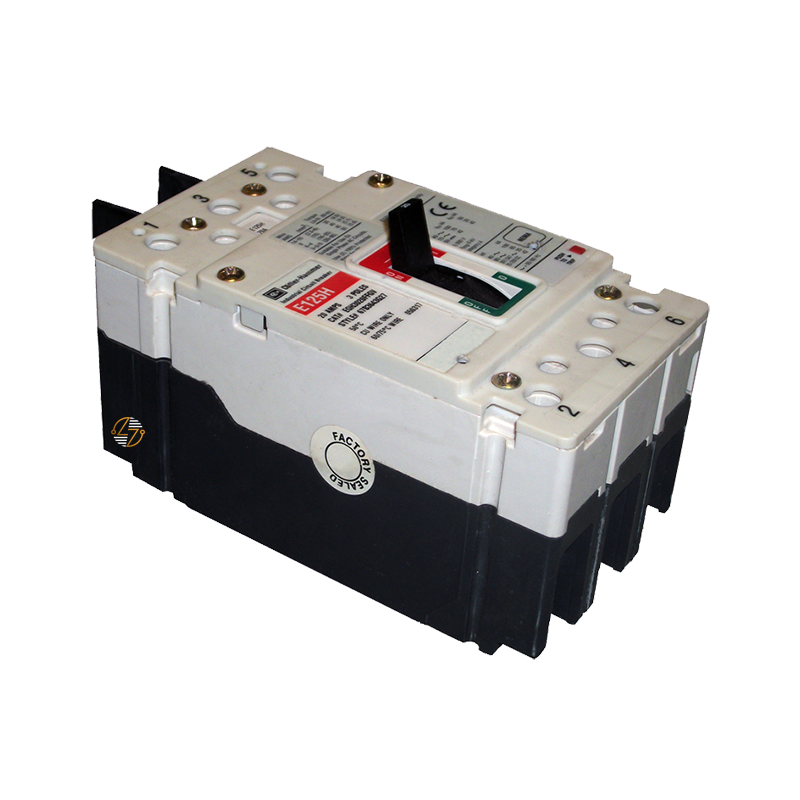

EGH3020FFGV 20A Circuit Breaker

EGH3020FFGV 20A Circuit Breaker

Introducing the Eaton EGH3020FFGV, a top-tier molded case circuit breaker from the Eaton Series G, designed to deliver reliable and robust protection for your electrical systems. This three-pole circuit breaker is engineered for demanding applications, with a 20A rating and impressive interrupting capacity. It supports 600Y/347 Vac with a breaking capacity of 35 kAIC, ensuring it can handle substantial electrical loads. Additionally, it boasts 100 kAIC at 240 Vac and 65 kAIC at 480 Vac, making it versatile for various voltage requirements. The fixed thermal and fixed magnetic trip mechanisms ensure consistent performance and protection, while the line and load terminals offer straightforward installation and maintenance.

Key Features and Benefits:

• High Interrupting Capacity: The EGH3020FFGV can interrupt up to 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600Y/347 Vac, providing reliable protection in high-demand environments.
• Versatile Voltage Compatibility: Designed for 600Y/347 Vac, this breaker is ideal for diverse applications, ensuring safety and efficiency.
• Fixed Thermal and Magnetic Trip: Ensures dependable performance, reducing the risk of electrical faults and enhancing system longevity.
• Durable Construction: With its molded case design, the circuit breaker offers durability and resilience, ideal for industrial and commercial settings.

Technical Specifications:

• Amperage Rating: 20A
• Voltage Rating: 600Y/347 Vac, 240 Vac, 480 Vac
• Interrupting Capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 35 kAIC at 600Y/347 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Three
• Frequency Rating: 50/60 Hz
• Operating Temperature: Up to 50°C
• Dimensions: 2.99 in (L) x 5.5 in (H) x 3 in (W)
• Weight: 3 lb

Material Compliance and Certifications:

• CE Marked: Meets European safety, health, and environmental protection standards.
• UL Listed: Certified by Underwriters Laboratories, ensuring compliance with stringent safety standards.
• IEC Rated: Compliant with International Electrotechnical Commission standards.
• CSA Certified: Meets Canadian Standards Association requirements for safety and performance.

Suitability:

• The Eaton EGH3020FFGV is perfect for use in industrial, commercial, and residential settings where reliable electrical protection is crucial. Its robust design and high interrupting capacity make it suitable for power distribution panels, motor control centers, and other critical infrastructure. This circuit breaker is an excellent choice for safeguarding electrical systems against overloads, short circuits, and other electrical faults, ensuring the safety and efficiency of your operations.

The Eaton EGH3020FFGV circuit breaker provides superior protection and durability, ensuring that your electrical systems remain safe, compliant, and efficient in even the most demanding environments.
