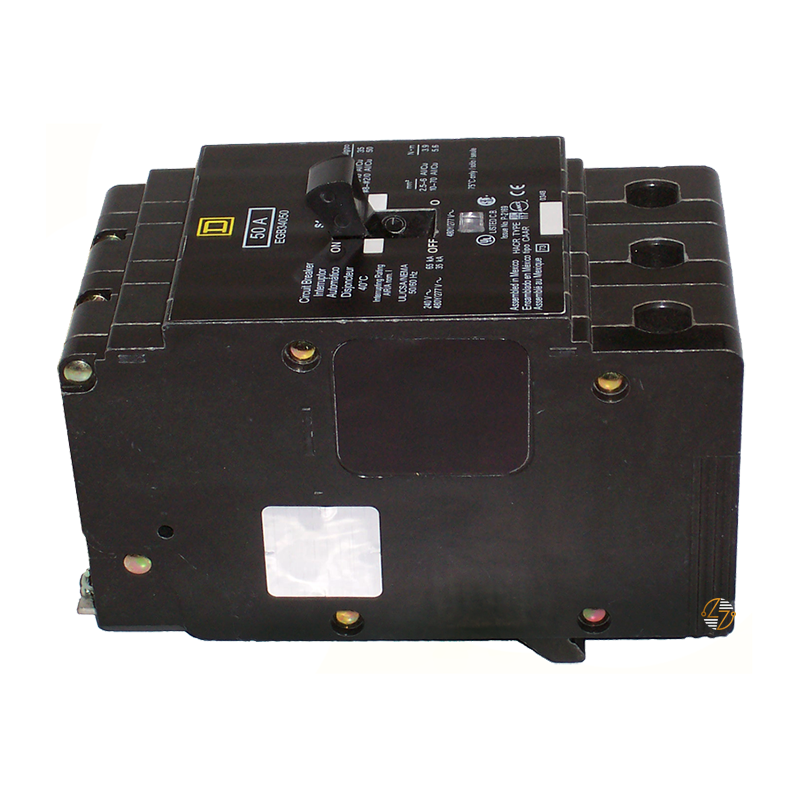

EGB34045 - 45 Amp Circuit Breaker

EGB34045 - 45 Amp Circuit Breaker

When you're maintaining an existing NF panelboard and need a dependable 45 Amp, 3-pole circuit breaker, the EGB34045 is designed to provide the form, fit, and function your system was built around. Whether you're replacing a failed breaker or performing preventative maintenance, this bolt-on breaker installs into compatible panelboards without requiring changes to the existing electrical layout, helping you get equipment back in service with confidence.

Designed for 480Y/277 VAC three-phase electrical systems, this breaker combines a bolt-on mounting design with interrupt ratings of up to 65 kA at 240 VAC and 35 kA at 480Y/277 VAC, making it well-suited for a variety of commercial and industrial applications.

Key Features and Benefits

• 45 Amp continuous current rating
• 3-pole configuration for three-phase electrical distribution
• Bolt-on mounting for secure installation in compatible NF panelboards
• Thermal-magnetic trip unit provides overload and short-circuit protection
• Built-in trip indicator allows quick visual status checks
• Rated for systems up to 480Y/277 VAC
• Interrupt ratings up to:
  • 65kA @ 120/240 VAC
  • 65kA @ 240 VAC
  • 35kA @ 277 VAC
  • 35kA @ 480Y/277 VAC
• HACR rated for HVAC applications
• UL Listed for HID lighting applications
• Designed for form, fit, and functional replacement in compatible legacy electrical systems
• Built for dependable, long-term service


Technical Specifications

• Catalog Number: EGB34045

• Rated Current: 45 Amps

• Number of Poles: 3

• Frame Type: E-Frame (EGB Series)

• Mounting Type: Bolt-On

• Maximum Operating Voltage: 480Y/277 VAC

• Trip Unit Technology: Thermal-Magnetic

• Trip Unit Rating: 1800A

• Holding Current: 630A

• Protection: Overload and Short-Circuit

• Interrupt Ratings:
  • 65kA @ 120 VAC
  • 65kA @ 120/240 VAC
  • 65kA @ 240 VAC
  • 35kA @ 277 VAC
  • 35kA @ 480Y/277 VAC
• Electrical Connections: Aluminum lugs

• Compatible Wire Range:
  • Aluminum: AWG 12–2/0
  • Copper: AWG 14–2/0
• Tightening Torque:
  • 34.5 lb-in (3.9 N·m) for AWG 14–10
  • 49.6 lb-in (5.6 N·m) for AWG 8–2/0
• Operating Temperature: 40°C (104°F)

• Dimensions: 5.66" H × 2.94" W × 4.05" D

• Weight: Approximately 4 lbs


Material Compliance and Certifications

• cULus Listed
• UL Listed for High Intensity Discharge (HID) applications
• HACR Rated
• TAA Compliant
• Calibrated for operation in ambient temperatures up to 40°C (104°F)


Where It Works Best

• Commercial office buildings
• Manufacturing and industrial facilities
• Educational campuses
• Healthcare facilities
• Retail and mixed-use buildings
• HVAC equipment circuits
• HID lighting systems
• Three-phase electrical distribution panels
