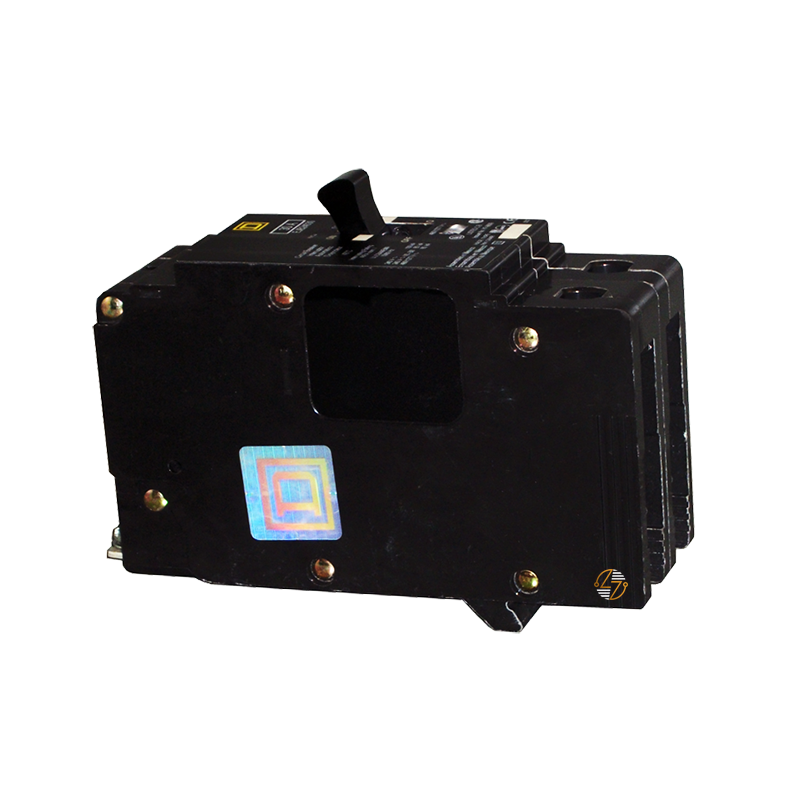

EGB24125 - 125A Circuit Breaker

EGB24125 125A Circuit Breaker

The EGB24125 Mini Circuit Breaker is an advanced, reliable solution specifically engineered for superior overload and short-circuit protection in electrical systems. Designed to meet the rigorous demands of commercial and industrial environments, this 125A, 2-pole breaker operates at 480Y/277 VAC and boasts an impressive interrupting capacity of up to 65 kA. With its thermal-magnetic trip unit, this breaker ensures precise operation, effectively safeguarding your equipment from electrical faults. The bolt-on mounting design simplifies installation in Square D NF Panelboards, making it an ideal choice for new installations or retrofits.

Key Features and Benefits:

• Superior Protection: Provides robust overload and short-circuit protection with a 125A rating, ensuring your electrical systems are safe and reliable.
• High Interrupting Capacity: Offers a maximum interrupting rating of 65 kA, suitable for high-fault applications.
• Thermal-Magnetic Trip Unit: Ensures accurate and reliable trip performance, protecting your equipment from electrical faults.
• Signal Indicator: Features a clear trip indicator, allowing for quick identification of the breaker status.
• Bolt-On Mounting: Simplifies installation and maintenance, making it ideal for both new and existing setups.

Technical Specifications:

• Frame Type: E-Frame
• Rated Current: 125 A
• Voltage: 480Y/277 VAC
• Interrupting Rating: 65 kA at 120 VAC
• Trip Unit Rating: 2300 A
• Mounting Mode: Bolt-on
• Number of Poles: 2
• Height: 5.66 inches (143.76 mm)
• Width: 1.96 inches (49.78 mm)
• Depth: 4.05 inches (102.87 mm)
• Weight: 3 lbs (1.36 kg)

Material Compliance and Certifications:

• Compliance: The EGB24125 Mini Circuit Breaker complies with several international standards and certifications, ensuring high safety and performance levels. It is HACR rated and certified by cULus, guaranteeing adherence to rigorous quality and safety standards.
• Green Premium‰ã¢ Program: This breaker is part of Schneider Electric's Green Premium‰ã¢ program, highlighting its superior environmental performance and compliance with the latest regulations such as RoHS and REACh.

Suitability:

• The EGB24125 Mini Circuit Breaker is ideal for use in commercial and industrial applications. Its robust design and high interrupting capacity make it suitable for high-fault current applications, ensuring dependable protection in various settings, from manufacturing facilities to commercial buildings.
