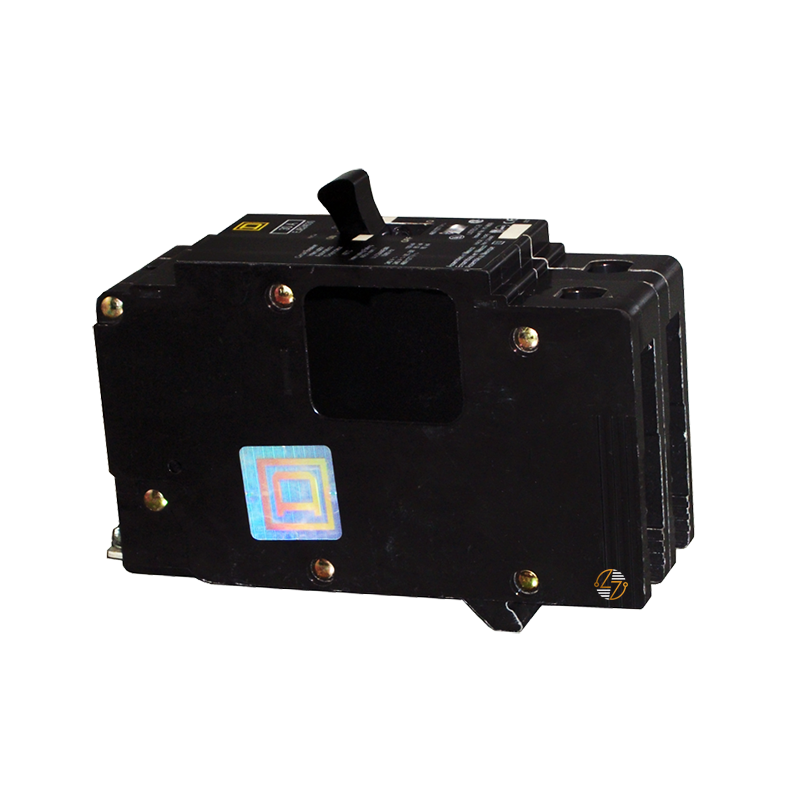

EGB24110 - 110A Circuit Breaker

EGB24110 110A Circuit Breaker

Enhance your electrical systems with the robust and reliable EGB24110 Mini Circuit Breaker, a premier product specifically designed for superior performance in Square D NF Panelboards. This E-Frame breaker is engineered to deliver exceptional overload and short-circuit protection, ensuring the safety and efficiency of your lighting panelboards. With a trip unit rating of 2300A and a maximum operating voltage of 480Y/277 VAC, this 2-pole breaker provides a high interrupting capacity of 65 kA, making it ideal for demanding industrial and commercial applications.

Key Features and Benefits:

• Superior Protection: Equipped with a thermal-magnetic trip unit and a trip indicator, the EGB24110 ensures immediate response to overloads and short circuits.
• High Interrupting Capacity: With a breaking capacity of up to 65 kA at 120 VAC, this breaker is built to handle significant electrical faults without compromising safety.
• Versatile Application: Designed for NF panelboards, it supports both aluminum (AWG 12 to AWG 2/0) and copper (AWG 14 to AWG 2/0) electrical connections, providing flexibility for various installation requirements.
• Durable Construction: The bolt-on mounting mode secures the breaker firmly in place, ensuring long-term reliability even in the most rigorous environments.

Technical Specifications:

• Device Short Name: EGB
• Line Rated Current: 110A
• Maximum Operating Voltage: 480Y/277 VAC
• Breaking Capacity: 35 kA at 277 VAC, 65 kA at 240 VAC and 120/240 VAC
• Trip Unit Technology: Thermal-magnetic
• Dimensions: Height: 5.66 in (143.76 mm), Width: 1.96 in (49.78 mm), Depth: 4.05 in (102.87 mm)
• Weight: 3 lb (1.36 kg)
• Mounting Mode: Bolt-on
• Number of Poles: 2

Material Compliance and Certifications:

• Green Premium Label: This product adheres to Schneider Electric‰۪s Green Premium program, ensuring compliance with the latest environmental regulations and offering transparency on its environmental impacts.
• RoHS and REACh Compliance: The EGB24110 is pro-actively compliant with EU RoHS and REACh regulations, free from hazardous substances to support sustainable practices.
• Certifications: The circuit breaker is cULus certified, confirming its adherence to stringent safety standards and quality benchmarks.

Suitability:

• The EGB24110 Mini Circuit Breaker is ideally suited for industrial and commercial settings requiring robust and reliable electrical protection. Its high interrupting capacity and compatibility with NF panelboards make it perfect for environments where electrical systems demand top-tier performance and safety. Whether you are upgrading an existing system or installing a new one, this circuit breaker ensures operational excellence and peace of mind.

Enhance your electrical systems with the EGB24110, a durable and high-performance circuit breaker designed for demanding applications. Ensure your systems remain safe and compliant with this industry-leading product from Schneider Electric.
