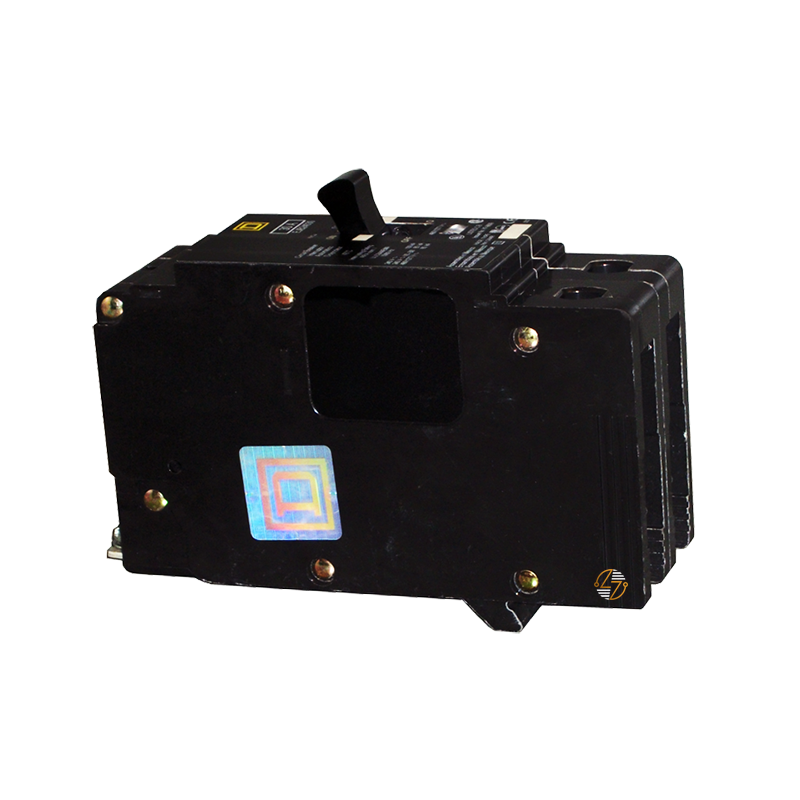

EGB24050 - 50Amp Circuit Breaker

EGB24050 - 50Amp Circuit Breaker

The EGB24050 Circuit Breaker from Schneider Electric is a high-performance miniature circuit breaker designed for superior protection and reliability. Ideal for use in lighting panelboards, this 2-pole breaker is rated at 50A and operates at a maximum voltage of 480Y/277VAC, making it suitable for a variety of low-voltage electrical applications. Priced at $776.00, this robust circuit breaker is an essential component for any modern electrical setup, delivering unparalleled protection against overloads and short circuits.

Key Features and Benefits:

• High Current Rating: Rated at 50A, suitable for heavy-duty applications.
• Superior Voltage Capacity: Operates at 480Y/277VAC with a breaking capacity of 65kA at 240VAC, providing robust performance.
• Thermal-Magnetic Trip Unit: Offers reliable protection by responding promptly to overloads and short circuits.
• Bolt-On Mounting: Ensures secure and easy installation into NF panelboards.
• Compact Design: Miniature E-Frame allows for efficient use of space in panelboards.

Technical Specifications:

• Current Rating: 50A
• Voltage Rating: 480Y/277VAC
• Breaking Capacity: 65kA at 120/240VAC, 35kA at 277VAC
• Number of Poles: 2
• Trip Unit Rating: 1800A
• Mounting Mode: Bolt-on
• Dimensions: Height - 5.66 in, Width - 1.96 in, Depth - 4.05 in
• Weight: 3 lb (1.36 kg)
• Operating Temperature: Up to 104 å¡F (40 å¡C)

Material Compliance and Certifications:

• Certifications: UL Listed as High Intensity Discharge (HID) and Heating, Air Conditioning, and Refrigeration (HACR) rated.
• Environmental Compliance: Green Premium‰ã¢ label ensuring compliance with the latest regulations, including RoHS and REACh declarations.
• Sustainability: Designed for low-CO2 impact and circularity, supporting sustainable practices in electrical installations.

Suitability:

• The EGB24050 Circuit Breaker is designed for commercial and industrial environments where reliable electrical protection is paramount. Its compatibility with Square D NF panelboards makes it a versatile choice for new installations and upgrades. Ideal for lighting panels and other critical low-voltage applications, this circuit breaker provides robust protection and ensures continuity of service, making it a preferred choice for electrical professionals.
