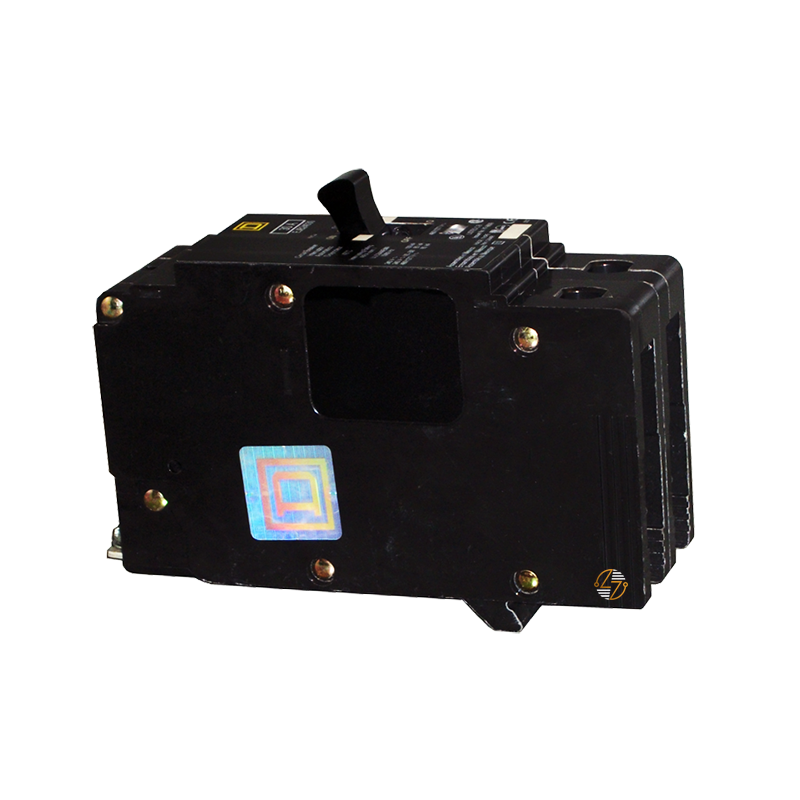

EGB24045 - 45Amp Circuit Breaker

EGB24045 - 45Amp Circuit Breaker

The EGB24045 is a robust and reliable mini circuit breaker from Schneider Electric, designed to provide exceptional protection for low-voltage electronics. Ideal for use in lighting panelboards, this 2-pole, 45A circuit breaker operates at 480Y/277VAC and features a high interrupting capacity of up to 65kA. Its bolt-on mounting ensures secure installation, making it a trusted choice for both residential and commercial applications.

Key Features and Benefits:

• High Interrupting Capacity: With a maximum interrupt rating of 65kA at 120VAC, the EGB24045 offers superior protection against overloads and short circuits.
• Thermal-Magnetic Trip Unit: Ensures reliable operation and protection, with a trip current of 1800A to handle extreme conditions.
• Compatibility: Directly mounts to NF panelboards, providing seamless integration and reliable performance.
• Durable Construction: Designed for longevity, this circuit breaker withstands rigorous use in demanding environments.

Technical Specifications:

• Rated Current: 45A
• Poles: 2
• Maximum Operating Voltage: 480Y/277V AC
• Interrupt Rating: 65kA at 120V AC, 35kA at 480Y/277V AC
• Connection: Bolt-on mount with aluminum lugs
• Dimensions: Height - 5.66 in (143.76 mm), Width - 1.96 in (49.78 mm), Depth - 4.05 in (102.87 mm)
• Weight: 3 lb (1.36 kg)

Material Compliance and Certifications:

• UL Listed: Certified as High Intensity Discharge (HID) and Heating, Air Conditioning, and Refrigeration (HACR) rated.
• Green Premium‰ã¢ Label: Demonstrates Schneider Electric‰۪s commitment to delivering products with best-in-class environmental performance, including compliance with the latest regulations and transparency on environmental impacts.
• RoHS and REACh Compliance: Ensures the EGB24045 meets stringent environmental and safety standards, contributing to sustainability and safety.

Suitability:

• The EGB24045 is perfectly suited for a variety of applications, particularly in environments requiring reliable protection for lighting systems and other low-voltage electronics. It‰۪s an excellent choice for residential, commercial, and industrial settings, offering peace of mind through its robust construction and advanced safety features. Whether you‰۪re upgrading an existing panelboard or installing a new system, the EGB24045 delivers unmatched performance and reliability.

Explore the EGB24045 Circuit Breaker today and ensure your electrical systems remain safe and efficient with top-tier protection and performance.
