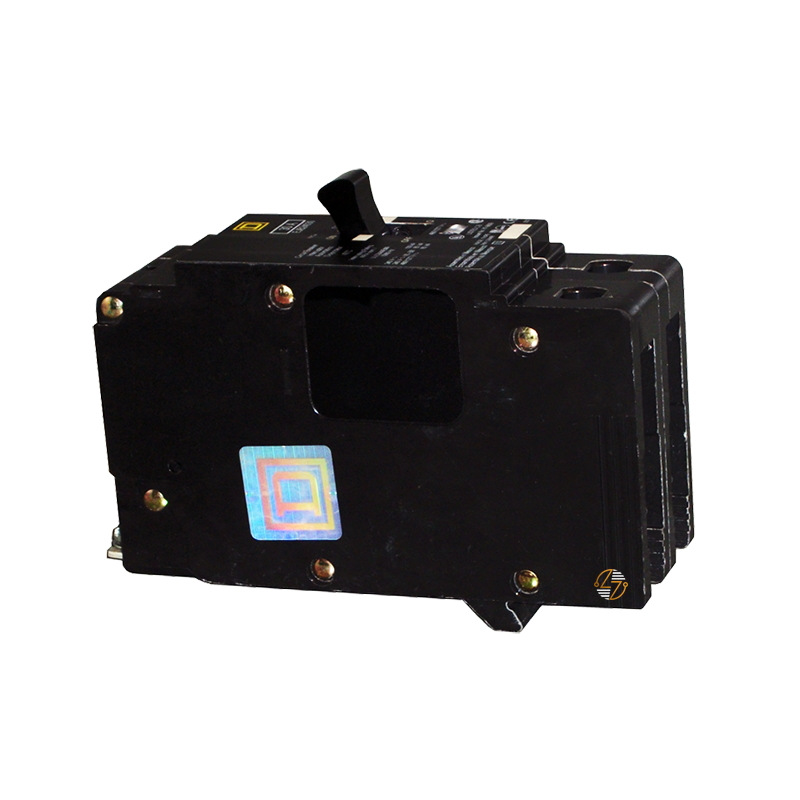

EGB24030 - 30Amp Circuit Breaker

EGB24030 - 30Amp Circuit Breaker

The EGB24030 Miniature Circuit Breaker is an essential component for ensuring the safety and reliability of your electrical systems. With a robust 30A current rating and 2-pole configuration, it operates at a maximum voltage of 480Y/277 VAC and can withstand an impressive interrupting capacity of up to 65 kA at 240 VAC. This E-frame circuit breaker is specifically engineered for bolt-on mounting in Square D NF panelboards, making it an ideal choice for protecting lighting panelboards and low-voltage electronics.

Key Features and Benefits:

• High Interrupting Capacity: Capable of handling up to 65 kA at 240 VAC, ensuring robust protection against overloads and short circuits.
• Thermal-Magnetic Trip Unit: Provides reliable protection by combining both thermal and magnetic trip mechanisms.
• Durable Design: Engineered to last up to 20 years, offering long-term reliability and peace of mind.
• HACR and HID Rated: Meets high industry standards for heating, air conditioning, refrigeration, and high-intensity discharge lighting applications.

Technical Specifications:

• Rated Current: 30A
• Poles: 2
• Maximum Operating Voltage: 480Y/277 VAC
• Interrupting Capacity: 65 kA at 120 VAC, 35 kA at 480Y/277 VAC
• Holding Current: 270A
• Trip Current: 875A
• Mounting Type: Bolt-on
• Dimensions: Height: 5.66 in, Width: 1.96 in, Depth: 4.05 in
• Net Weight: 3 lb (1.36 kg)
• UL Listed: Ensures compliance with safety standards for high-intensity discharge applications.

Material Compliance and Certifications:

• Environmental Compliance: Green Premium‰ã¢ label ensuring best-in-class environmental performance and compliance with regulations such as RoHS and REACh.
• Certifications: UL Listed for high-intensity discharge lighting and HVAC applications, ensuring adherence to safety standards.

Suitability:

• This miniature circuit breaker is perfectly suited for protecting low-voltage electronics in commercial and industrial settings. Its bolt-on design ensures a secure fit in Square D NF panelboards, making it a reliable choice for lighting panelboards and other critical applications. With its high interrupting capacity and thermal-magnetic trip unit, the EGB24030 is ideal for environments requiring robust protection against electrical faults.

The EGB24030 Circuit Breaker provides essential protection for your electrical systems, ensuring optimal performance and safety. Discover more about this critical component and secure reliable protection for your infrastructure today.
