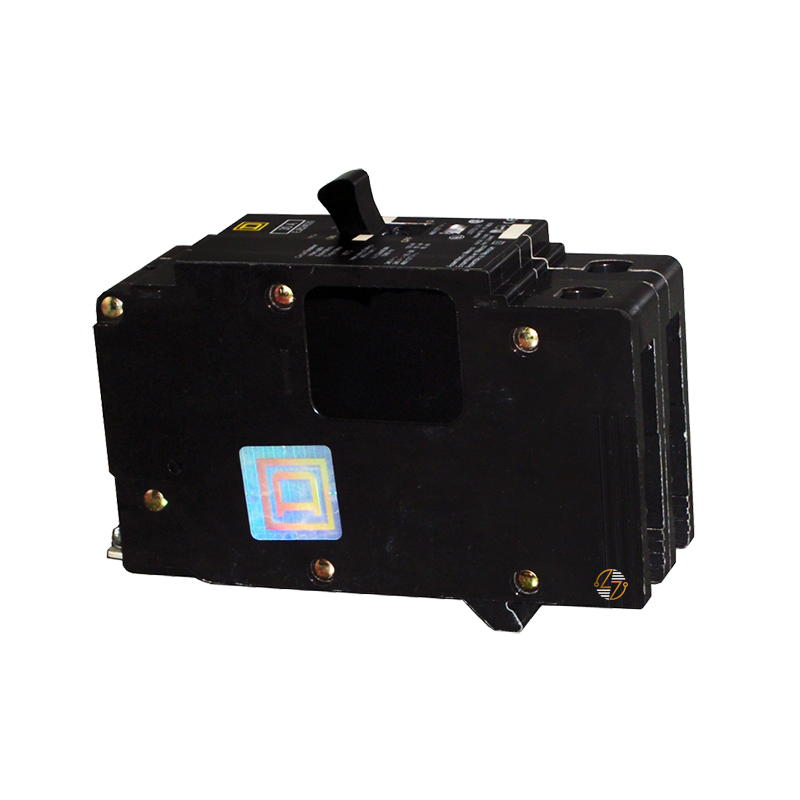

EGB24025 - 25 Amp Circuit Breaker

EGB24025 - 25 Amp Circuit Breaker

The EGB24025 is a high-performance miniature circuit breaker engineered to deliver dependable protection for low‑voltage electrical systems. Built with precision by Schneider Electric, this E‑frame breaker brings peace of mind for homeowners, electricians and facility managers. Whether you’re working on a residential lighting panel, a commercial distribution board, or an industrial control system, this breaker offers long-lasting, dependable safety against overloads and short circuits. Its design focuses on ease of installation and consistent operation — a smart, practical choice for any electrical setup that demands trustworthy circuit protection.

Key Features and Benefits

• High Interrupting Capacity: Rated up to 65 kA at 120/240 VAC, the EGB24025 offers strong defense against short circuits and overload events.
• Longevity Built In: Designed to deliver over two decades of reliable performance, making it a great long-term investment for both overhaul and new‑build installations.
• Bolt‑On Mounting: Mounts securely to compatible NF‑type panelboards, ensuring an easy and stable installation with minimal fuss.
• Thermal‑Magnetic Trip Unit: Provides combined thermal and magnetic protection for comprehensive overload and short circuit protection — safeguarding both equipment and wiring.
• UL Listed: Meets rigorous U.S. safety standards, giving you confidence in compliance and performance under demanding conditions.

Technical Specifications

• Current Rating: 25 Amps
• Poles: 2
• Voltage Rating: 480Y/277 VAC
• Interrupting Ratings:
  • 65 kA at 120/240 VAC
  • 35 kA at 480Y/277 VAC
• Dimensions:
  • Height – 5.66 in
  • Width – 1.96 in
  • Depth – 4.05 in
• Weight: 3 lb (1.36 kg)
• Mounting Mode: Bolt‑on (for NF‑type panelboards)
• Trip Current: 875 A
• Holding Current: 270 A

Material Compliance and Certifications

• UL Listed: The EGB24025 is UL‑listed for usage in heating, air conditioning, refrigeration (HACR), and high‑intensity discharge (HID) applications, ensuring it adheres to strict safety and performance guidelines.
• RoHS Compliance: It is also RoHS‑compliant, meaning it is manufactured without hazardous substances.
• Green Certification: Additionally, the product carries a green certification label to reflect the manufacturer’s commitment to environmental responsibility and transparent material reporting.

Where It Works Best

• This circuit breaker shines in lighting panelboards and low-voltage electronic systems. It’s equally suited for residential wiring jobs, commercial electrical panels, or industrial control setups. If you need reliable protection from overloads or short circuits — whether for a home renovation, new build, or facility upgrade — the EGB24025 offers a dependable, long-lasting solution that installs cleanly and runs consistently for years.
