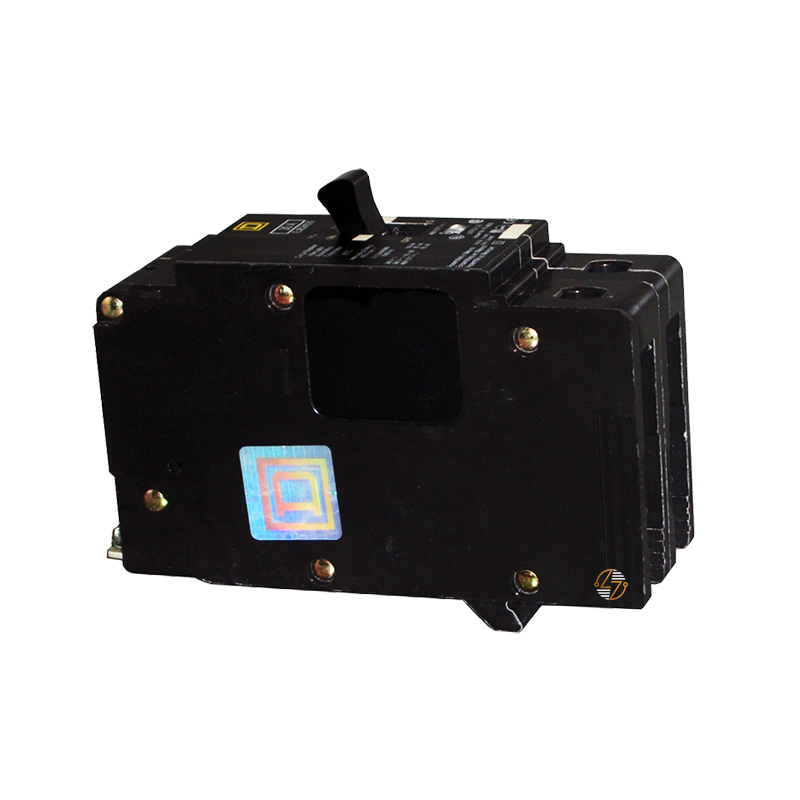

EGB24020 - 20Amp Circuit Breaker

EGB24020 - 20Amp Circuit Breaker

The EGB24020 Miniature Circuit Breaker is a robust and reliable solution designed for superior protection of low-voltage electronics. With a compact E-Frame design, it directly mounts to NF panelboards, ensuring seamless integration and lasting performance for up to 20 years.

Key Features and Benefits:

• High Interrupt Capacity: The EGB24020 offers a maximum interrupt rating of 65 kA at 120 VAC, ensuring high reliability and safety in the event of a short circuit.
• Thermal-Magnetic Trip Unit: Provides precise and dependable protection against overloads and short circuits.
• HACR and HID Rated: Versatile usage across various applications including heating, air conditioning, and refrigeration.
• Bolt-On Mounting: Ensures secure installation and compatibility with NF panelboards.
• Long Lifespan: Engineered to deliver up to 20 years of reliable performance.

Technical Specifications:

• Rated Current: 20 A
• Poles: 2
• Voltage Rating: 480Y/277 VAC
• Breaking Capacity: 65 kA at 120 VAC, 35 kA at 277 VAC, 65 kA at 240 VAC, and 35 kA at 480Y/277 VAC
• Trip Unit Rating: 875 A
• Holding Current: 270 A
• Mounting: Bolt-on
• Dimensions: Height: 5.66 in, Width: 1.96 in, Depth: 4.05 in
• Weight: 3 lb (1.36 kg)

Material Compliance and Certifications:

• UL Listed: Ensures adherence to safety and quality standards.
• RoHS Compliant: Free from hazardous substances, meeting environmental regulations.
• Green Premium‰ã¢ Label: Demonstrates Schneider Electric‰۪s commitment to sustainability, with compliance to the latest environmental regulations.

Suitability:

• The EGB24020 Circuit Breaker is particularly suited for commercial and industrial applications where dependable protection of lighting panelboards is critical. Its high interrupt capacity and thermal-magnetic trip unit make it an excellent choice for environments that demand robust and reliable circuit protection, such as office buildings, manufacturing facilities, and healthcare institutions.

Ensure your electrical systems remain safe and efficient with the EGB24020 Circuit Breaker, a reliable choice for protecting critical infrastructure in commercial and industrial settings.
