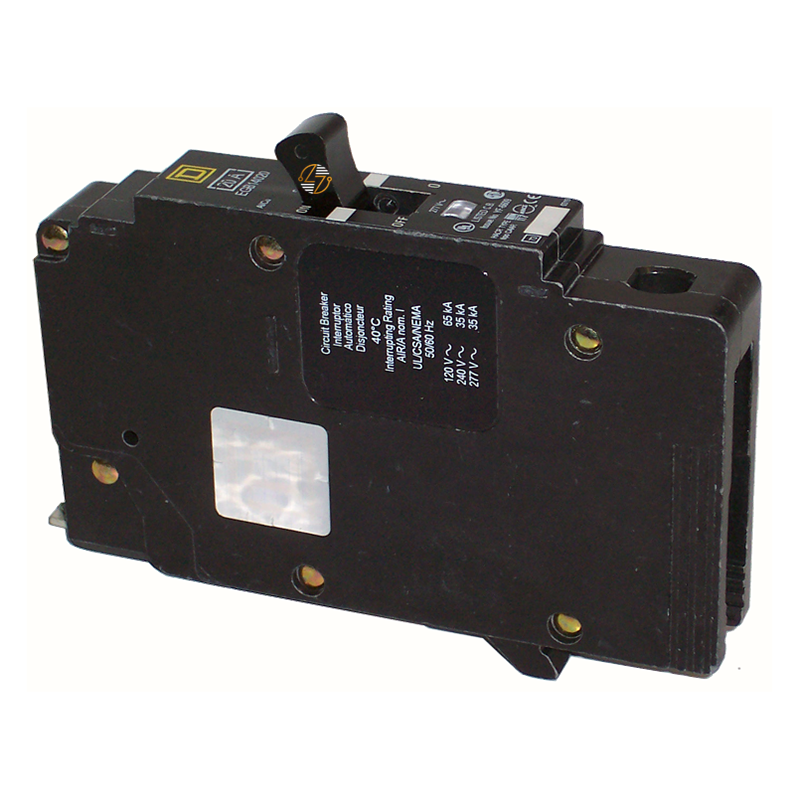

EGB14050 - 50A Circuit Breaker

EGB14050 50A Circuit Breaker

The EGB14050 Mini Circuit Breaker is an essential component for your electrical systems, designed to ensure superior protection and reliability. Manufactured by Schneider Electric, this circuit breaker is optimized for use in Square D NF Panelboards, offering robust features that guarantee both overload and short-circuit protection. With a current rating of 50A and a single-pole design, the EGB14050 is engineered to meet the highest standards of safety and performance.

Key Features and Benefits:

• Superior Protection: Equipped with a thermal-magnetic trip unit, this circuit breaker ensures immediate response to overload and short-circuit conditions, enhancing the safety of your electrical system.
• High Interrupt Capacity: Boasting a 65 kA maximum interrupt rating at 120 VAC, it efficiently handles high fault currents, making it ideal for demanding applications.
• User-Friendly Design: The bolt-on mounting mode allows for easy installation and secure attachment, ensuring a reliable connection within your panelboard.
• Trip Indicator: Includes a local signalling feature with a trip indicator, providing clear and immediate notification of a tripped breaker for quick maintenance.
• Versatile Application: HACR and HID rated, making it suitable for heating, air conditioning, refrigeration, and high-intensity discharge lighting applications.

Technical Specifications:

• Current Rating: 50A
• Number of Poles: 1
• Maximum Operating Voltage: 277 VAC
• Interrupt Rating: 65 kA at 120 VAC, 35 kA at 277 VAC and 240 VAC, 35 kA at 120/240 VAC
• Trip Unit Technology: Thermal-magnetic
• Holding Current: 630A
• Trip Current: 1800A
• Dimensions: Height - 5.66 in, Width - 0.98 in, Depth - 4.05 in
• Weight: 2 lb (0.91 kg)

Material Compliance and Certifications:

• UL Listed: Certified as High Intensity Discharge and HACR rated, ensuring it meets rigorous safety and performance standards.
• Green Premium‰ã¢ Label: Signifies Schneider Electric's commitment to delivering environmentally friendly products with transparent environmental impact data.

Suitability:

• The EGB14050 Mini Circuit Breaker is perfect for a wide range of applications, particularly in lighting panelboards where reliable protection and high interrupt capacity are crucial. Its design and features make it an excellent choice for both residential and commercial electrical systems, providing peace of mind and operational efficiency.

Explore more about the EGB14050 Mini Circuit Breaker today and ensure your electrical systems remain safe and efficient with this trusted protection solution.
