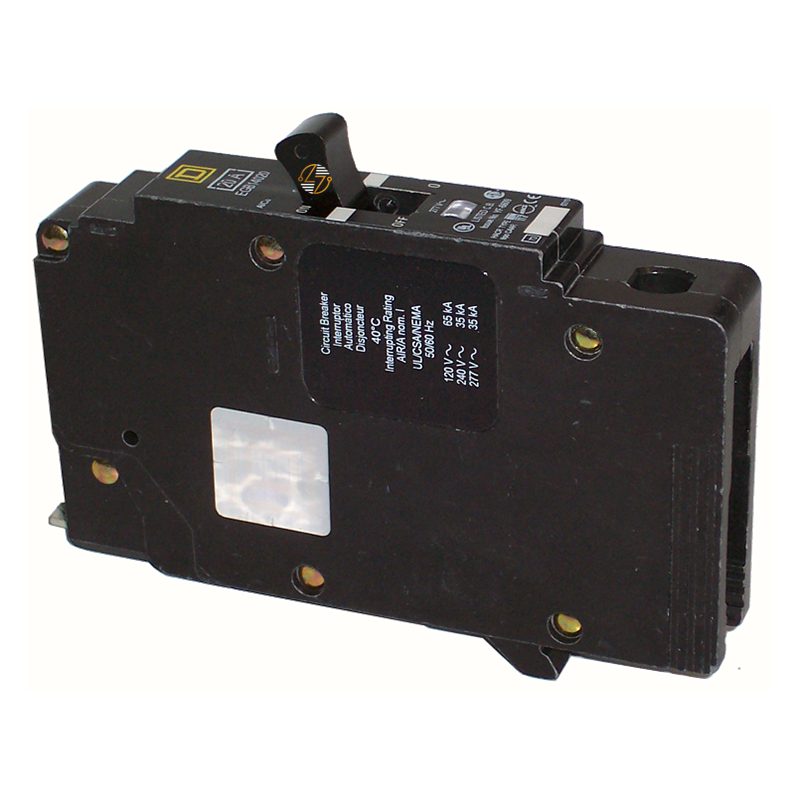

EGB14040 - 40 Amp Circuit Breaker

EGB14040 - 40 Amp Circuit Breaker

The EGB14040 Mini Circuit Breaker from Schneider Electric delivers dependable, high‑performance protection for lighting and low‑voltage panelboards. As a 1‑pole, 40-amp circuit breaker designed for 277 VAC service, this compact bolt‑on E‑Frame unit blends a space‑saving profile with serious protection capability. Inside, a thermal‑magnetic trip unit reacts quickly to overloads or short circuits—giving you consistent safety coverage for lighting loads and other low‑voltage electronics. Whether you’re outfitting a small commercial lighting board or upgrading a residential panel, the EGB14040 offers a reliable, long-lasting solution you can count on.

Key Features and Benefits

• Compact, space‑saving design: The slim E‑Frame form factor installs neatly in standard NF-style panelboards, making it easy to upgrade or expand your lighting circuits without re‑engineering your layout.
• High interrupt capacity: With a breaking capacity of 65 kA at 120 VAC (and 35 kA at 277 VAC), this breaker ensures strong protection against overloads and short circuits—giving your system a dependable safety margin.
• Thermal‑magnetic trip mechanism: Combines both thermal and magnetic trip functions to handle both overload conditions and fault currents quickly and accurately.
• Bolt‑on mount for secure installation: The bolt‑on configuration keeps the breaker firmly in place, reducing the risk of loosening or malfunction over time—ideal for panelboards in busy or vibration-prone environments.

Technical Specifications

• Product Family: 125 A‑Frame EDB / EGB / EJB
• Series / Device Short Name: EGB (E‑Frame module)
• Line Rated Current: 40 A
• Maximum Operating Voltage: 277 VAC
• Interrupt Rating:
  • 65 kA at 120 VAC
  • 35 kA at 277 VAC
• Trip Unit: Thermal‑magnetic
• Mounting Type: Bolt‑on
• Compatible Wire Sizes: AWG 14 to AWG 2/0 (copper); AWG 12 to AWG 2/0 (aluminum)
• Dimensions:
  • Height: 5.66 in (143.8 mm)
  • Width: 0.98 in (24.9 mm)
  • Depth: 4.05 in (102.9 mm)
• Net Weight: 2 lb (0.91 kg)

Material Compliance and Certifications

• Certifications: The EGB14040 is UL‑listed and rated for High-Intensity Discharge (HID) lighting as well as HVAC circuits, ensuring compliance with common wiring standards.
• Environmental Standards: It is also built to meet RoHS and REACH environmental regulations, reflecting a commitment to safer, more eco-conscious manufacturing practices.
• Green Premium: The product carries the Schneider Electric “Green Premium” designation, signifying transparent reporting of environmental impact and adherence to modern safety and sustainability standards.

Where It Works Best

• This circuit breaker is best suited for lighting panelboards in residential buildings, commercial offices, retail spaces, churches, or small industrial facilities. It’s also well‑suited for low‑voltage HVAC or control circuits, making it a versatile choice for any installation where compact form factor and reliable protection are priorities. If you need a dependable, easy-to-install 40 Amp breaker that fits tight spaces while safeguarding your lighting or low-voltage systems, the EGB14040 is a solid fit.
