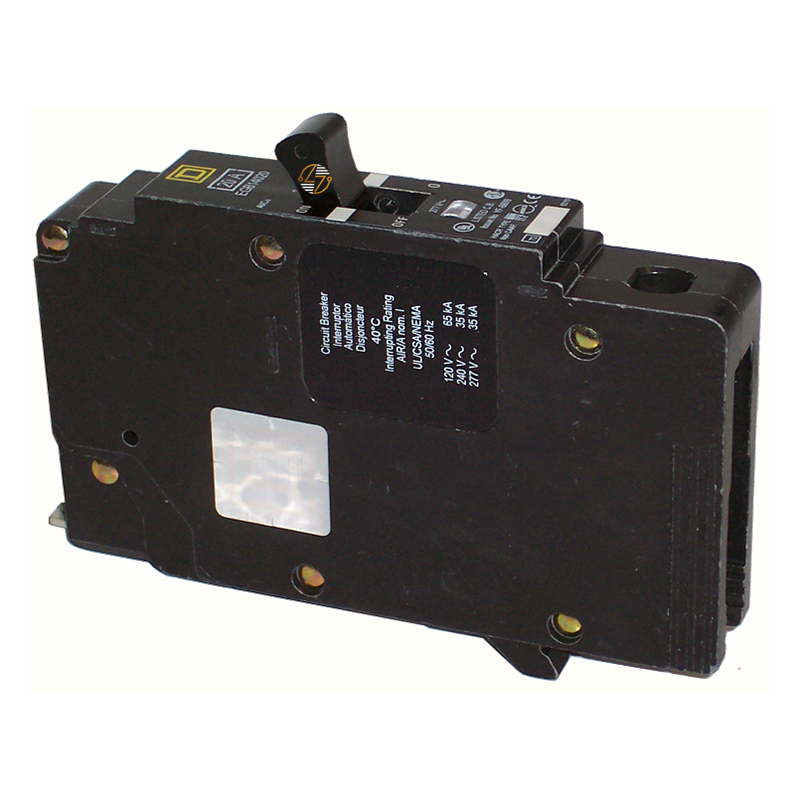

EGB14030 - 30Amp Circuit Breaker

EGB14030 - 30Amp Circuit Breaker

The EGB14030 is a bolt-on mount breaker specifically crafted for NF panelboards, ensuring seamless integration and durable performance. With a lifespan of 20 years, it stands as a testament to quality and longevity, making it a smart investment for safeguarding your lighting panelboards.

Key Features and Benefits:

• High Interrupt Rating: 65 kA at 120 VAC ensures robust protection against high fault currents.
• Durable Design: Engineered to last 20 years, offering long-term reliability.
• Bolt-On Mount: Ensures secure and stable installation in NF panelboards.
• Thermal-Magnetic Trip Unit: Provides reliable overload and short-circuit protection.

Technical Specifications:

• Range of Product: 125 A Frame EDB-EGB-EJB
• Product Type: Miniature circuit-breaker
• Device Short Name: EGB
• Module Type: E-Frame
• Trip Unit Rating: 875 A
• Line Rated Current: 30 A
• Maximum Operating Voltage: 277 V AC
• AWG Gauge: 12 to 6 for aluminum, 14 to 6 for copper
• Breaking Capacity: 65 kA at 120 VAC, 35 kA at 277 VAC
• Mounting Mode: Bolt-on
• Number of Poles: 1
• Height: 5.66 inches
• Width: 0.98 inches
• Depth: 4.05 inches
• Net Weight: 2 lbs (0.91 kg)
• Ambient Air Temperature for Operation: 104å¡F (40å¡C)

Material Compliance and Certifications:

• Green Premium‰ã¢ Label: Ensures best-in-class environmental performance with compliance to latest regulations and transparency on environmental impacts.
• RoHS Compliance: Mercury-free and meets the EU RoHS Directive.
• UL Listed: Recognized for High Intensity Discharge and HACR rated, ensuring adherence to high safety standards.
• REACh Regulation: Fully compliant, ensuring minimal environmental impact.

Suitability:

• The EGB14030 circuit breaker is ideal for use in lighting panelboards and NF panelboards, providing exceptional protection for low-voltage electronic circuits. Its high breaking capacity and durable design make it suitable for a wide range of commercial and residential applications, ensuring your electrical systems are safeguarded against overloads and short circuits.

The EGB14030 Circuit Breaker offers reliable and long-lasting protection for your electrical infrastructure. Explore its superior features today and secure your critical systems with peace of mind.
