EGB14020 - 20 Amp Circuit Breaker

EGB14020 - 20 Amp Circuit Breaker

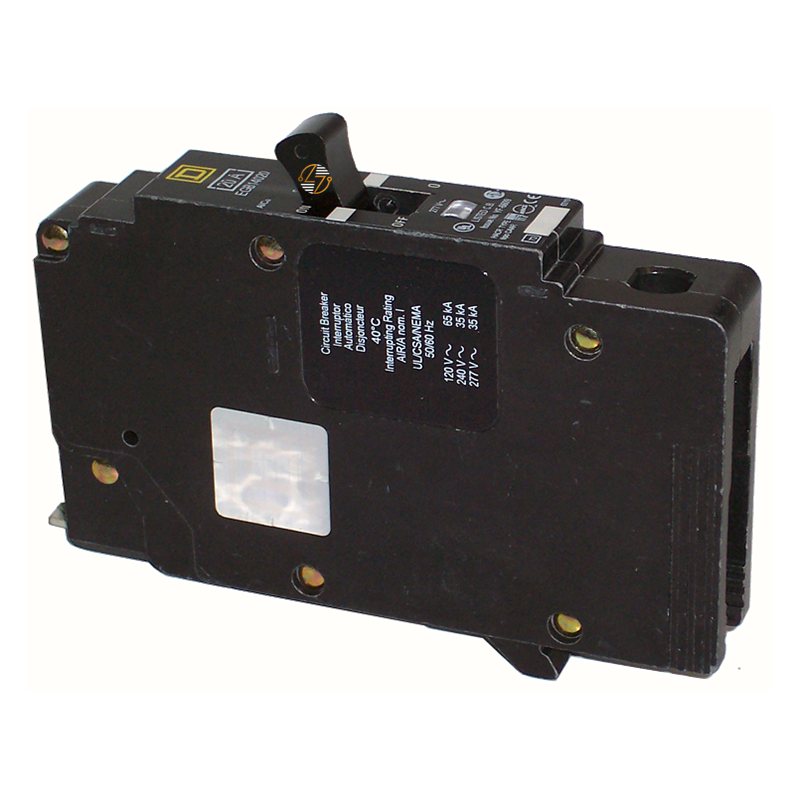

The Square D EGB14020 is a 20 amp, 1-pole circuit breaker designed for reliable protection in commercial lighting panels and electrical distribution systems. Built for use in Square D NF panelboards, this breaker helps protect your circuits from overloads and short circuits while maintaining steady performance in everyday applications. Its compact bolt-on design allows for secure installation without taking up unnecessary panel space.

The thermal-magnetic trip system responds to both overload conditions and sudden faults, helping protect connected equipment when problems occur. A built-in trip indicator also makes it easier to identify when the breaker has tripped, which can help speed up troubleshooting and maintenance. With strong interrupting ratings and support for both copper and aluminum wiring, the EGB14020 is a practical choice for lighting systems, HVAC equipment, and branch circuit protection.

Key Features and Benefits

• 20 amp, 1-pole circuit breaker
• Rated for 277VAC applications
• Thermal-magnetic trip protection
• Built-in trip indicator
• Bolt-on mounting design
• High interrupting capacity
• Compatible with copper and aluminum conductors
• Designed for Square D NF panelboards
• HACR and HID rated


Technical Specifications

• Manufacturer: Square D by Schneider Electric

• Catalog Number: EGB14020

• Product Type: Miniature Circuit Breaker

• Frame Type: E-Frame

• Amperage Rating: 20 Amps

• Voltage Rating: 277 VAC

• Number of Poles: 1

• Trip Unit Technology: Thermal-Magnetic

• Trip Unit Rating: 875A

• Holding Current: 270A

• Breaking Capacity:
  • 35 kA at 277 VAC
  • 35 kA at 240 VAC
  • 65 kA at 120 VAC
  • 35 kA at 120/240 VAC
• Mounting Style: Bolt-On

• Wire Range:
  • AWG 14–6 Copper
  • AWG 12–6 Aluminum
• Dimensions:
  • Height: 5.66 in
  • Width: 0.98 in
  • Depth: 4.05 in
• Weight: 2 lbs.


Material Compliance and Certifications

• UL Listed
• cULus Certified
• TAA Compliant


Where It Works Best

• Square D NF panelboards
• Commercial lighting systems
• HVAC equipment
• Branch circuit protection
• Industrial control panels
• Electrical distribution systems
