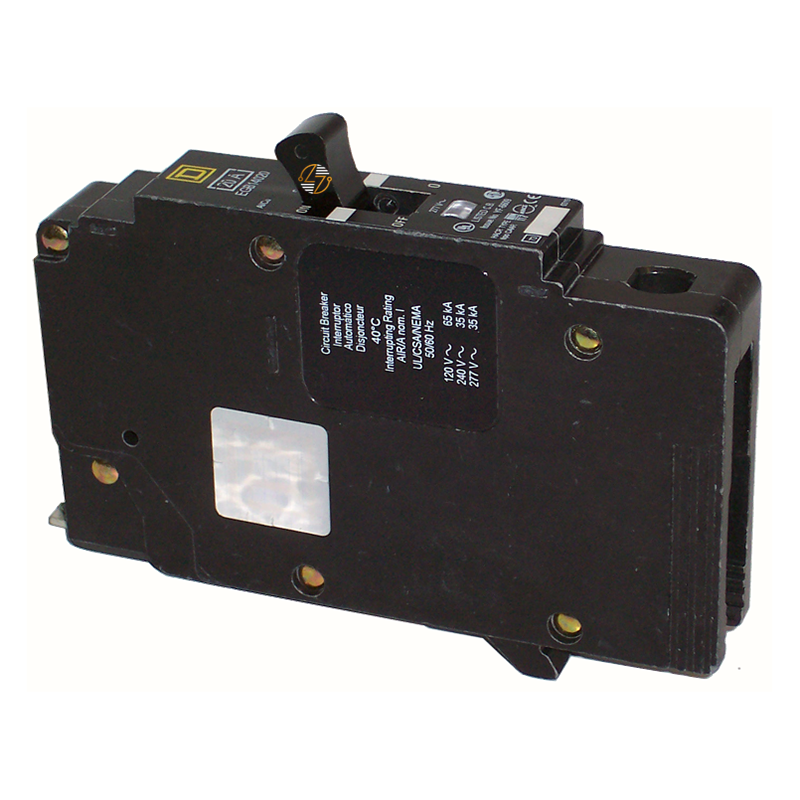

EGB14015 - 15Amp Circuit Breaker

EGB14015 - 15Amp Circuit Breaker

Enhance the reliability and safety of your electrical systems with the EGB14015 Miniature Circuit Breaker. This 15-amp, 1-pole breaker is designed to operate at 277 VAC and offers a maximum interrupt rating of 65 kA at 120 VAC. It is an ideal choice for protecting low-voltage electronics and is specifically engineered for use in Square D NF Panelboards. With its bolt-on mounting design, the EGB14015 provides secure and straightforward installation, making it a preferred choice for lighting panelboards.

Key Features and Benefits:

• Thermal-Magnetic Trip Unit: Provides reliable protection against overloads and short circuits, ensuring the safety of your electrical system.
• High Durability: Designed to last up to 20 years, ensuring long-term reliability and performance.
• High Interrupt Rating: Capable of interrupting up to 65 kA at 120 VAC, offering robust protection for your circuits.
• Bolt-On Mounting: Simplifies installation and ensures a secure connection to the panelboard.

Technical Specifications:

• Ampere Rating: 15 A
• Poles: 1
• Maximum Operating Voltage: 277 VAC
• Interrupt Rating: 65 kA at 120 VAC
• Mounting Mode: Bolt-on
• Trip Unit Technology: Thermal-magnetic
• Dimensions: Height: 5.66 in, Width: 0.98 in, Depth: 4.05 in
• Weight: 2 lb

Material Compliance and Certifications:

• UL Listed: Meets the stringent safety standards set by Underwriters Laboratories.
• RoHS Compliant: Free from hazardous substances, ensuring safety and environmental friendliness.
• Green Premium‰ã¢ Label: Certified for best-in-class environmental performance, complying with the latest regulations and promoting sustainability.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration applications.

Suitability:

• The EGB14015 circuit breaker is ideally suited for use in lighting panelboards within commercial and industrial settings. Its design ensures optimal protection for low-voltage electronics, making it a reliable choice for a wide range of applications. Whether you're upgrading an existing system or installing a new one, this circuit breaker provides the performance and durability needed to maintain a safe and efficient electrical infrastructure.
