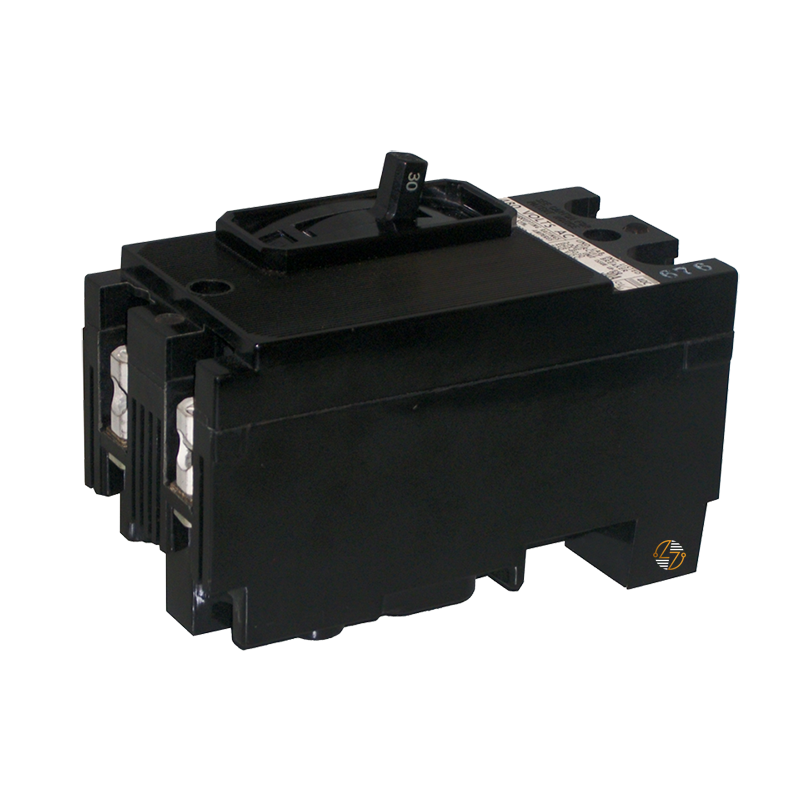

EF2B020 - 20 Amp Circuit Breaker

EF2B020 - 20 Amp Circuit Breaker

When you're maintaining an existing electrical system, choosing the correct replacement breaker is just as important as the installation itself. The EF2B020 is a 20 Amp, 2-pole Type EF2 molded case circuit breaker designed to match compatible electrical equipment without changing the original system layout. Whether you're replacing a worn breaker during scheduled maintenance or restoring a legacy electrical panel, this unit provides the form, fit, and function needed to help keep your equipment operating as intended.

Rated for 20 amps, the EF2B020 offers interrupting capacities of 18 kA at 240 VAC and 14 kA at 480 VAC and 600 VAC, making it suitable for a variety of commercial and industrial electrical systems. Its molded case construction helps protect circuits from overloads and short circuits while fitting into compatible Type EF2 installations.

Key Features and Benefits

• 20 Amp, 2-pole Type EF2 molded case circuit breaker
• Designed as a form, fit, and functional replacement for compatible Type EF2 equipment
• Interrupting ratings of:
  • 18kA @ 240VAC
  • 14kA @ 480VAC
  • 14kA @ 600VAC
• Helps protect electrical circuits from overloads and short circuits
• Molded case construction for enclosed circuit protection
• Supports maintenance and restoration of existing electrical systems
• Designed for operation in ambient temperatures up to 40°C (104°F)
• Built to last in properly installed and maintained applications

Technical Specifications

• Part Number: EF2B020

• Type: EF2

• Amperage: 20 Amps

• Poles: 2

• Interrupting Rating: 18kA @ 240VAC; 14kA @ 480VAC; 14kA @ 600VAC

• Operating Temperature: 40°C (104°F)

• Dimensions:
  • Width: 3.00" W
  • Length: 6.00" H
  • Depth: 3.63" D
• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

The EF2B020 is intended for use in electrical systems that accept Type EF2 molded-case circuit breakers. Installation should be completed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local regulations. Before installation, verify the breaker's amperage, pole configuration, voltage ratings, interrupting capacity, and physical dimensions to ensure compatibility with the existing equipment.

Where It Works Best

The EF2B020 is well suited for replacing compatible breakers in existing electrical distribution systems where preserving the original equipment configuration is important. Typical applications include:

• Commercial electrical panels
• Industrial power distribution equipment
• Manufacturing facilities
• Mechanical and HVAC systems
• Maintenance and repair of legacy electrical installations
• Compatible Type EF2 electrical equipment requiring a 20 Amp, 2-pole circuit breaker
