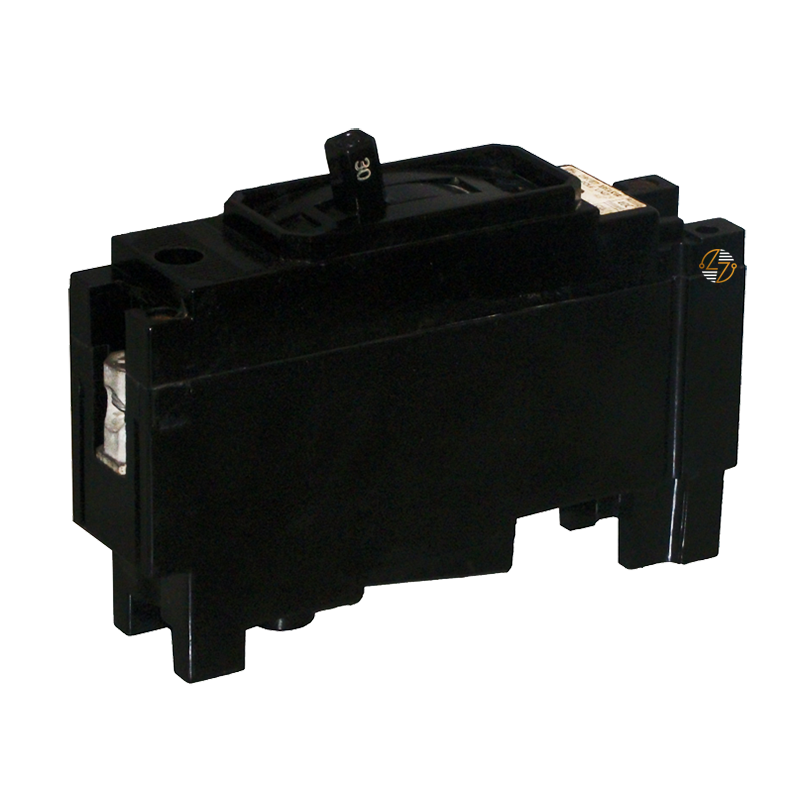

EE1B030 - 30Amp Circuit Breaker

EE1B030 - 30Amp Circuit Breaker

When you need a replacement circuit breaker that matches your existing electrical system, the EE1B030 molded case circuit breaker offers the ratings and configuration required for compatible installations. Designed as a 30 Amp, 1-pole Type EE1 circuit breaker, it provides dependable overcurrent protection for 120VAC branch circuits while helping protect electrical equipment from overloads and short circuits. Its molded case construction is built to last, making it a practical solution for keeping existing electrical systems operating as intended.

Whether you're maintaining commercial equipment, servicing an industrial facility, or replacing a failed breaker during routine maintenance, selecting a breaker with the correct electrical ratings is essential. The EE1B030 is designed for form, fit, and functional replacement in equipment originally engineered for a Type EE1 breaker.

Key Features and Benefits

• 30 Amp current rating for dependable branch circuit protection
• Single-pole (1P) configuration
• Type EE1 molded case circuit breaker
• Rated 10kA A.I.C. at 120VAC
• Helps protect circuits from overloads and short circuits
• Built to last with durable molded case construction
• Designed for form, fit, and functional replacement in compatible equipment
• Calibrated for 40°C (104°F) operating environments
• Compact footprint for installations requiring matching dimensions

Technical Specifications

• Part Number: EE1B030

• Product Type: Molded Case Circuit Breaker

• Type: EE1

• Amperage: 30 Amps

• Poles: 1

• Voltage Rating: 120VAC

• Interrupting Capacity: 10kA @ 120VAC

• Operating Temperature: 40°C (104°F)

• Dimensions:
  • Width: 1.50"
  • Height: 6.00"
  • Depth: 3.63"
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

The EE1B030 is a molded-case circuit breaker designed for use in electrical systems that require a Type EE1 breaker with matching electrical characteristics. It is calibrated for operation at 40°C (104°F) and should be installed only in equipment for which it is intended. For safe operation, installation should be performed by qualified personnel in accordance with the National Electrical Code (NEC), the equipment manufacturer's recommendations, and all applicable local electrical codes. Always confirm compatibility before replacing an existing breaker.

Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing equipment
• Electrical distribution panels
• Branch circuit protection
• Maintenance and repair projects
• Existing legacy electrical systems
• Compatible replacement applications requiring a 30 Amp, 1-pole breaker
