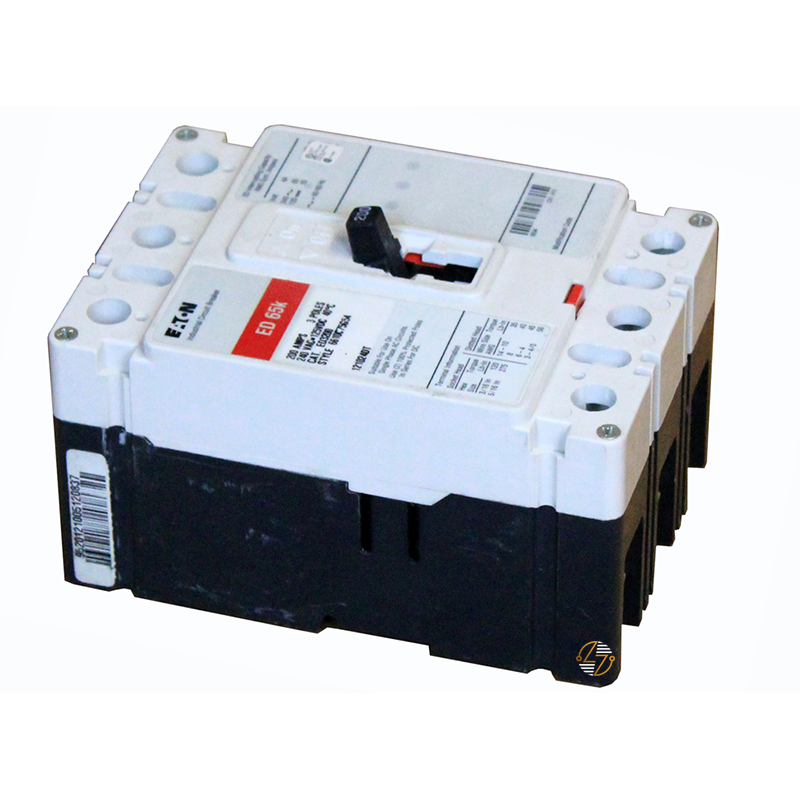

EDB3150 150A Circuit Breaker

EDB3150 150A Circuit Breaker

The Eaton EDB3150 Circuit Breaker is a robust, high-performance solution designed to provide superior electrical protection for both commercial and industrial applications. Part of Eaton's esteemed Series C range, this molded case circuit breaker features an F-frame and a three-pole configuration, ensuring optimal performance and reliability. With a 150A rating and the capacity to handle voltages of up to 240 Vac and 125 Vdc, the EDB3150 is engineered to safeguard your electrical systems against overloads and short circuits, maintaining the integrity and safety of your infrastructure.

Key Features and Benefits:

• High Interrupting Capacity: With a 22 kAIC at 240 Vac, the EDB3150 is capable of interrupting high fault currents, providing enhanced protection for your electrical systems.
• Fixed Thermal and Magnetic Trip Type: Ensures precise and reliable tripping performance, safeguarding against both overloads and short circuits.
• Durability and Reliability: Built to Eaton's high standards, this breaker is UL listed and comes with a one-year warranty from the date of installation or eighteen months from the date of shipment, whichever comes first.

Technical Specifications:

• Amperage Rating: 150A
• Voltage Rating: 240 Vac, 125 Vdc
• Interrupt Rating: 22 kAIC at 240 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Poles: Three-pole
• Frequency: 50/60 Hz
• Dimensions: 3.38 in (L) x 4.13 in (W) x 6 in (H)
• Weight: 3 lbs

Material Compliance and Certifications:

• Certifications: UL Listed, ensuring compliance with rigorous safety and performance standards.

Suitability:

• The Eaton EDB3150 Circuit Breaker is ideally suited for a wide range of applications, including commercial buildings, industrial facilities, and other environments where reliable power protection is paramount. Its robust construction and high interrupting capacity make it an excellent choice for protecting critical electrical infrastructure from the damaging effects of overloads and short circuits.
