EDB14020 - 20 Amp Circuit Breaker

EDB14020 - 20 Amp Circuit Breaker

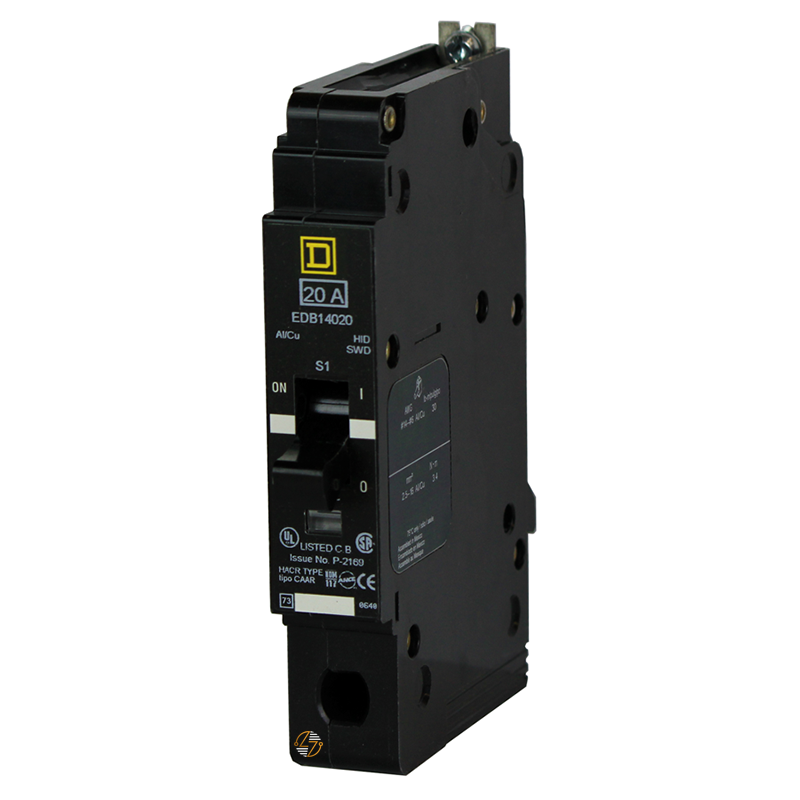

The EDB14020 20A Mini Circuit Breaker is a dependable, high‑performance protective device designed to safeguard your electrical circuits from overloads and short circuits — whether in residential, commercial, or light‑industrial settings. Built with a thermal‑magnetic trip mechanism, it responds quickly to abnormal current surges, helping you maintain safe, stable power distribution. Its compact form factor, simple bolt‑on mounting, and compatibility with a wide range of systems make it an easy, fuss‑free addition to any electrical panel where reliable circuit protection is essential.

Key Features and Benefits

• 20 Amp Current Rating: Ideal for protecting circuits with a steady 20 A load — a common requirement in lighting circuits, small motors, and branch circuits.
• Single‑Pole Design: Offers efficient control over one leg of a circuit — great for space‑constrained panels or standalone circuits.
• Up to 277 VAC Operating Voltage: Handles higher‑voltage applications with ease, making it versatile for different types of electrical systems.
• High Fault-Clearing Capacity: With a breaking capacity of 25 kA at 120 V AC (and 18 kA at 240 V or 277 V AC), it ensures effective interruption of fault currents — minimizing risk to wiring and connected devices.
• Bolt-On Mounting: Provides a stable, secure installation for long-term reliability and reduces the chance of loose connections or maintenance issues.
• Thermal-Magnetic Trip Unit: Combines overload protection (thermal) with instantaneous fault interruption (magnetic).

Technical Specifications

• Line Rated Current: 20 A
• Maximum Operating Voltage: 277 V AC
• Breaking Capacity: 25 kA @ 120 V AC; 18 kA @ 240 V / 277 V AC
• Trip Unit Type: Thermal‑magnetic
• Pole Configuration: Single pole
• Mounting Mode: Bolt-on
• Dimensions (H × W × D): 5.66″ (143.8 mm) × 0.98″ (24.9 mm) × 4.05″ (102.9 mm)
• Net Weight: 2 lb (0.91 kg)

Material Compliance and Certifications

• Certified by cULus and compliant with IEC standards — meets rigorous safety and quality benchmarks.
• Fully RoHS compliant, free of mercury, and aligned with current REACH requirements — ensuring environmentally responsible manufacturing.
• Equipped with a “Green Premium” label, demonstrating compliance with modern environmental and sustainability standards.

Where It Works Best

• The EDB14020 mini breaker excels in protecting standard branch circuits, lighting loads, and small motor circuits in residential homes, office buildings, and light‑industrial environments.
