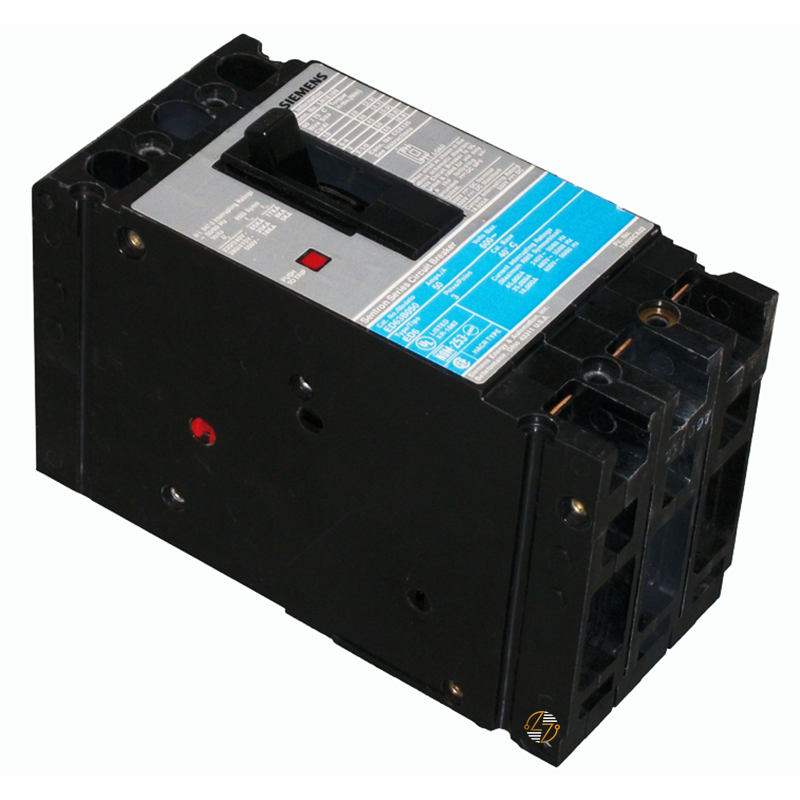

ED63B060 - 60Amp Circuit Breaker

ED63B060 - 60Amp Circuit Breaker

When you need a dependable replacement circuit breaker for an existing Siemens electrical system, the Siemens ED63B060 is designed to deliver the proper fit and function. This 60 Amp, 3-pole molded case circuit breaker is part of the trusted Siemens SENTRON ED Frame family and provides thermal-magnetic protection against both overloads and short circuits in commercial and industrial power distribution systems. Rated for applications up to 600VAC, it's commonly used in panelboards, switchboards, motor control centers, and OEM equipment where maintaining original equipment compatibility is important.

Built to last, the ED63B060 is engineered to meet UL 489 and IEC 60947-2 standards while helping protect valuable electrical equipment from damaging fault conditions. Whether you're replacing a worn breaker during scheduled maintenance or restoring service after a fault, the Siemens ED63B060 provides the correct form, fit, and functional replacement for compatible ED Frame applications.

Key Features and Benefits

• Siemens SENTRON ED Frame molded case circuit breaker
• 60 Amp continuous current rating
• 3-pole configuration for three-phase electrical systems
• Thermal-magnetic trip unit provides overload and short-circuit protection
• Rated for applications up to 600VAC
• 18kAIC interrupting capacity at 600VAC
• 25kAIC interrupting capacity at 480VAC
• Includes factory-installed load-side lugs (LN1E100)
• Accommodates 10 AWG to 1/0 AWG copper or aluminum conductors
• Standard 40°C rated breaker
• Designed as a form, fit, and functional replacement for compatible Siemens ED Frame installations
• Helps maintain the original electrical design and operating characteristics of existing equipment
• Built to last for demanding commercial and industrial environments


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63B060

• Manufacturer Part Number (MFN): ED63B060

• Product Family: SENTRON ED6, 18kAIC, 600VAC

• Product Type: Molded Case Circuit Breaker

• Current Rating: 60 Amps

• Poles: 3

• Voltage Rating: 600VAC

• Trip Unit: Thermal-Magnetic

• Frame Type: ED Frame

• Standard Operating Temperature: 40°C

• Interrupting Rating:
  • 18kAIC @ 600VAC
  • 25kAIC @ 480VAC
• Terminal Type: Load-Side Lugs Only (LN1E100)

• Wire Range: 10 AWG–1/0 AWG Copper/Aluminum

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Net Weight: 0.328 lb.

• Country of Origin: Mexico

• UPC: 783643209749


Material Compliance and Certifications

The Siemens ED63B060 is manufactured to meet recognized electrical safety and environmental compliance standards for commercial and industrial applications.

• UL 489 Listed
• IEC 60947-2 Compliant
• RoHS Compliant (since March 31, 2009)
• REACH Article 33 Compliant
• WEEE Directive (2012/19/EU) Compliant
• Export Classification: EAR99


Where It Works Best

The Siemens ED63B060 is a great fit for commercial buildings, manufacturing facilities, industrial plants, healthcare campuses, schools, municipal facilities, and other locations that rely on compatible Siemens ED Frame electrical distribution equipment. It's commonly installed in panelboards, switchboards, motor control centers, OEM machinery, and power distribution systems requiring a 60 Amp, 3-pole, 600VAC molded case circuit breaker.
