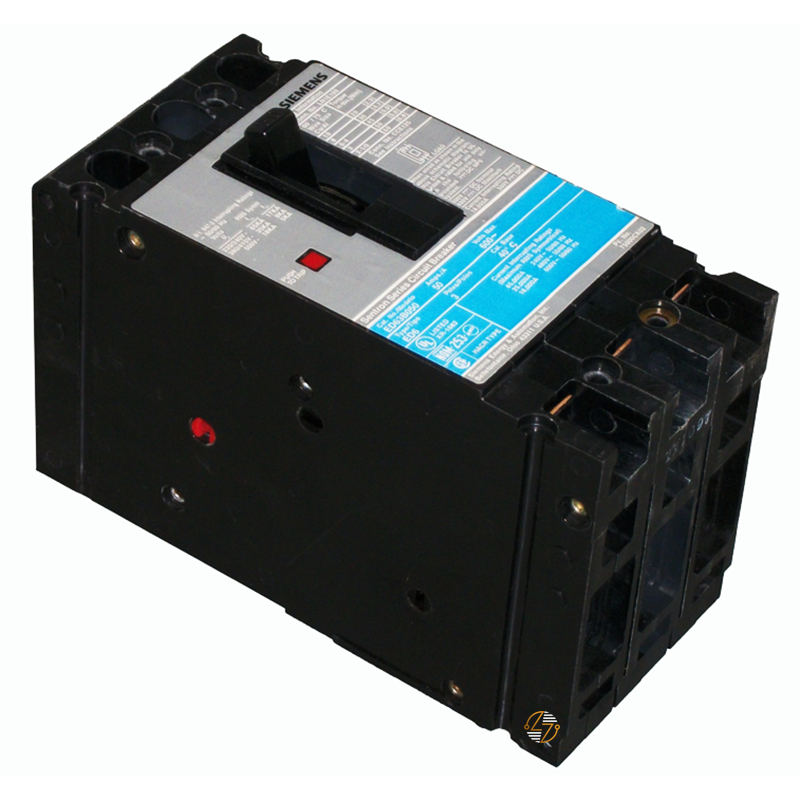

ED63B035L - 35Amp Circuit Breaker

ED63B035L - 35Amp Circuit Breaker

When you're working with existing Siemens electrical equipment, the goal isn’t to reinvent the system—it’s to keep it running safely and consistently. The Siemens ED63B035L is a 35 Amp, 3-pole molded case circuit breaker designed specifically for compatibility with SENTRON ED Frame systems, making it a practical choice for maintenance, repairs, and replacement needs in established installations.

Built for 600 VAC applications, this breaker uses a thermal-magnetic trip unit to protect circuits from overloads and short circuits. It’s rated at 18kA at 600V and 25kA at 480V, providing the electrical strength required for demanding low-voltage distribution environments. With line- and load-side lugs included (LN1E100), installation remains straightforward and flexible, and it supports copper or aluminum conductors from 10 AWG to 1/0 AWG.

Key Features and Benefits

• 35 Amp, 3-pole Siemens SENTRON ED Frame breaker
• Thermal-magnetic protection for overloads and short circuits
• Rated for 600VAC systems
• Interrupting capacity: 18kAIC at 600V / 25kAIC at 480V
• Includes line and load-side lugs (LN1E100)
• Supports 10 AWG–1/0 AWG copper or aluminum wire
• Designed for direct compatibility with Siemens ED Frame equipment
• Helps maintain original system layout and configuration
• Ideal for maintenance and replacement applications in existing systems


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63B035L

• Product Family: SENTRON ED Frame (ED6 series)

• Type: Molded Case Circuit Breaker

• Amperage: 35A

• Poles: 3

• Voltage Rating: 600VAC

• Trip Type: Thermal-Magnetic

• Interrupting Rating: 18kA @ 600V / 25kA @ 480V

• Terminal Type: Line & Load Side Lugs (LN1E100)

• Wire Range: 10 AWG – 1/0 AWG (Cu/Al)

• Dimensions:
  • Width: 3 in.
  • Length: 6.35 in.
  • Depth: 3.92 in.
• Weight: 3.109 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed
• IEC 60947-2 compliant
• RoHS compliant (since 07/18/2019)
• WEEE Directive compliant
• REACH Article 33 compliant


Where It Works Best

• The Siemens ED63B035L fits naturally into commercial, industrial, and institutional power distribution systems that already use Siemens ED Frame breakers. It’s commonly selected for maintenance work, system repairs, and panel servicing where keeping the original equipment configuration is important.
• If your setup depends on a 35A, 3-pole breaker with line and load-side lug connections, this model helps keep everything aligned with the original design—supporting safe operation in existing low-voltage
