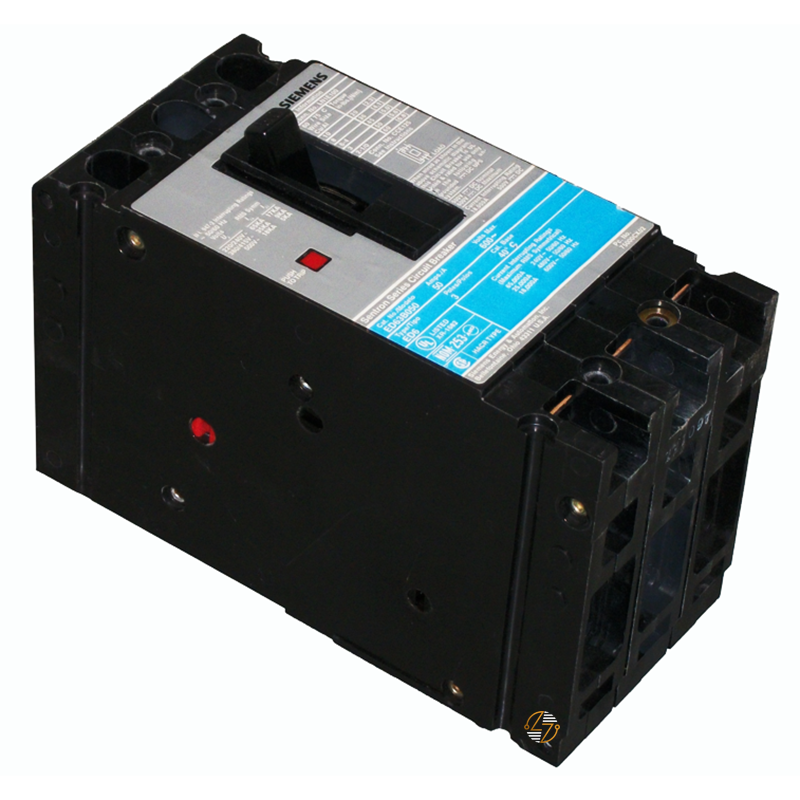

ED63B035 - 35Amp Circuit Breaker

ED63B035 - 35Amp Circuit Breaker

Finding the right replacement circuit breaker is about more than matching the amperage—it also means maintaining the original form, fit, and function of your electrical distribution system. The Siemens ED63B035 is a 35 Amp, 3-pole molded case circuit breaker designed for use in compatible Siemens SENTRON ED Frame applications. Equipped with a thermal-magnetic trip unit, it helps protect electrical circuits from overloads and short circuits while meeting the electrical ratings required for many commercial and industrial installations. Whether you're replacing a failed breaker during routine maintenance or keeping an established electrical system operating as originally designed, the Siemens ED63B035 delivers the compatibility and electrical protection needed for dependable service. Like other Siemens SENTRON breakers, it is built to last and manufactured to meet recognized industry standards.

Key Features and Benefits

• Siemens SENTRON ED Frame molded case circuit breaker
• 35 Amp, 3-pole configuration
• Thermal-magnetic trip unit helps protect against overloads and short circuits
• Rated for applications up to 600VAC
• Interrupting capacity of 18kAIC at 600V and 25kAIC at 480V
• Includes load-side lugs (LN1E100)
• Accepts 10 AWG–1/0 AWG copper or aluminum conductors
• Designed as a form, fit, and functional replacement for compatible Siemens ED Frame systems
• Compact footprint helps maintain existing panel layouts
• Built to last for dependable operation in existing electrical distribution systems


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63B035

• Series: SENTRON ED Frame

• Product Family: ED6, 18KAIC, 600VAC

• Circuit Breaker Type: Molded Case Circuit Breaker

• Current Rating: 35 Amps

• Number of Poles: 3

• Voltage Rating: 600VAC

• Trip Unit: Thermal-Magnetic

• Interrupting Capacity: 18kAIC @ 600VAC; 25kAIC @ 480VAC

• Terminal Configuration: Load Side Lugs Only (LN1E100)

• Wire Range: 10 AWG–1/0 AWG Copper/Aluminum

• Dimensions:
  • Width: 3 in.
  • Length: 6.35 in.
  • Depth: 3.92 in.
• Country of Origin: Mexico

• Export Classification: EAR99


Material Compliance and Certifications

• UL 489 Listed
• Complies with IEC 60947-2
• RoHS compliant (since April 2, 2009)
• WEEE Directive (2012/19/EU) compliant
• REACH Article 33 information available from the manufacturer


Where It Works Best

The Siemens ED63B035 is commonly used in commercial buildings, manufacturing facilities, industrial plants, OEM equipment, institutional facilities, and other low-voltage electrical distribution systems that utilize compatible Siemens ED Frame circuit breakers. It's a practical choice when maintaining or repairing existing equipment because it preserves the original panel configuration and electrical ratings without requiring system modifications.
