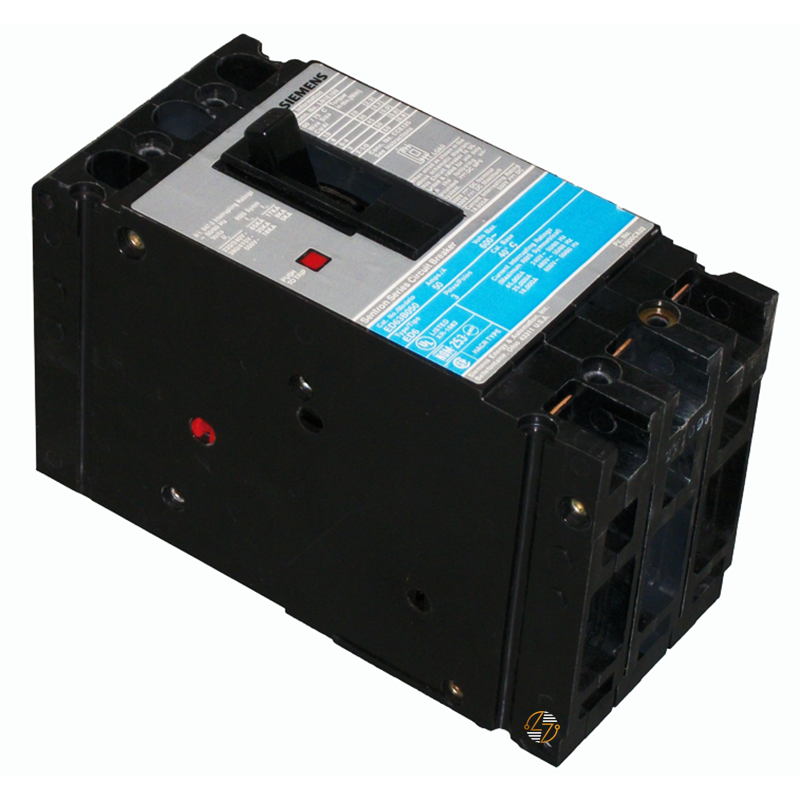

ED63B015L - 15Amp Circuit Breaker

ED63B015L - 15Amp Circuit Breaker

When you're maintaining an existing electrical distribution system, using the correct replacement breaker is essential for preserving the original design and keeping equipment operating as intended. The Siemens ED63B015L is a 3-pole, 15 amp molded case circuit breaker from the trusted SENTRON ED Frame family, engineered for commercial and industrial low-voltage power distribution applications. Featuring a thermal-magnetic trip unit, this breaker provides protection against both overloads and short circuits while delivering the form, fit, and function needed for compatible Siemens ED Frame installations. Manufactured to meet UL 489 and IEC 60947-2 standards, this active Siemens circuit breaker is built to last and remains a dependable choice for maintaining compatible electrical systems in industrial facilities, commercial buildings, OEM equipment, and other demanding environments.

Key Features and Benefits

• Siemens SENTRON ED Frame molded case circuit breaker
• Catalog Number: ED63B015L
• 15 Amp, 3-pole configuration
• Thermal-magnetic trip unit provides overload and short-circuit protection
• Rated for applications up to 600VAC
• Interrupting capacity:
  • 18kAIC at 600VAC
  • 25kAIC at 480VAC
• Includes line and load side lugs (SA1E025) from the factory
• Accepts 14–10 AWG copper and 12–10 AWG aluminum conductors
• Designed as a form, fit, and functional replacement for compatible Siemens ED Frame breaker applications
• Built to last for long-term service in properly maintained electrical systems


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63B015L

• Product Family: SENTRON ED6 Molded Case Circuit Breaker

• Frame Type: ED Frame

• Number of Poles: 3

• Current Rating: 15 Amps

• Voltage Rating: 600VAC

• Frequency: 50/60 Hz

• Trip Unit: Thermal Magnetic

• Interrupting Rating: 18kAIC at 600VAC; 25kAIC at 480VAC

• Terminals: Line and Load Side Lugs (SA1E025)

• Wire Range: 14–10 AWG Copper; 12–10 AWG Aluminum

• Dimensions:
  • Width: 3 in.
  • Length: 6.35 in.
  • Depth: 3.92 in.
• Net Weight: 3.713 lb

• Country of Origin: Mexico

Material Compliance and Certifications

The Siemens ED63B015L is manufactured to comply with recognized industry requirements for low-voltage molded case circuit breakers, helping ensure compatibility and dependable operation in appropriately designed electrical systems.

• Certified to UL 489
• Conforms to IEC 60947-2
• RoHS compliant (since April 2, 2009)
• Subject to WEEE (2012/19/EU) take-back obligations
• Export Classification: EAR99
• Manufactured by Siemens using established quality and environmental compliance standards


Where It Works Best

• Commercial electrical distribution panels
• Industrial switchboards
• Motor control centers (MCCs)
• Manufacturing facilities
• HVAC and mechanical equipment
• Pumps and compressor systems
• OEM machinery and control panels
• Electrical maintenance, repair, and retrofit projects requiring a compatible ED Frame replacement
