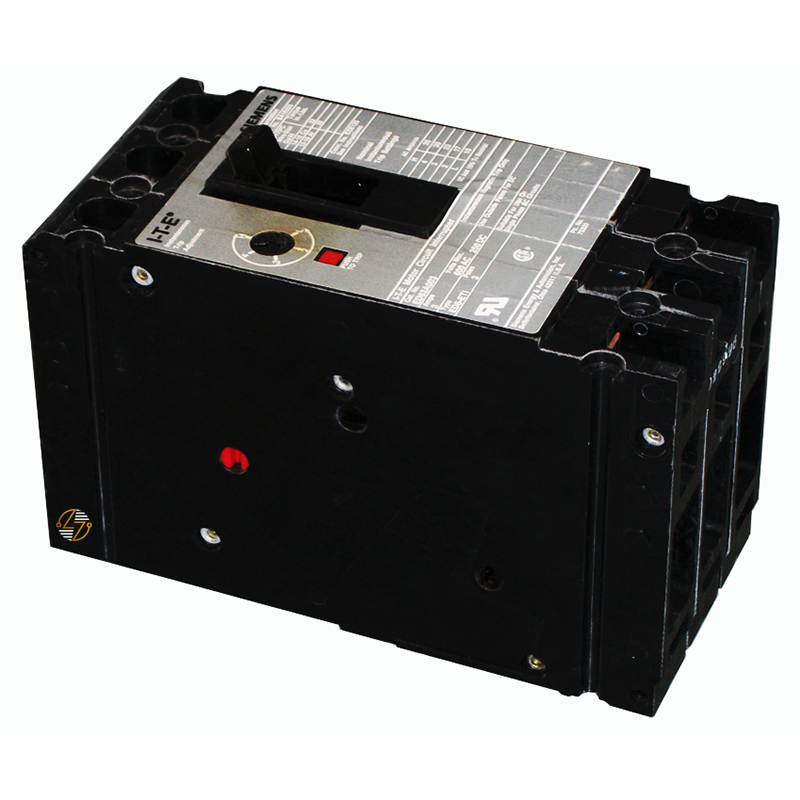

ED63A125 - 125Amp Motor Circuit Protector

ED63A125 - 125Amp Motor Circuit Protector

When you need a replacement magnetic motor circuit protector that matches the original equipment, the Siemens ED63A125 delivers the form, fit, and electrical ratings required for many existing commercial and industrial motor control applications. This 125 Amp, 3-pole SENTRON ED Frame magnetic-only circuit protector is designed for motor branch circuits where overload protection is provided separately, allowing it to respond quickly to short-circuit conditions while working as part of a coordinated protection system.

Rated for 600VAC, the ED63A125 provides an interrupting capacity of 18kA at 600 volts and 25kA at 480 volts, making it well suited for a wide range of industrial equipment, motor control centers, HVAC systems, pumps, compressors, conveyors, and manufacturing machinery.

Whether you're performing scheduled maintenance, replacing a failed unit, or keeping spare inventory on hand, this breaker helps preserve the original design and operation of compatible equipment without requiring changes to the system.

Key Features and Benefits

• Siemens SENTRON ED Frame magnetic-only motor circuit protector
• 125 Amp, 3-pole configuration for motor branch circuit protection
• Magnetic trip unit provides rapid response to short-circuit faults
• Rated for 600VAC electrical systems
• 18kA interrupting capacity at 600VAC
• 25kA interrupting capacity at 480VAC
• Includes load lugs only (TA1E6125)
• Accepts 3 AWG to 3/0 AWG copper conductors and 1 AWG to 2/0 AWG aluminum conductors
• Designed as a form, fit, and function replacement for compatible Siemens ED Frame installations
• Built to last for long-term service in properly installed applications


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A125

• Manufacturer Part Number (MFN): ED63A125

• Product Family: SENTRON Magnetic Only ETI Motor Circuit Protectors

• Product Type: Magnetic Motor Circuit Protector

• Frame Type: ED Frame

• Poles: 3

• Current Rating: 125 Amps

• Voltage Rating: 600VAC

• Trip Unit: Magnetic Only

• Interrupting Capacity: 18kA @ 600VAC; 25kA @ 480VAC

• Terminal Configuration: Load Lugs Only (TA1E6125)

• Wire Range (Copper): 3 AWG to 3/0 AWG

• Wire Range (Aluminum): 1 AWG to 2/0 AWG

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Net Weight: 0.379 lb.

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A125 is manufactured to meet UL 489 and IEC 60947-2 standards for molded case circuit breakers and motor circuit protectors. It is RoHS compliant (since April 2, 2009) and supports WEEE (2012/19/EU) environmental requirements. The product is also classified under ECCN EAR99 for export control. These certifications help ensure compatibility with recognized electrical safety and environmental standards for commercial and industrial applications.

Where It Works Best

• Motor control centers (MCCs)
• Industrial manufacturing facilities
• HVAC equipment and mechanical systems
• Pump and compressor installations
• Water and wastewater treatment facilities
• Conveyor and material handling systems
• OEM machinery and industrial control panels
• Commercial and industrial electrical distribution systems using compatible Siemens ED Frame equipment
