ED63A100 - 100Amp Motor Circuit Protector

ED63A100 - 100Amp Motor Circuit Protector

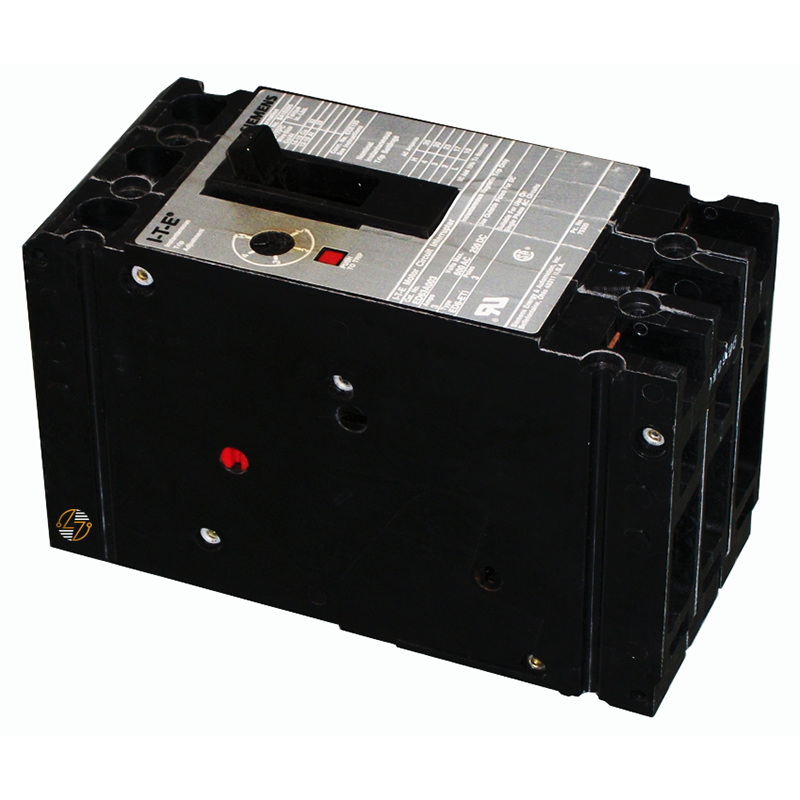

The Siemens ED63A100 is a 3-pole, 100-amp magnetic-only motor circuit protector designed for motor branch circuit applications where overload protection is provided separately. As part of the trusted Siemens SENTRON ED Frame family, it delivers dependable short-circuit protection while maintaining the form, fit, and function needed for compatible existing installations. Rated for 600VAC with an interrupting capacity of 18kA at 600V and 25kA at 480V, this breaker is well suited for a wide range of commercial and industrial electrical systems. Whether you're replacing an existing unit or maintaining Siemens ED Frame equipment, this circuit protector helps preserve the original system design without requiring unnecessary modifications.

Key Features and Benefits

• Siemens SENTRON ED Frame magnetic-only motor circuit protector
• 100 Amp, 3-pole configuration for motor branch circuit applications
• Magnetic trip design provides fast response to short-circuit conditions
• Rated for 600VAC systems
• Interrupting capacity of 18kA at 600V and 25kA at 480V
• Includes load lugs only (LN1E100)
• Accepts 10 AWG to 1/0 AWG copper or aluminum conductors
• Designed for compatibility with existing Siemens ED Frame installations
• Built to meet recognized North American and international electrical standards
• Constructed for long service life in properly installed applications


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A100

• Manufacturer Part Number (MFN): ED63A100

• Product Family: SENTRON Magnetic Only ETI Motor Circuit Protectors

• Product Type: Magnetic Motor Circuit Protector

• Frame Type: ED Frame

• Poles: 3

• Amperage: 100A

• Voltage Rating: 600VAC

• Trip Unit: Magnetic Only

• Interrupting Rating: 18kA @ 600V AC; 25kA @ 480V AC

• Terminal Type: Load Lugs Only (LN1E100)

• Wire Range: 10 AWG – 1/0 AWG Copper/Aluminum

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Net Weight: 3.889 lb

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A100 is manufactured in accordance with UL 489 and IEC 60947-2 standards for molded case circuit breakers. It is RoHS compliant (since April 2, 2009), supports applicable WEEE (2012/19/EU) take-back obligations, and is classified under ECCN EAR99 for export control. These certifications help ensure the breaker is suitable for use in properly specified commercial and industrial electrical systems while meeting recognized environmental and regulatory requirements.

Where It Works Best

• Motor control centers (MCCs)
• Industrial manufacturing facilities
• HVAC equipment and mechanical systems
• Pump and compressor applications
• Water and wastewater treatment plants
• Conveyor and material handling systems
• OEM machinery and industrial control panels
• Commercial electrical distribution systems utilizing compatible Siemens ED Frame equipment
