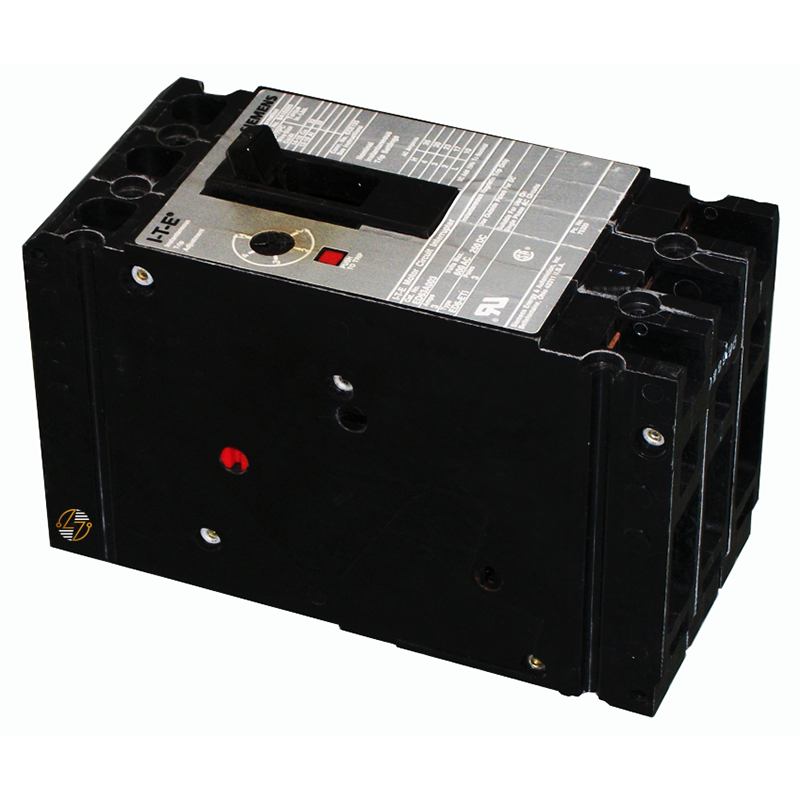

ED63A040 - 40Amp Motor Circuit Protector

ED63A040 - 40Amp Motor Circuit Protector

When you're maintaining or replacing components in an existing Siemens motor control system, the Siemens ED63A040 offers a dependable, like-for-like solution designed to keep operations running smoothly. This 3-pole, 40 Amp magnetic-only motor circuit protector is built for Siemens SENTRON ED Frame applications where motor overload protection is handled separately, and the breaker is responsible for rapid response to short-circuit conditions. Its magnetic-only trip design makes it a practical fit for motor branch circuits in commercial and industrial environments that rely on coordinated protection schemes. Rated for 600VAC, with interrupting ratings of 18kA at 600VAC and 25kA at 480VAC, the ED63A040 is suited for demanding electrical systems where proper coordination and compatibility matter. It comes equipped with load lugs (LN1E100) and supports 10 AWG through 1/0 AWG copper or aluminum conductors, making installation straightforward in compatible Siemens equipment.

Key Features and Benefits

• Designed for compatible Siemens SENTRON ED Frame motor control systems
• 40 Amp, 3-pole magnetic-only motor circuit protection
• Magnetic trip mechanism responds quickly to short-circuit conditions
• Used in systems with separate overload relay protection
• Rated for up to 600VAC applications
• 18kA interrupting capacity at 600VAC
• 25kA interrupting capacity at 480VAC
• Equipped with load lugs only (LN1E100)
• Accepts 10 AWG to 1/0 AWG copper or aluminum conductors
• Built in accordance with UL 489 and IEC 60947-2 standards
• Designed for form, fit, and functional replacement use


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A040

• Manufacturer Part Number (MFN): ED63A040

• Series: SENTRON

• Product Family: Sentron Magnetic Only ETI Motor Circuit Protectors

• Frame Size: ED Frame

• Product Type: Magnetic Motor Circuit Protector

• Amperage: 40A

• Poles: 3

• Voltage Rating: 600VAC

• Trip Type: Magnetic Only

• Interrupting Rating: 18kA @ 600VAC; 25kA @ 480VAC

• Terminal Type: Load Lugs Only (LN1E100)

• Wire Range: 10 AWG – 1/0 AWG (Cu/Al)

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Weight: 0.34 lb

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A040 complies with UL 489 and IEC 60947-2 standards for molded case circuit protection. It is RoHS compliant and subject to WEEE (2012/19/EU) environmental directives where applicable. The product is classified under ECCN EAR99 for export control purposes. Installation should always be performed by qualified personnel in accordance with applicable electrical codes and the requirements of the existing system.

Where It Works Best

• Motor control centers (MCCs)
• Industrial production and manufacturing systems
• Conveyor and material handling equipment
• Pumps, compressors, and blower systems
• HVAC motor control applications
• Water and wastewater treatment facilities
• OEM machinery and equipment panels
• Process control and automation systems
• Compatible Siemens SENTRON ED Frame assemblies
