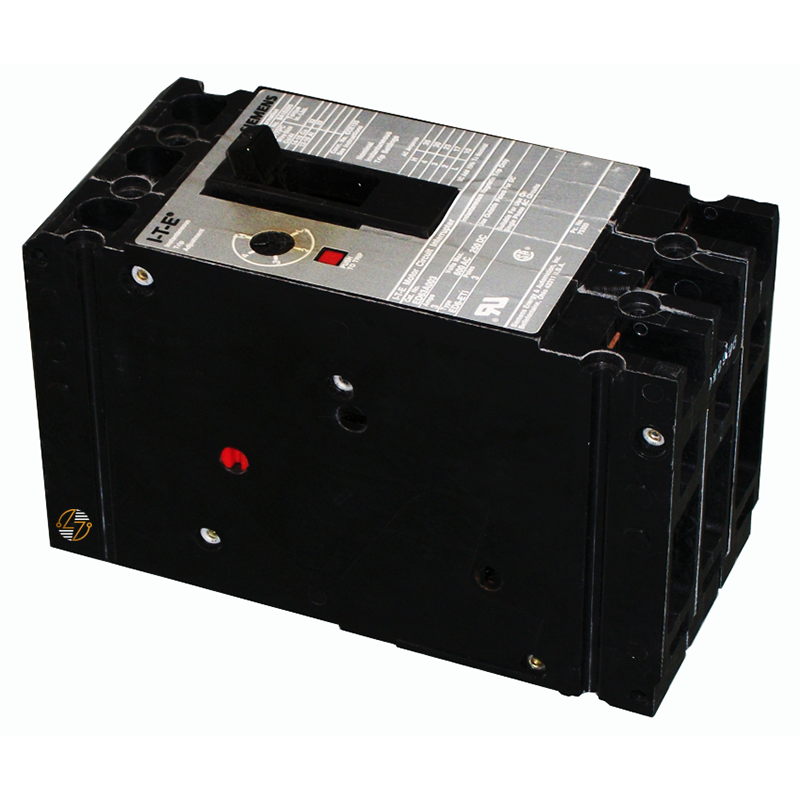

ED63A030 - 30Amp Motor Circuit Protector

ED63A030 - 30Amp Motor Circuit Protector

When you need a compatible replacement for an existing Siemens motor protection system, the Siemens ED63A030 delivers the form, fit, and function required to keep your equipment operating as intended. This 3-pole, 30 Amp magnetic-only motor circuit protector is designed for use in Siemens SENTRON ED Frame applications where short-circuit protection is provided by the breaker and overload protection is handled by a separate overload relay. Its magnetic-only trip design makes it well suited for motor branch circuits in commercial and industrial facilities that rely on coordinated motor protection. Rated for 600VAC, with interrupting capacities of 18kA at 600VAC and 25kA at 480VAC, the ED63A030 is built to last in demanding environments. It comes equipped with load lugs (LN1E100) that accept 10 AWG through 1/0 AWG copper or aluminum conductors, making installation straightforward in compatible equipment.

Key Features and Benefits

• Form, fit, and functional replacement for compatible Siemens SENTRON ED Frame motor control applications
• 30 Amp, 3-pole magnetic-only motor circuit protector
• Instantaneous magnetic trip for short-circuit protection
• Intended for motor branch circuits that use a separate overload relay
• Rated for systems up to 600VAC
• 18kA interrupting capacity at 600VAC
• 25kA interrupting capacity at 480VAC
• Factory-configured with load lugs only (LN1E100)
• Accepts 10 AWG to 1/0 AWG copper or aluminum conductors
• Manufactured to comply with UL 489 and IEC 60947-2 standards
• Built to last for demanding commercial and industrial applications


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A030

• Manufacturer Part Number (MFN): ED63A030

• Series: SENTRON

• Product Family: Sentron Magnetic Only ETI Motor Circuit Protectors

• Frame Size: ED

• Product Type: Magnetic-Only Motor Circuit Protector

• Amperage: 30 Amps

• Poles: 3

• Voltage Rating: 600VAC

• Trip Unit: Magnetic Only

• Interrupting Rating: 18kA @ 600VAC; 25kA @ 480VAC

• Terminal Configuration: Load Lugs Only (LN1E100)

• Wire Range: 10 AWG to 1/0 AWG Copper or Aluminum

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Shipping Weight: 0.348 lb.

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A030 is manufactured in accordance with UL 489 and IEC 60947-2 standards for molded case circuit protection. It is RoHS compliant (since April 2, 2009) and is subject to WEEE (2012/19/EU) take-back obligations where applicable. The product is classified under ECCN EAR99 for export control purposes. Installation should be performed by qualified personnel in accordance with applicable electrical codes, manufacturer instructions, and the requirements of the existing motor control system.

Where It Works Best

• Motor control centers (MCCs)
• Manufacturing and production equipment
• Conveyor systems
• Pump and compressor applications
• HVAC motor control equipment
• Water and wastewater treatment facilities
• Processing plants
• OEM machinery
• Commercial and industrial electrical distribution systems
• Compatible Siemens SENTRON ED Frame equipment
