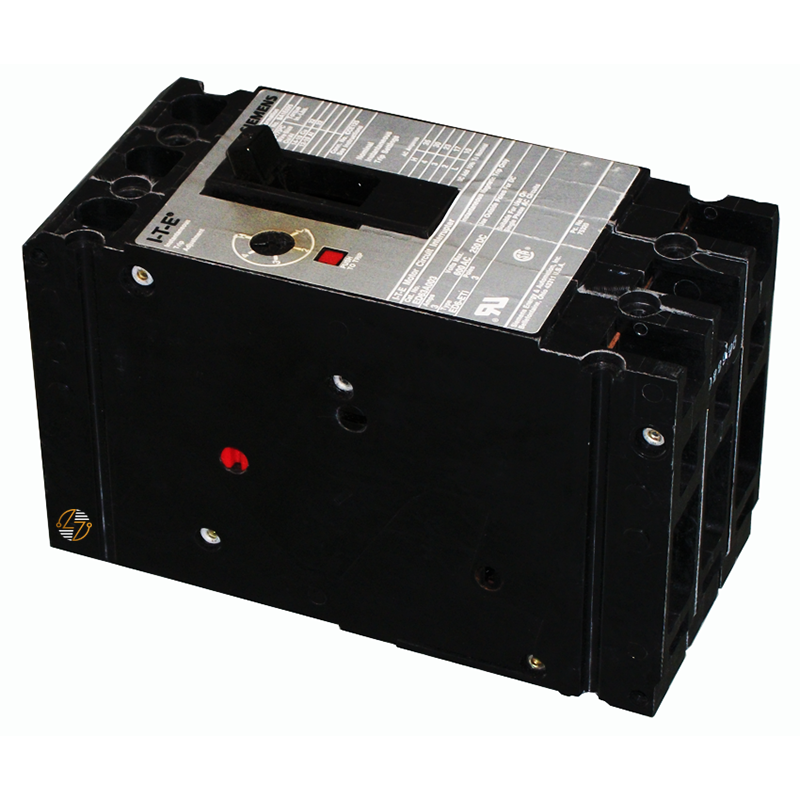

ED63A025 - 25Amp Motor Circuit Protector

ED63A025 - 25Amp Motor Circuit Protector

When maintaining or repairing an existing Siemens motor control system, the Siemens ED63A025 provides the ratings and configuration needed for a compatible replacement. This 3-pole, 25 Amp magnetic-only motor circuit protector is part of the trusted Siemens SENTRON ED Frame family and is designed for motor branch circuits where overload protection is supplied by a separate overload relay. Rather than combining overload and short-circuit protection into a single device, the ED63A025 delivers instantaneous magnetic trip protection to help protect against short circuits while allowing the external overload relay to perform overload protection. This design makes it well suited for industrial motor control systems that were originally engineered with magnetic-only motor circuit protectors. Whether you're replacing a failed unit during routine maintenance or keeping legacy equipment in service, the Siemens ED63A025 offers the form, fit, and functional compatibility needed for many existing installations. Built to last, it helps support the continued operation of compatible motor control equipment.

Key Features and Benefits

• Form, fit, and functional replacement for compatible Siemens SENTRON ED Frame motor circuit protection applications
• 25 Amp, 3-pole magnetic-only motor circuit protector
• Instantaneous magnetic trip for short-circuit protection
• Designed for motor branch circuits with separate overload protection
• Rated for systems up to 600VAC
• 18kA interrupting capacity at 600VAC
• 25kA interrupting capacity at 480VAC
• Includes load lugs only (SA1E025)
• Accepts 14–10 AWG copper and 12–10 AWG aluminum conductors
• Manufactured to meet UL 489 and IEC 60947-2 standards
• Built to last for commercial and industrial environments


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A025

• Manufacturer Part Number (MFN): ED63A025

• Series: SENTRON

• Product Family: Sentron Magnetic Only ETI Motor Circuit Protectors

• Frame Size: ED

• Product Type: Magnetic-Only Motor Circuit Protector

• Amperage: 25 Amps

• Poles: 3

• Voltage Rating: 600VAC

• Trip Unit: Magnetic Only

• Interrupting Rating: 18kA @ 600VAC; 25kA @ 480VAC

• Terminal Configuration: Load Lugs Only (SA1E025)

• Wire Range: 14–10 AWG Copper; 12–10 AWG Aluminum

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Shipping Weight: 0.348 lb.

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A025 is manufactured in accordance with UL 489 and IEC 60947-2 standards for molded case circuit protection. It is RoHS compliant (since April 2, 2009) and falls under applicable WEEE (2012/19/EU) take-back obligations. For export classification, the circuit protector is designated ECCN EAR99. Installation should be completed by qualified electrical personnel in accordance with applicable electrical codes, manufacturer instructions, and the requirements of the specific motor control system.

Where It Works Best

• Motor control centers (MCCs)
• Industrial manufacturing equipment
• Conveyor systems
• Pump and compressor controls
• HVAC motor control applications
• Water and wastewater treatment facilities
• Processing plants
• OEM machinery
• Commercial and industrial electrical systems
• Compatible Siemens panelboards and motor control equipment
