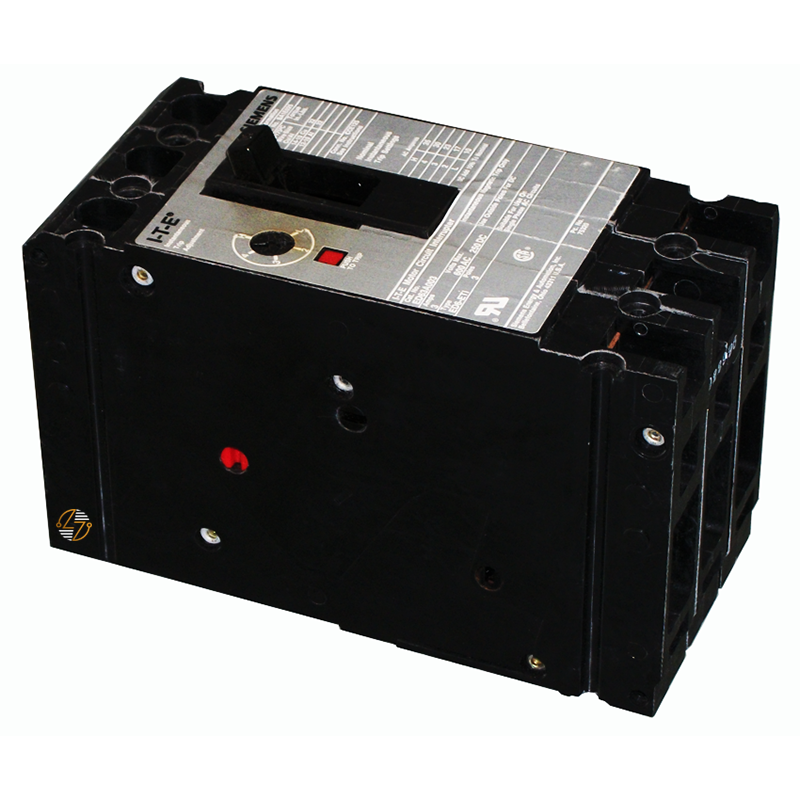

ED63A010 - 10Amp Motor Circuit Protector

ED63A010 - 10Amp Motor Circuit Protector

When you need a compatible replacement for an existing Siemens motor protection system, the Siemens ED63A010 delivers the ratings and configuration required to help keep your equipment operating as designed. This 3-pole, 10 Amp magnetic-only motor circuit protector is part of the trusted Siemens SENTRON ED Frame family and is intended for motor branch circuits where overload protection is provided by a separate overload relay.

Whether you're servicing a motor control center, replacing a failed circuit protector during scheduled maintenance, or keeping legacy equipment in operation, this Siemens motor circuit protector offers the form, fit, and functional compatibility needed for dependable replacement in compatible electrical systems. Built to last, it helps support the continued operation of the equipment you rely on every day.

Key Features and Benefits

• Form, fit, and functional replacement for compatible Siemens SENTRON ED Frame motor circuit protection applications
• 10 Amp, 3-pole magnetic-only motor circuit protector
• Instantaneous magnetic trip for short-circuit protection
• Intended for motor branch circuits where overload protection is provided separately
• Rated for systems up to 600VAC
• 18kA interrupting capacity at 600VAC
• 25kA interrupting capacity at 480VAC
• Includes load lugs only (SA1E025)
• Accepts 14–10 AWG copper and 12–10 AWG aluminum conductors
• Manufactured to meet UL 489 and IEC 60947-2 standards
• Built to last for commercial and industrial environments


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A010

• Manufacturer Part Number (MFN): ED63A010

• Series: SENTRON

• Product Family: Sentron Magnetic Only ETI Motor Circuit Protectors

• Frame Size: ED

• Product Type: Magnetic-Only Motor Circuit Protector

• Amperage: 10 Amps

• Poles: 3

• Voltage Rating: 600VAC

• Trip Unit: Magnetic Only

• Interrupting Rating: 18kA @ 600VAC; 25kA @ 480VAC

• Terminal Configuration: Load Lugs Only (SA1E025)

• Wire Range: 14–10 AWG Copper; 12–10 AWG Aluminum

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Shipping Weight: 3.80 lbs.

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A010 is manufactured in accordance with UL 489 and IEC 60947-2 standards for molded case circuit protection. It is RoHS compliant (since April 2, 2009) and falls under applicable WEEE (2012/19/EU) take-back obligations. For export classification, the breaker is designated ECCN EAR99. Installation should be completed by qualified electrical personnel following applicable codes, manufacturer guidelines, and the requirements of the specific motor control system.

Where It Works Best

• Motor control centers (MCCs)
• Industrial manufacturing equipment
• Conveyor systems
• Pump and compressor controls
• HVAC motor control applications
• Water and wastewater treatment facilities
• Processing plants
• OEM machinery
• Commercial and industrial electrical systems
• Compatible Siemens panelboards and motor control equipment
