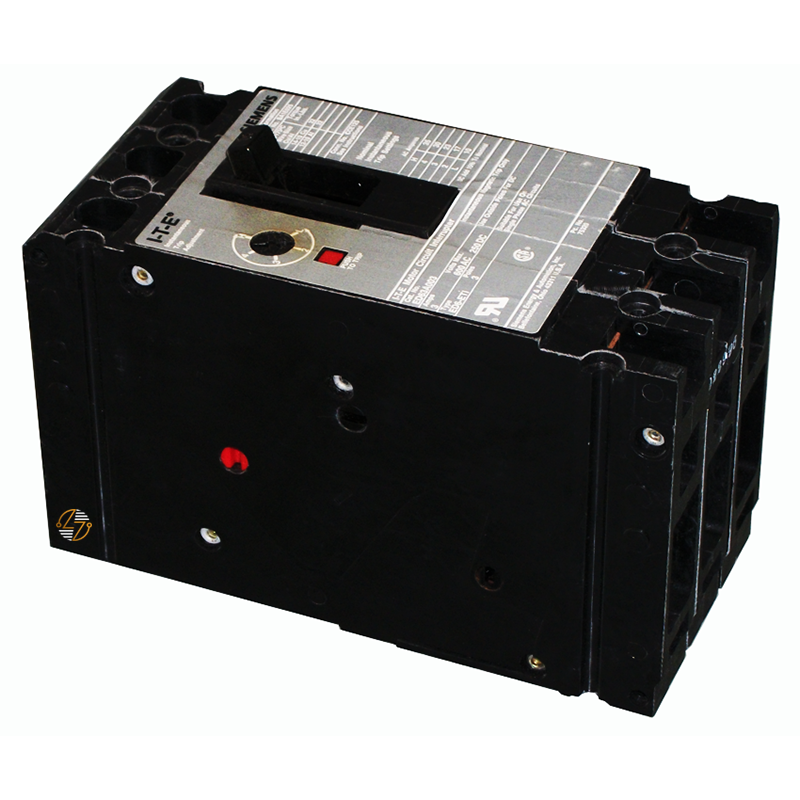

ED63A005 - 5Amp Motor Circuit Protector

ED63A005 - 5Amp Motor Circuit Protector

When you need a compatible replacement for an existing Siemens motor circuit protection system, the Siemens ED63A005 delivers the ratings and configuration required to keep your equipment operating as originally designed. This 3-pole, 5 Amp magnetic-only motor circuit protector is part of the trusted Siemens SENTRON ED Frame family and is intended for motor branch circuit applications where separate overload protection is already provided. Whether you're servicing industrial machinery, maintaining a motor control center, or replacing a failed device during scheduled maintenance, the ED63A005 offers the form, fit, and function needed for a straightforward replacement.

Designed for systems rated up to 600VAC, the Siemens ED63A005 provides instantaneous magnetic trip protection against short circuits while allowing dedicated overload relays to perform their intended function.

Key Features and Benefits

• Form, fit, and functional replacement for compatible Siemens ED Frame SENTRON motor circuit protection applications
• 5 Amp, 3-pole magnetic-only motor circuit protector
• Instantaneous magnetic trip for short-circuit protection in motor branch circuits
• Designed for applications where motor overload protection is provided separately
• Rated for systems up to 600VAC
• 18kA interrupting capacity at 600VAC
• 25kA interrupting capacity at 480VAC
• Includes load lugs only (SA1E025)
• Accepts 14–10 AWG copper and 12–10 AWG aluminum conductors
• Manufactured to comply with UL 489 and IEC 60947-2 standards
• Built to last for commercial and industrial electrical applications


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: ED63A005

• Manufacturer Part Number (MFN): ED63A005

• Series: SENTRON

• Product Family: Sentron Magnetic Only ETI Motor Circuit Protectors

• Frame Size: ED

• Product Type: Magnetic-Only Motor Circuit Protector

• Amperage: 5 Amps

• Poles: 3

• Voltage Rating: 600VAC

• Trip Unit: Magnetic Only

• Interrupting Rating: 18kA @ 600VAC; 25kA @ 480VAC

• Terminal Configuration: Load Lugs Only (SA1E025)

• Wire Range: 14–10 AWG Copper; 12–10 AWG Aluminum

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.35 inches
  • Depth: 3.92 inches
• Approximate Shipping Weight: 3.79 lbs.

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens ED63A005 is manufactured to meet UL 489 and IEC 60947-2 requirements for molded case circuit protection. It is RoHS compliant (since April 2, 2009) and is covered under applicable WEEE (2012/19/EU) take-back obligations. The product is classified under ECCN EAR99 for export control purposes. Installation should be performed by qualified personnel in accordance with applicable electrical codes and the manufacturer's recommendations.

Where It Works Best

• Motor control centers (MCCs)
• Industrial manufacturing facilities
• Processing plants
• Conveyor systems
• Pump and compressor controls
• HVAC equipment
• Water and wastewater treatment facilities
• OEM machinery
• Commercial and industrial electrical systems
• Compatible Siemens panelboards and motor control equipment
